Ignition Cable: Service and Repair
SPARK PLUG WIRESEngine Ignition Components - Exploded View (Part 1):
Engine Ignition Components - Exploded View (Part 2):
Exploded View

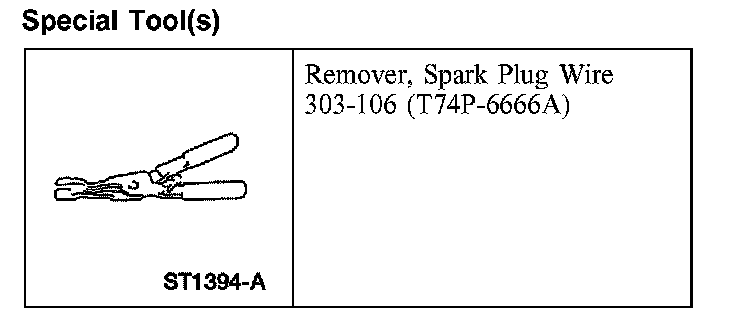

Special Tool(s):
Special Tool(s)
Removal and Installation
1. Disconnect the battery ground cable.
2. CAUTION: Spark plug wires must be connected to the correct ignition coil terminal.
Disconnect the spark plug wires from the ignition coil.
3. Detach the 6 spark plug wire retainers.
4. CAUTION: It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.

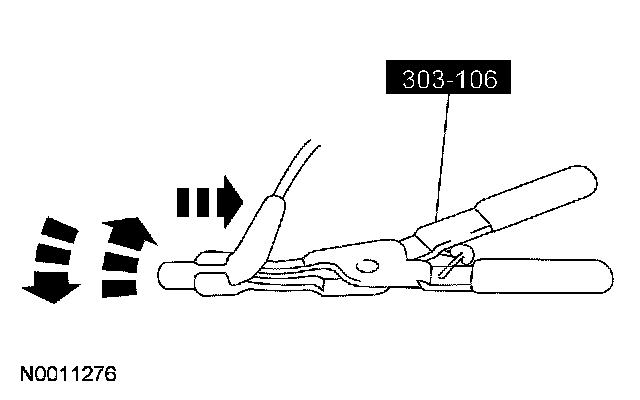

Using the special tool, remove the spark plug wire from the spark plug using a twisting motion.
5. CAUTION: Make sure the spark plug boots are positioned so that the spark plug wires do not contact the exhaust manifold, or any sharp edges.
NOTE: Apply Silicone Brake Caliper Grease and Dielectric Compound XG-3-A, ESE-M1C171-A or equivalent to the inside of the spark plug wire-to-boots.
To install, reverse the removal procedure.
