Engine Control Module: Service and Repair

POWERTRAIN CONTROL MODULE (PCM)

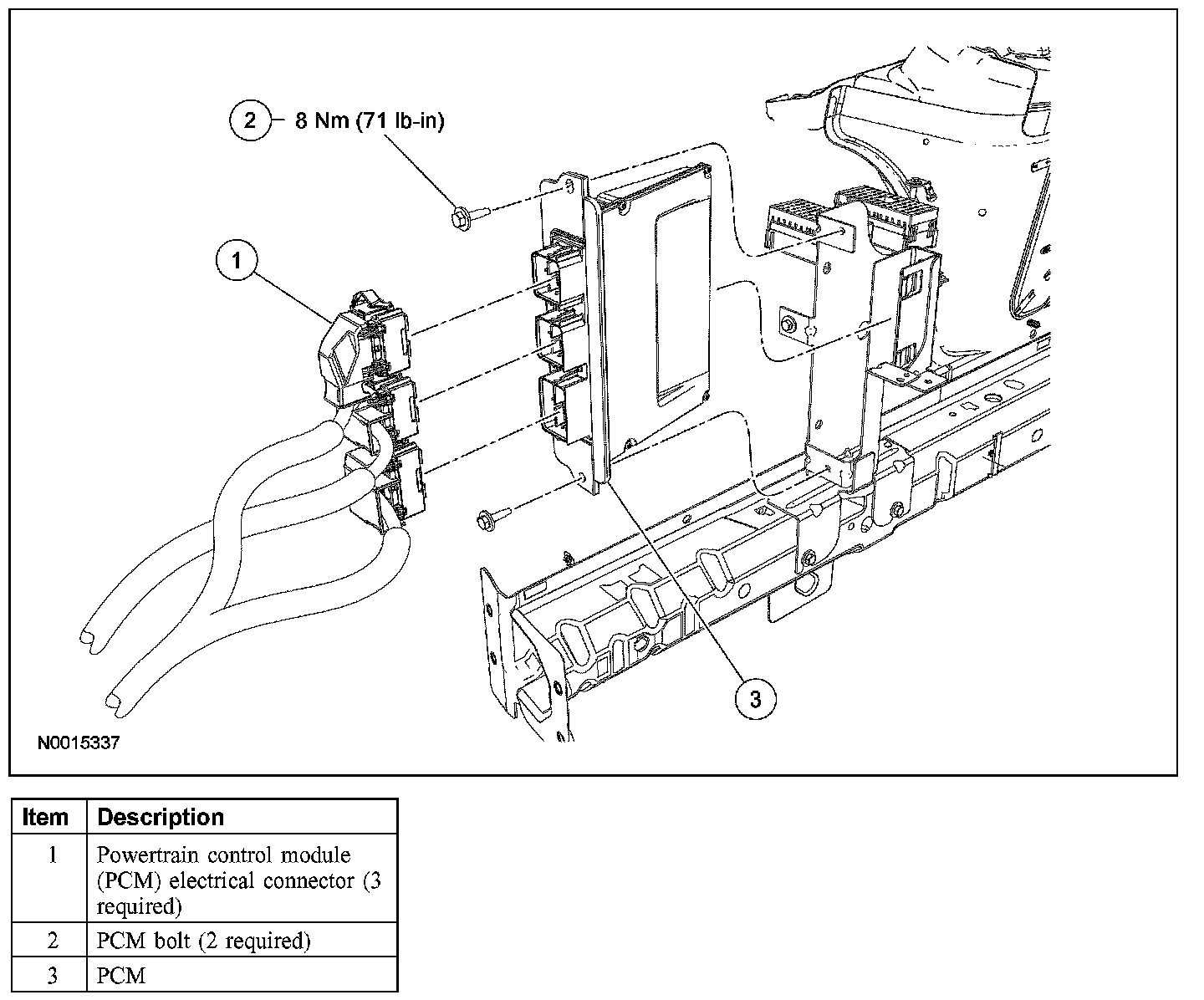

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the 3 powertrain control module (PCM) electrical connectors.
3. Remove the 2 bolts and the PCM.
- To install, tighten to 8 Nm (71 lb-in).

4. To install, reverse the removal procedure.
