Fog/Driving Lamp: Service and Repair

FOG LAMP

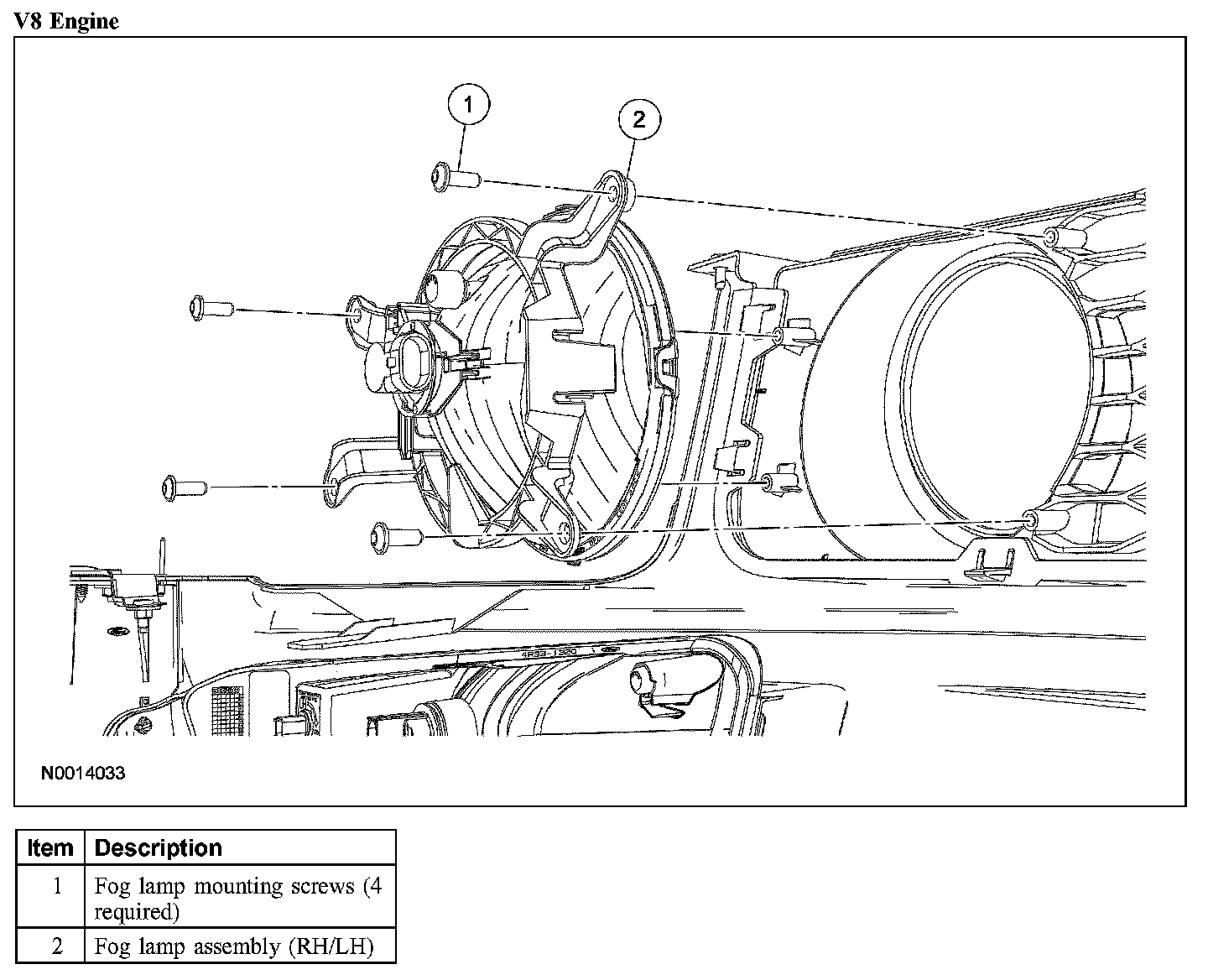

V8 Engine:

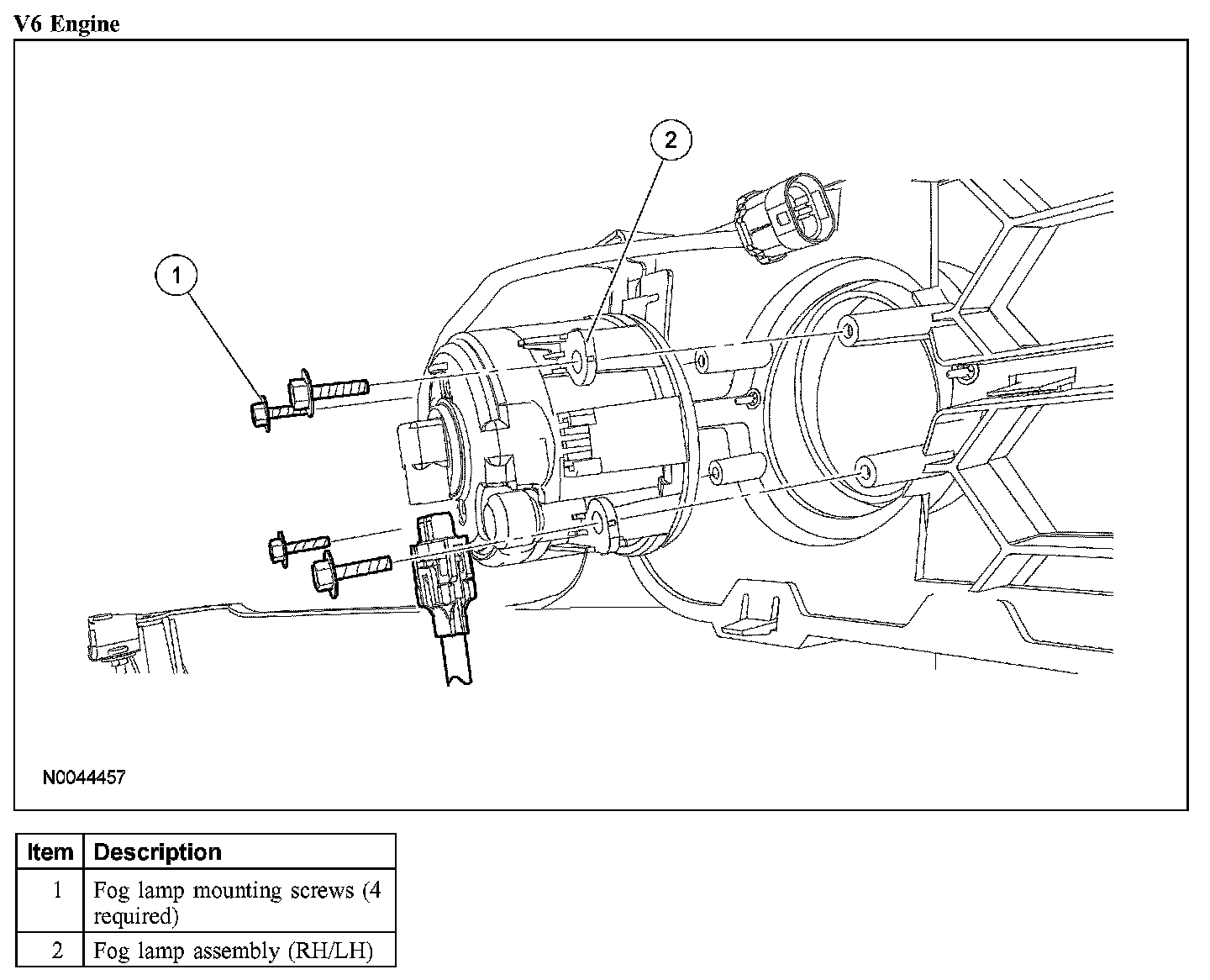

V6 Engine:

Removal and Installation
1. Remove the front bumper cover.
2. Remove the 4 screws and the fog lamp.
3. To install, reverse the removal procedure.
