Test Q: The Malfunction Indicator Lamp (MIL) Is Never/Always On

PINPOINT TEST Q: THE MALFUNCTION INDICATOR LAMP (MIL) IS NEVER/ALWAYS ON

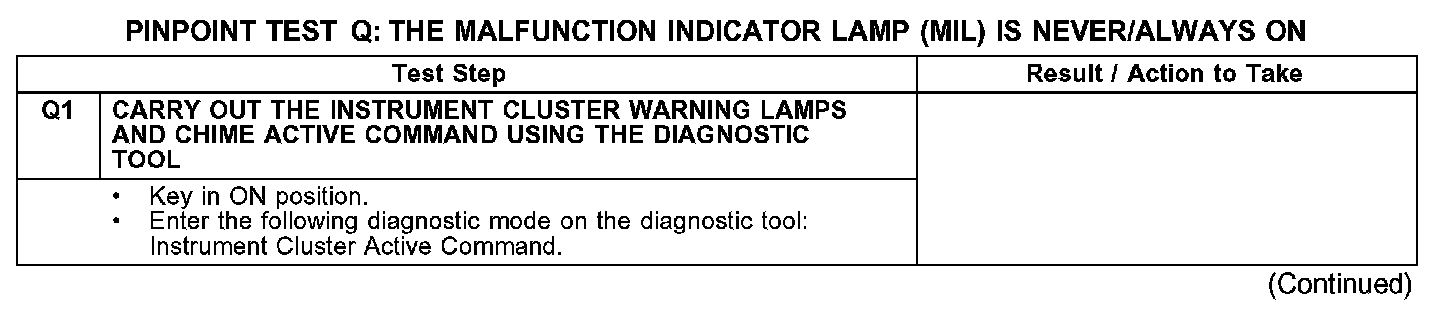

Q1:

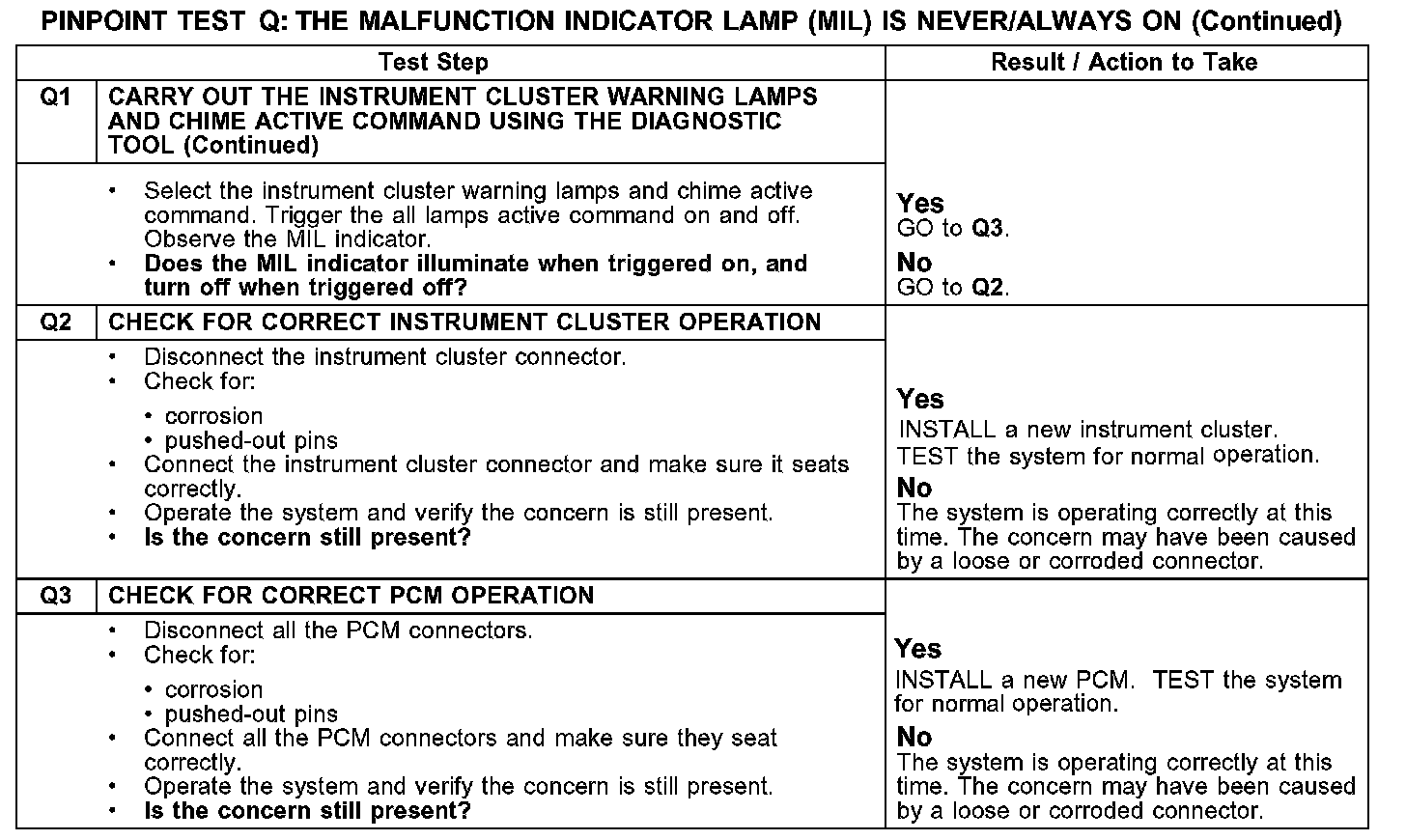

Q1-Q3:

Normal Operation
The MIL is controlled by the instrument cluster using data sent from the powertrain control module (PCM) over the communication network.

Possible Causes
- PCM
- instrument cluster
