Test A: The Control Illumination Is Inoperative

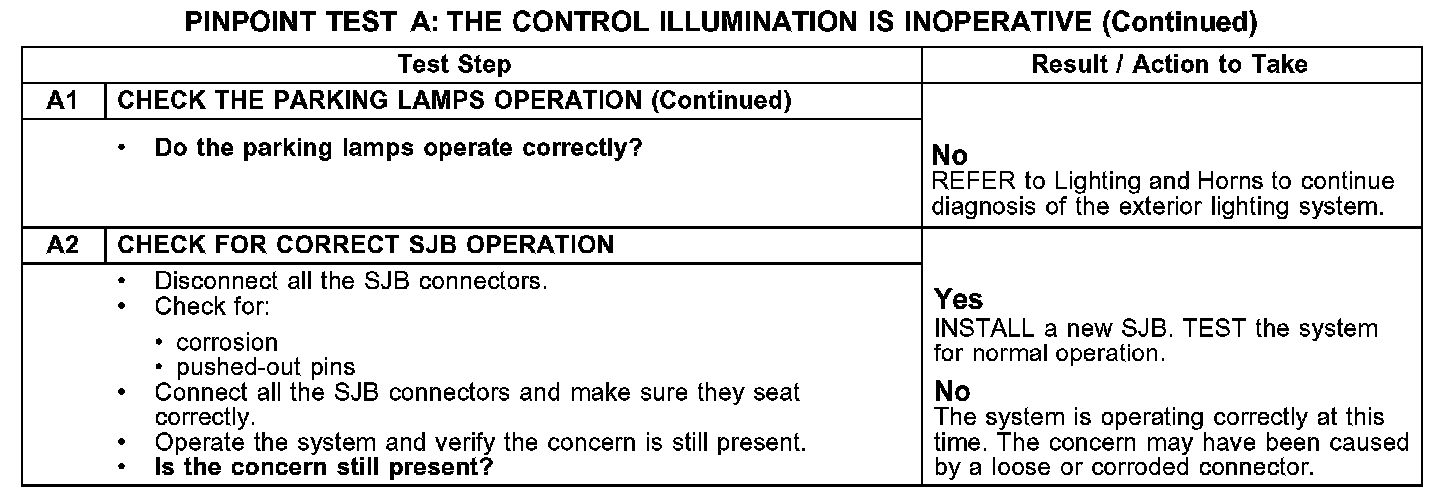

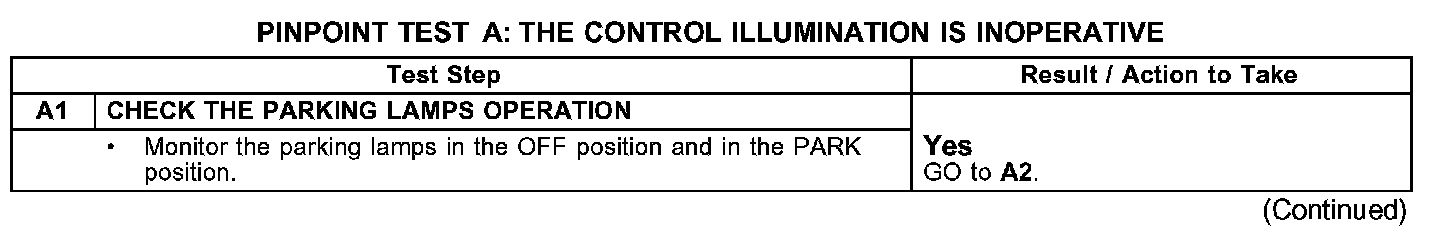

PINPOINT TEST A: THE CONTROL ILLUMINATION IS INOPERATIVE

A1:

A1-A2:

Normal Operation
When the headlamp switch is placed in the PARK or headlamp ON position, the smart junction box (SJB) supplies either a pulse width modulated (PWM) signal or 12 volts to the various backlighting sources in the instrument panel, doors and console.

Possible Causes
- SJB
