Home >> Ford >> 2006 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Trouble Code Diagnostic Charts - Instrument Cluster >> Instrument Cluster Diagnostic Trouble Code (DTC) Index

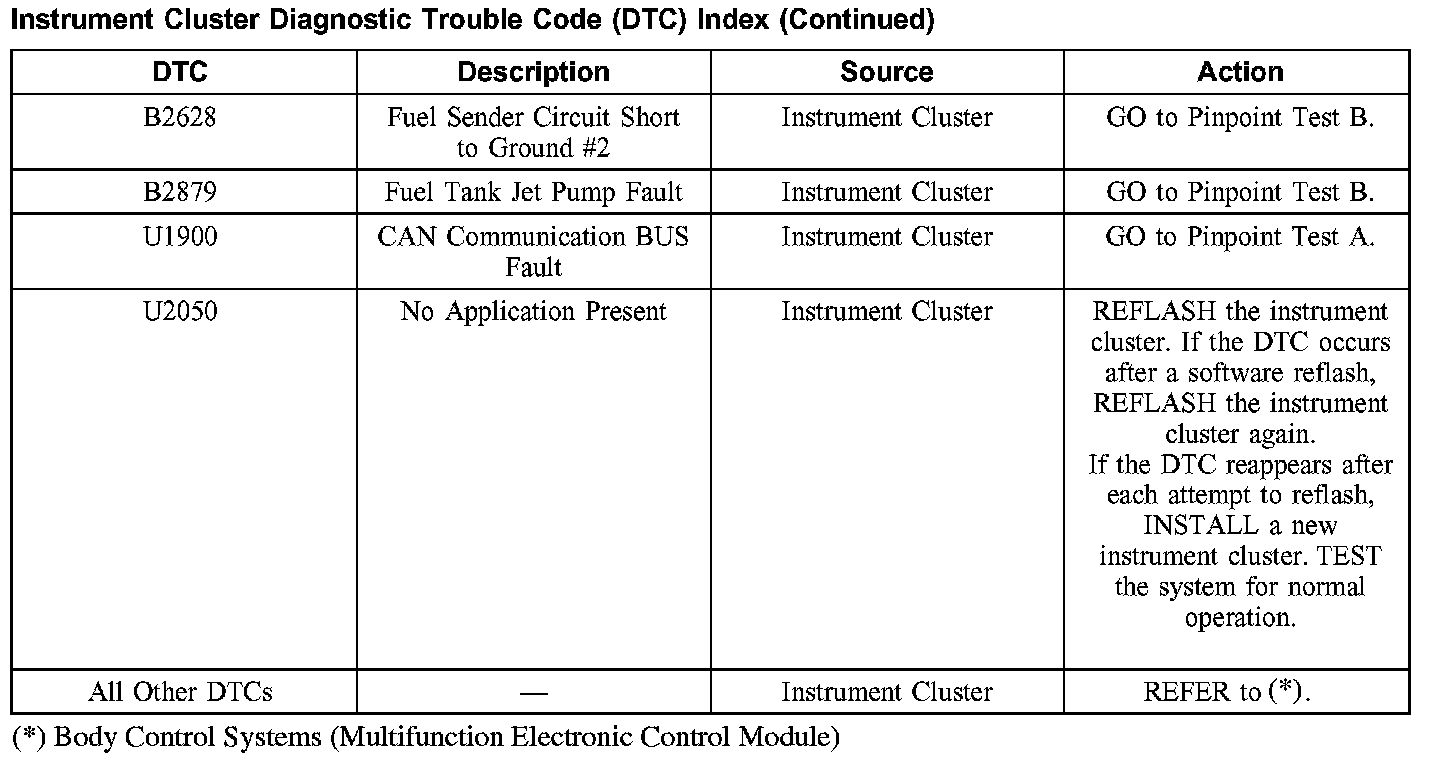

Instrument Cluster Diagnostic Trouble Code (DTC) Index

B1202-B2627:

B2628-U2050:
