Timing Drive Components - Hydraulic Chain Tensioner, LH

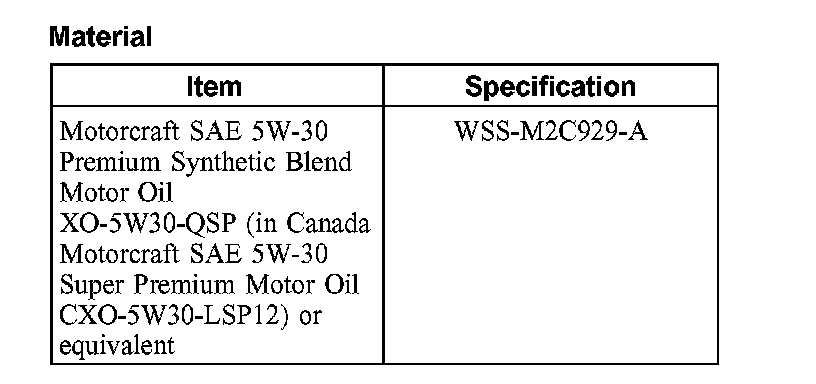

Timing Drive Components - Hydraulic Chain Tensioner, LHMaterial:
Removal and Installation
1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the engine coolant temperature sensor. For additional information, refer to Computers and Control Systems.

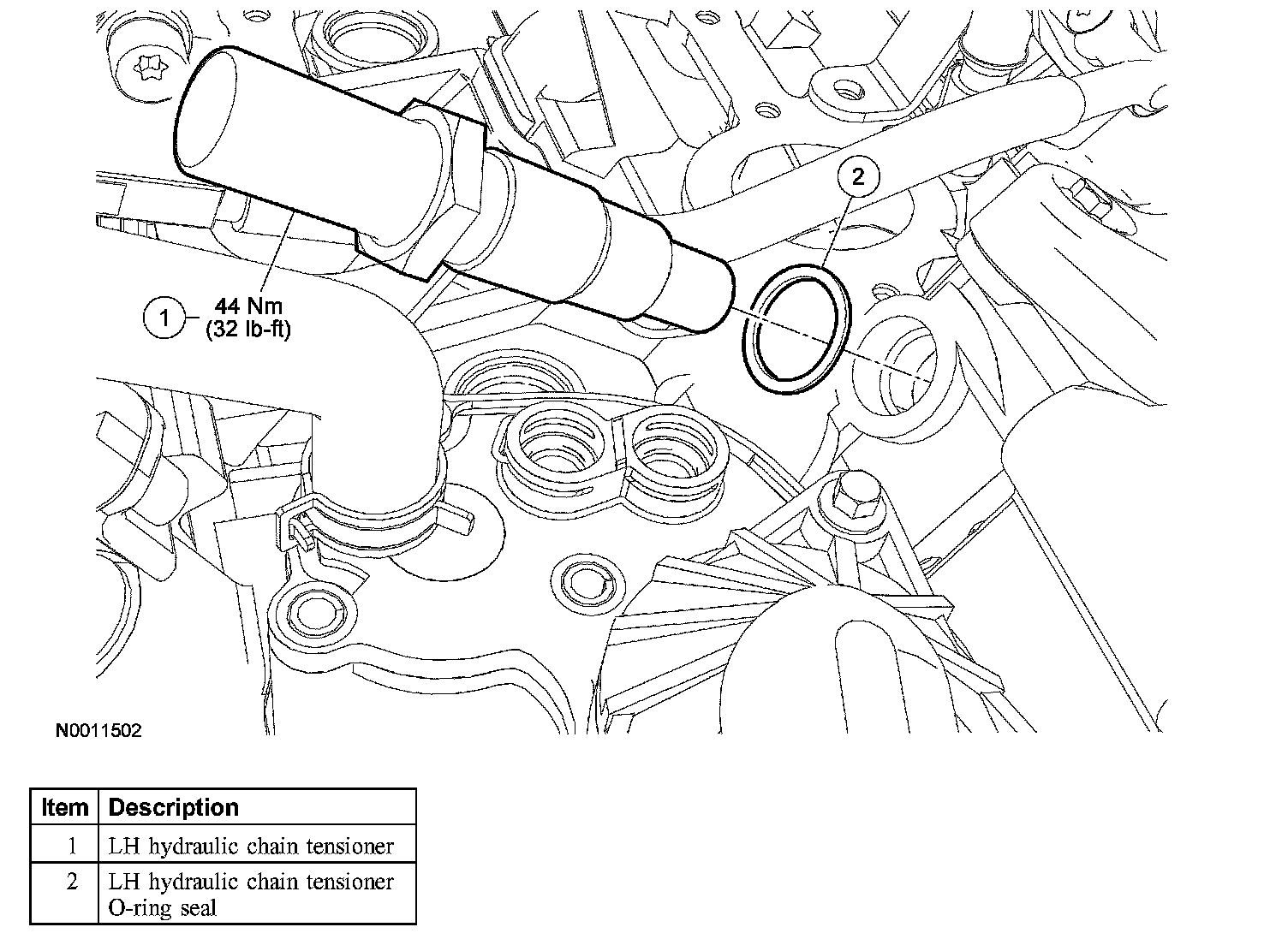

3. Remove the LH hydraulic chain tensioner.
^ To install, tighten to 44 Nm (32 ft. lbs.).
4. NOTE: Lubricate the new O-ring seal with clean engine oil.
Remove and discard the O-ring seal.
5. To install, reverse the removal procedure.
