Valve Cover - LH

Valve Cover - LH

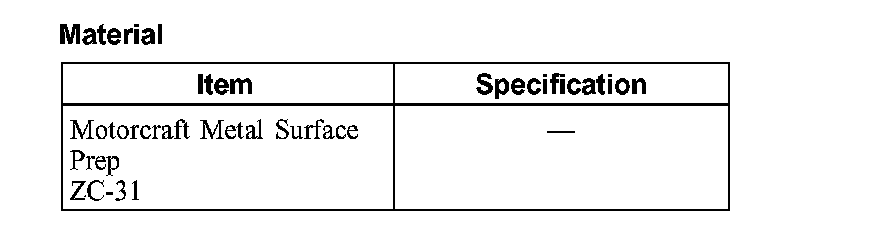

Material:

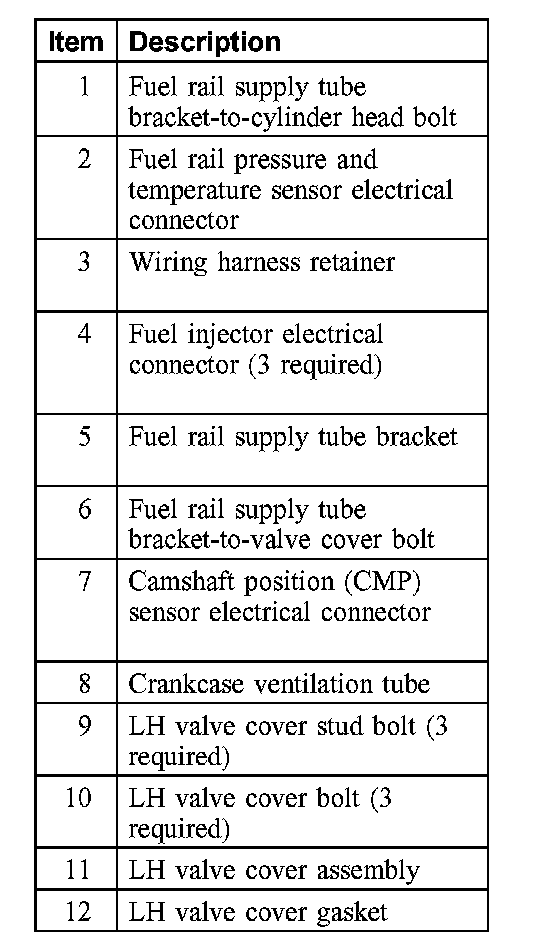

Removal

CAUTION: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the ignition coil. For additional information, refer to Ignition System.
3. Remove the fuel rail supply tube bracket-to-cylinder head bolt.
4. Remove the fuel rail supply tube bracket-to-valve cover bolt.
^ Position the fuel rail supply tube aside.
5. Disconnect the crankcase ventilation tube from the valve cover and position the tube aside.
6. Disconnect the camshaft position (CMP) sensor electrical connector.
7. Disconnect the fuel rail pressure and temperature sensor electrical connector.
8. Disconnect the 3 LH fuel injector electrical connectors.
^ Detach the wiring retainer from the valve cover stud bolt and position the wiring harness aside.
9. Detach the spark plug wire retainer from the valve cover stud bolt.
10. Remove the 3 bolts, the 3 stud bolts and the LH valve cover.

Installation

1. NOTE: Clean the valve cover and cylinder head sealing surfaces with metal surface prep. Inspect and install a new gasket as necessary.





Position the LH valve cover and install the 3 bolts and the 3 stud bolts.

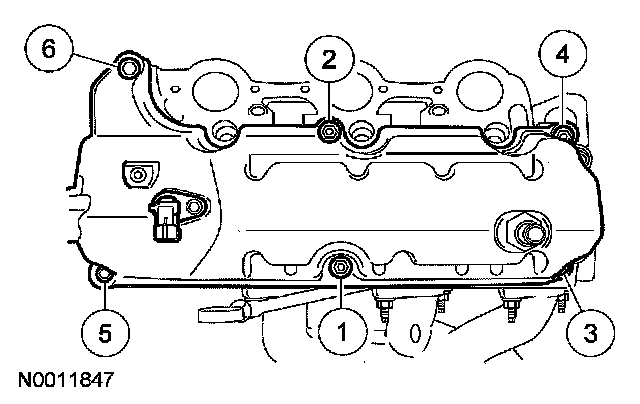

^ Tighten in the sequence shown to 10 Nm (89 inch lbs.).
2. Attach the spark plug wire retainer to the valve cover stud bolt.
3. Position the wiring harness, attach the wiring retainer to the valve cover stud bolt and then connect the 3 LH fuel injector electrical connectors.
4. Connect the fuel rail pressure and temperature sensor electrical connector.
5. Connect the camshaft position (CMP) sensor electrical connector.
6. Connect the crankcase ventilation tube to the valve cover.
7. Position the fuel rail supply tube and install the fuel rail supply tube bracket-to-valve cover bolt.
^ Tighten to 6 Nm (53 inch lbs.).
8. Install the fuel rail supply tube bracket-to-cylinder head bolt.
^ Tighten to 10 Nm (89 inch lbs.).
9. Install the ignition coil. For additional information, refer to Ignition System.
10. Connect the battery ground cable. For additional information, refer to Battery.
