Electronic Brake Control Module: Service and Repair

Anti-Lock Brake System (ABS) Module

Anti-Lock Brake System (ABS) Module:

Removal and Installation

CAUTION: Electronic modules are sensitive to electrical charges. The ABS module can be damaged if exposed to these charges.

1. Disconnect the battery ground cable. For additional information, refer to Battery.
2. Remove the bolt and refer to Fuel Delivery and Air Induction.
^ To install, tighten to 8 Nm (71 inch lbs.).
3. Disconnect the ABS module electrical connector.

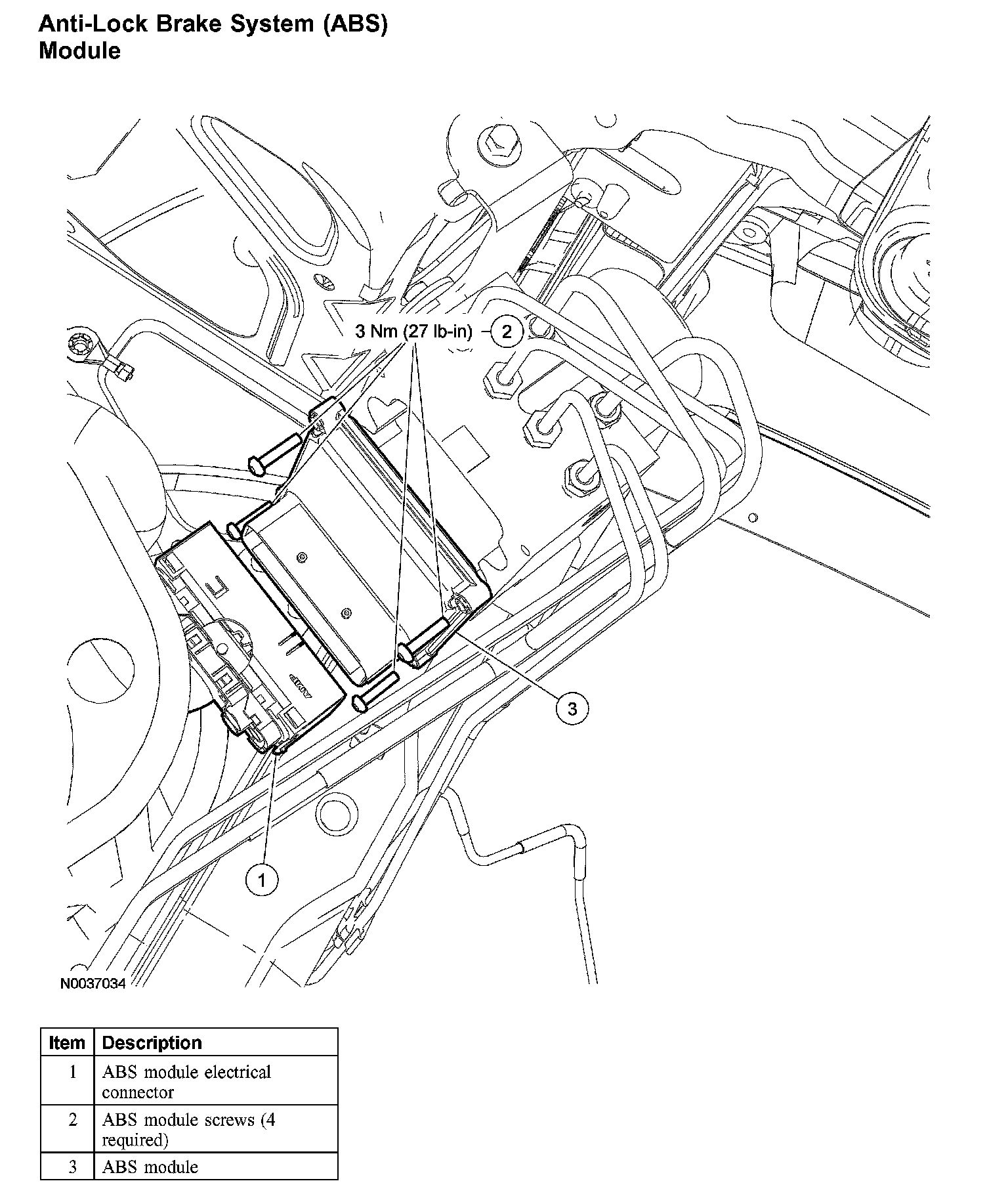

4. Remove the 4 screws and the ABS module.

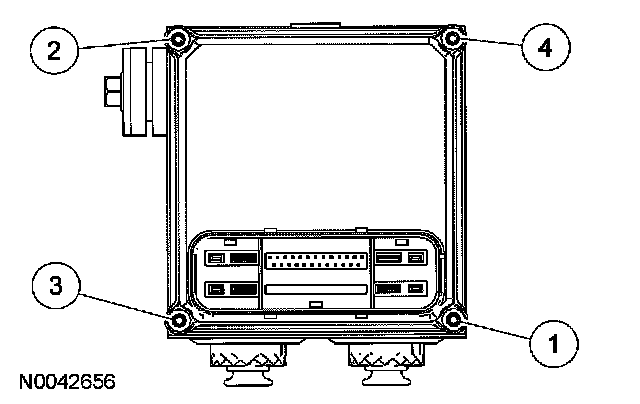

^ To install, tighten to 3 Nm (27 inch lbs.) in the sequence shown.
5. To install, reverse the removal procedure.
