Seat - Exploded View, Rear
Seat - Exploded View, Rear

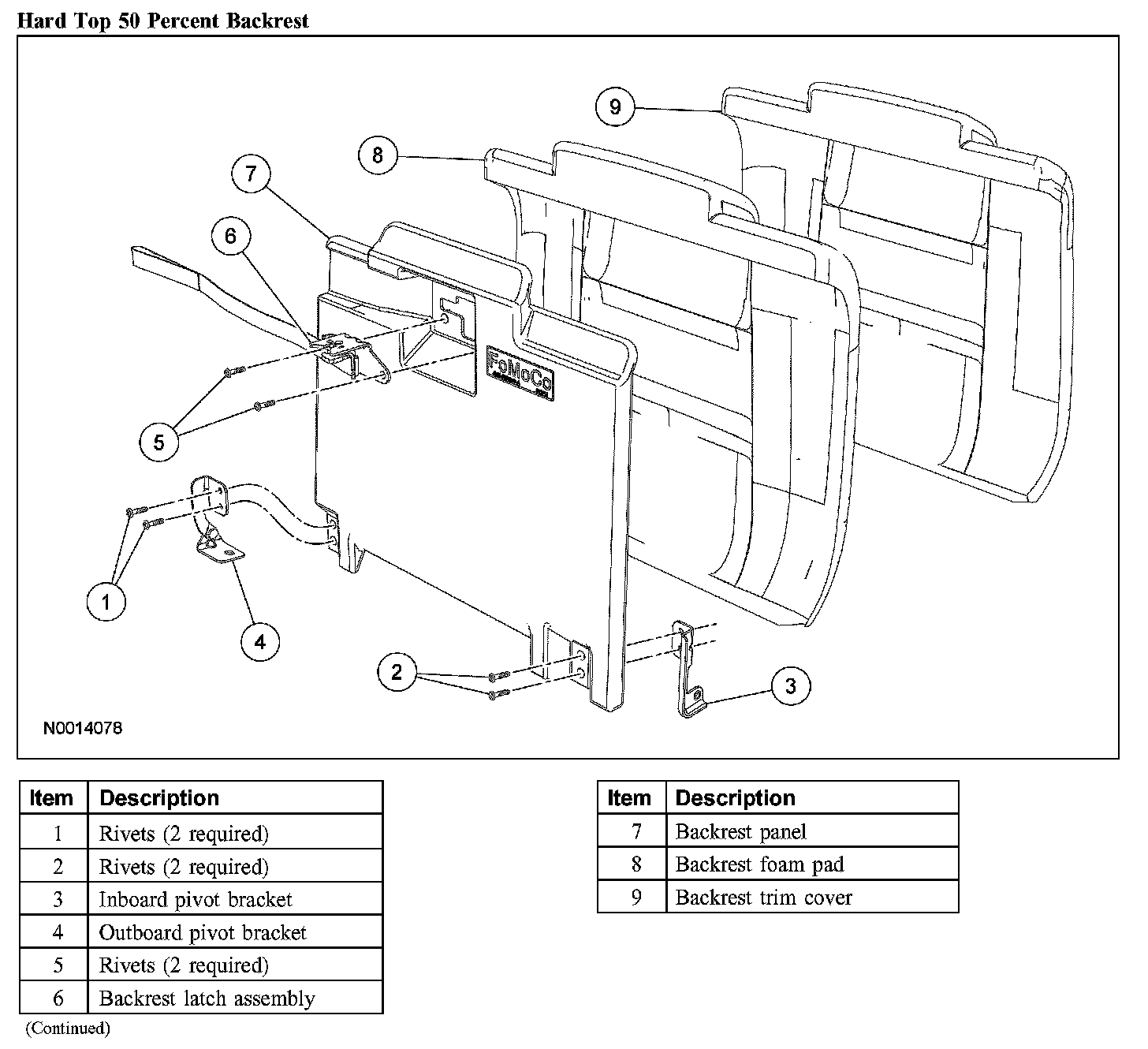

SEAT - EXPLODED VIEW, REAR
Hard Top 50 Percent Backrest:
Removal and Installation
1.
For additional information, refer to the procedures.
