Seat - Exploded View, Front

SEAT - EXPLODED VIEW, FRONT

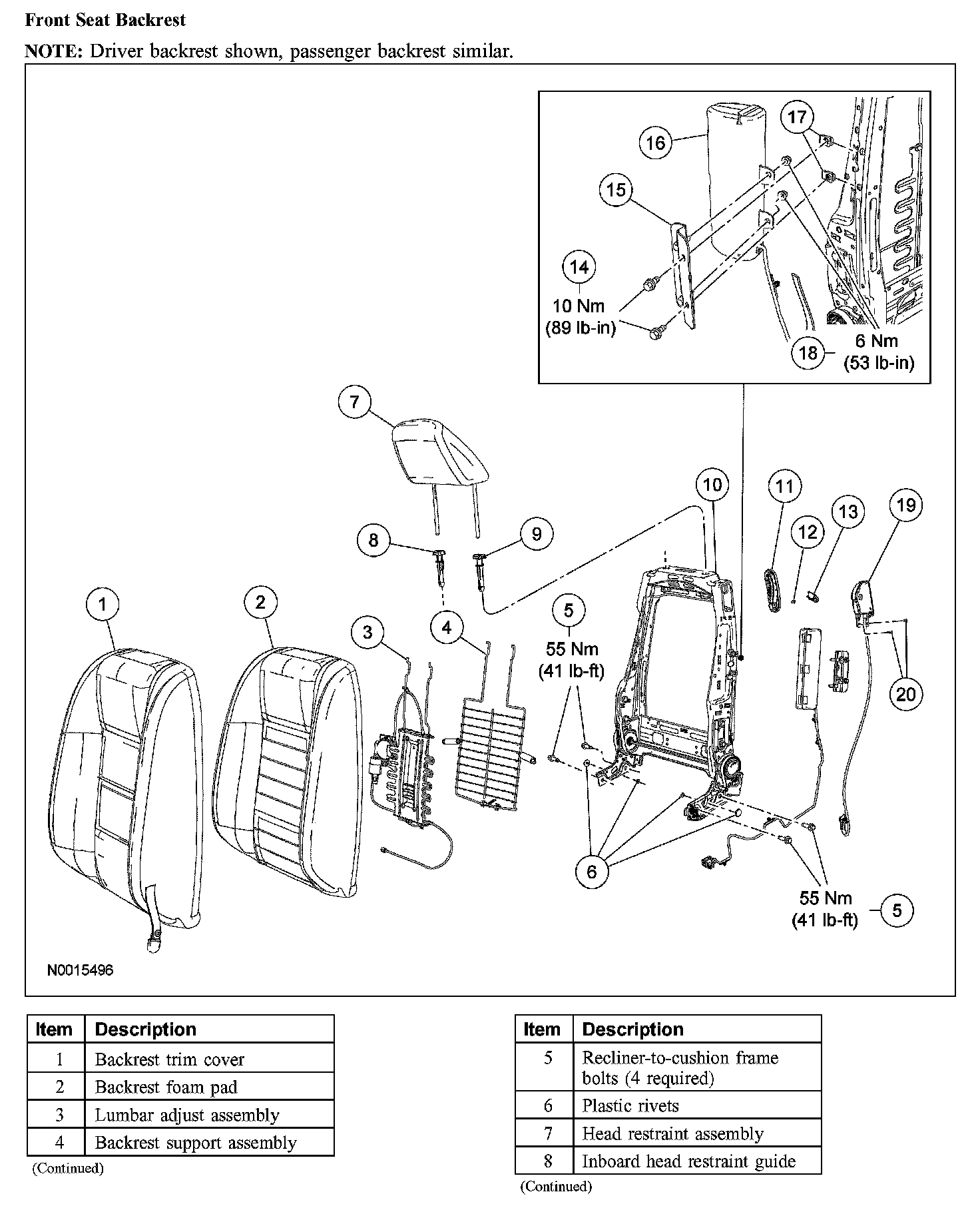

Front Seat Backrest (Part 1):

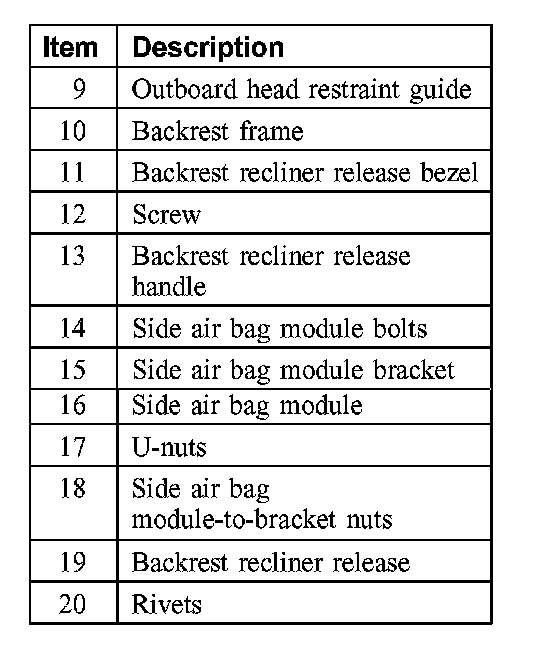

Front Seat Backrest (Part 2):

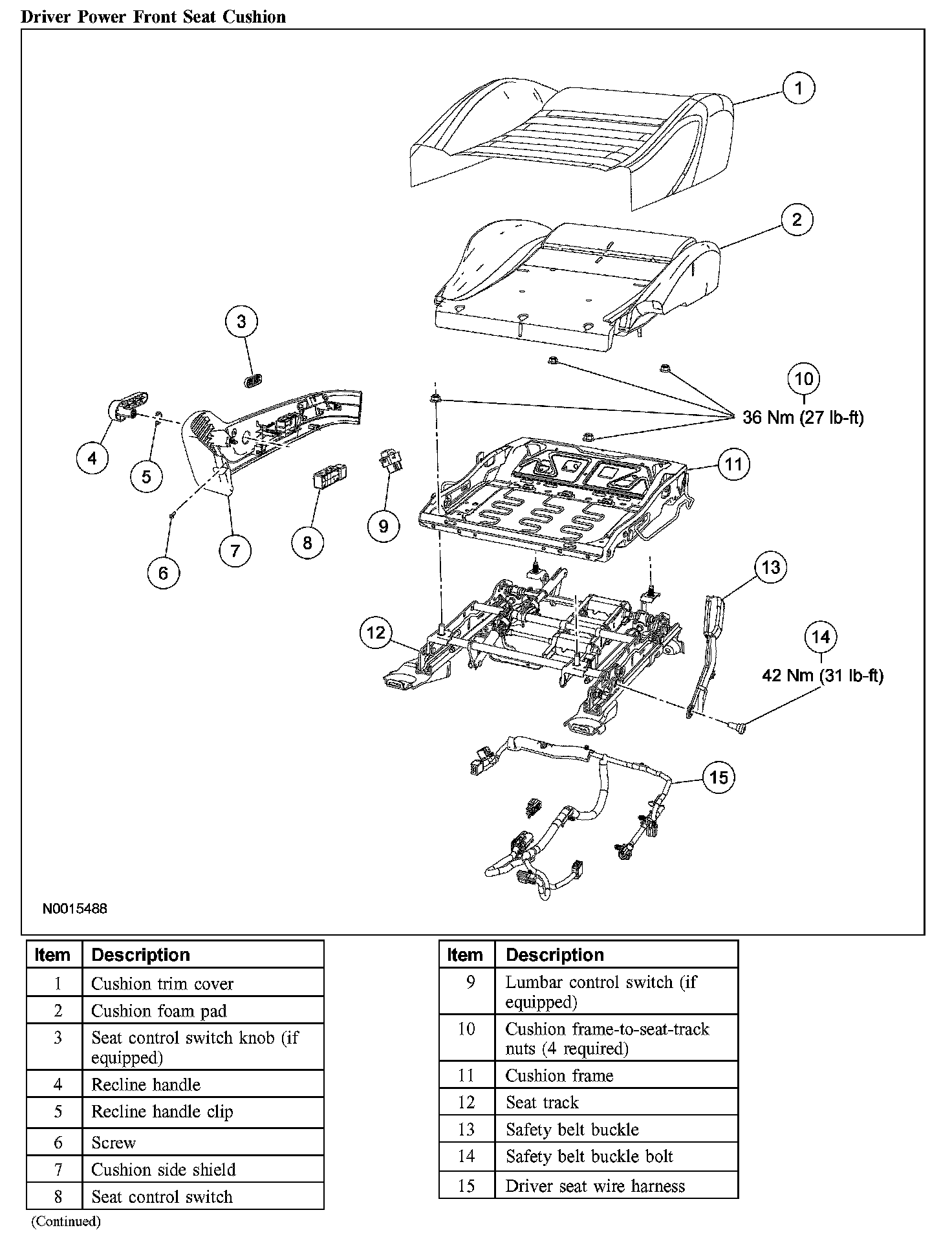

Driver Power Front Seat Cushion:

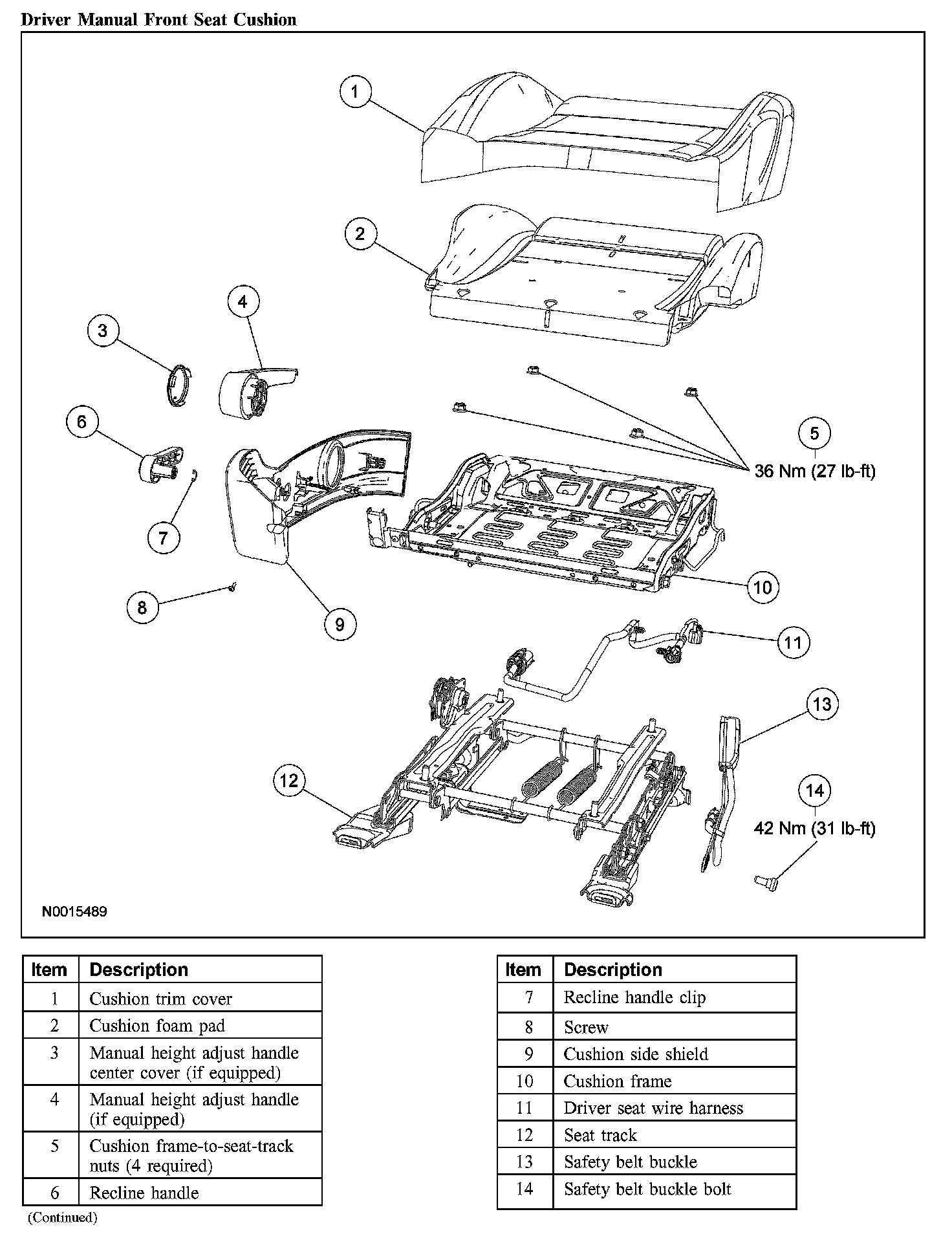

Driver Manual Front Seat Cushion:

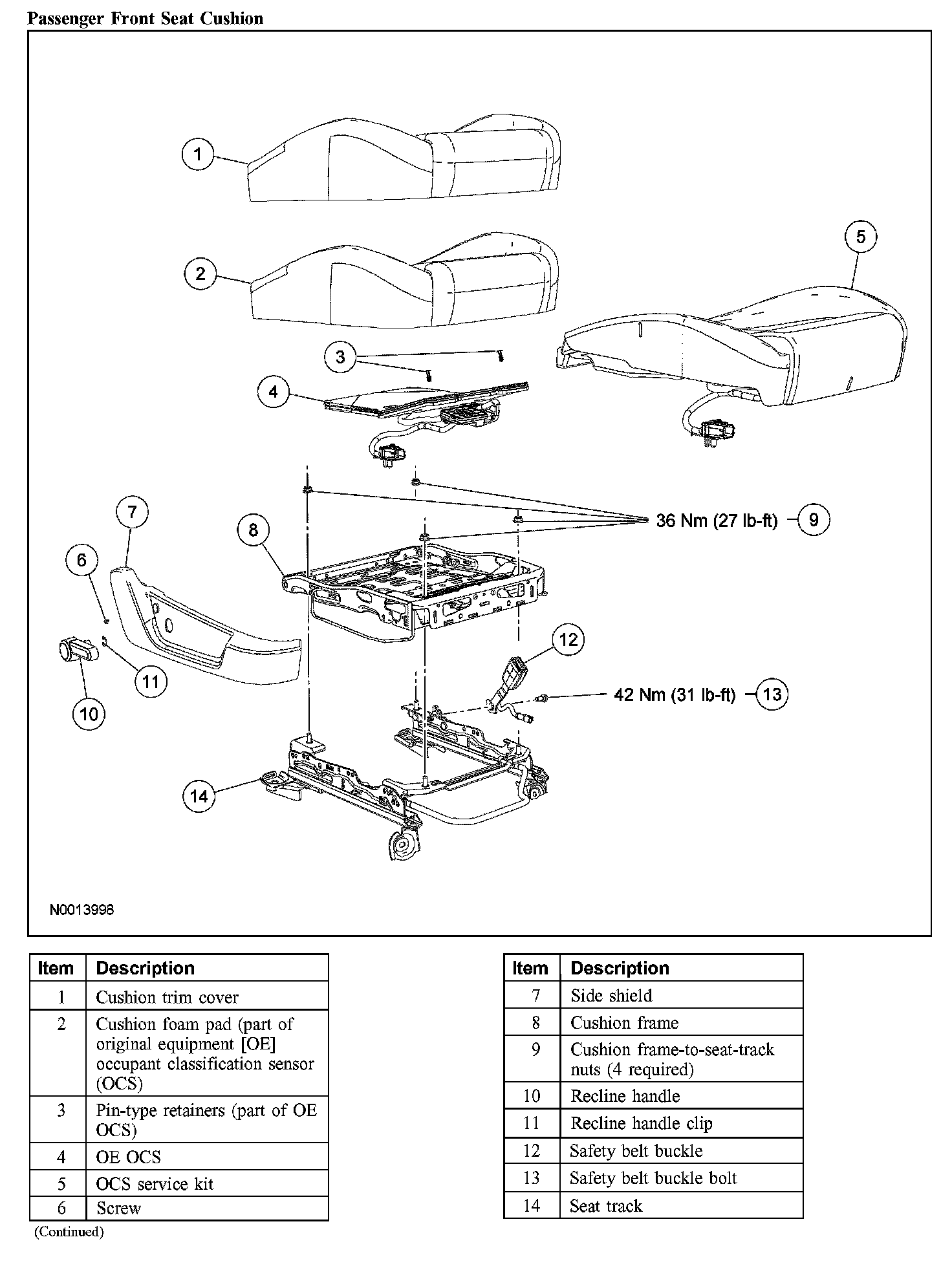

Passenger Front Seat Cushion:

Removal and Installation
1. For additional information, refer to the procedures.
