Rear Seat Backrest - Coupe

REAR SEAT BACKREST - COUPE







Disassembly and Assembly

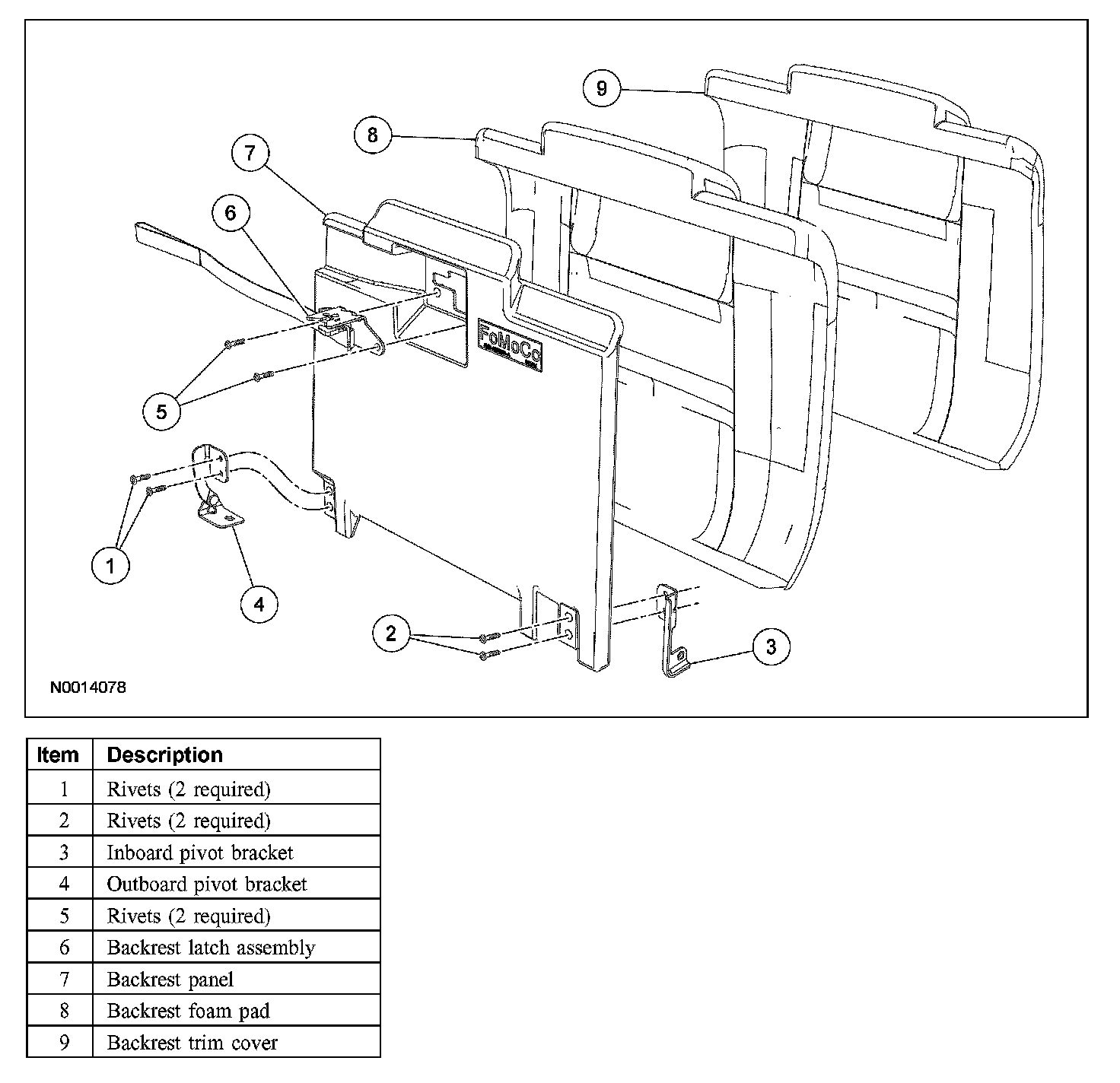

1. Remove the rear seat cushion.
2. Remove the rear seat backrest.
3. Release the backrest trim cover J-strip and remove the staples.
4. Pull the backrest panel out from the backrest foam pad and backrest trim cover.
- Upon assembly, the latch release strap must come through the trim cover.

5. Remove the 4 rivets and the pivot brackets.
6. Remove the rivets, separate the pin-type retainer from the cable end and remove the backrest latch assembly.

7. CAUTION: Use care when separating the seat backrest trim cover from the hook and loop strip. The hook and loop strip can be torn from the seat backrest foam.

Release the hook and loop strips and separate the backrest trim cover from the backrest foam pad.

8. To assemble, reverse the disassembly procedure.
