Convertible Top - Exploded View

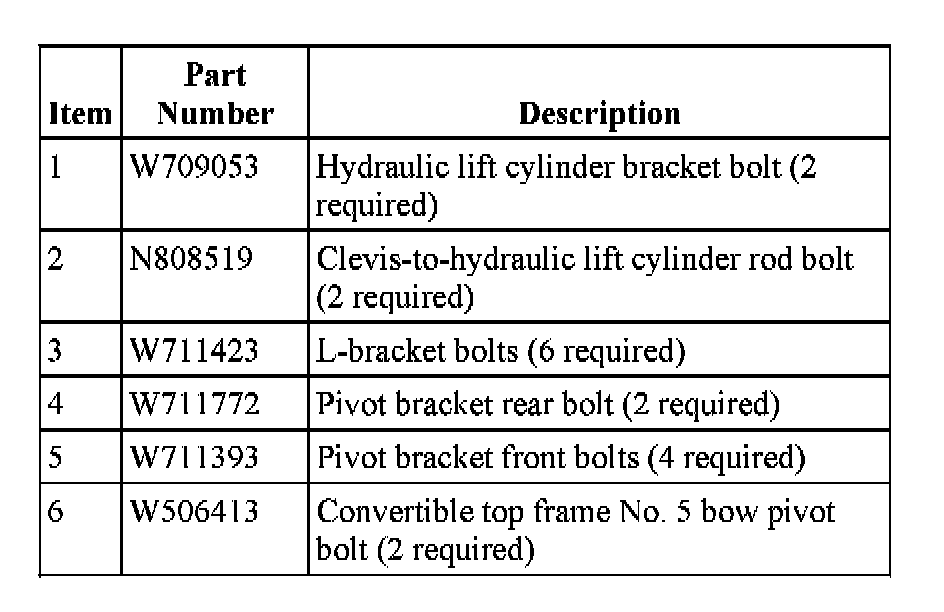

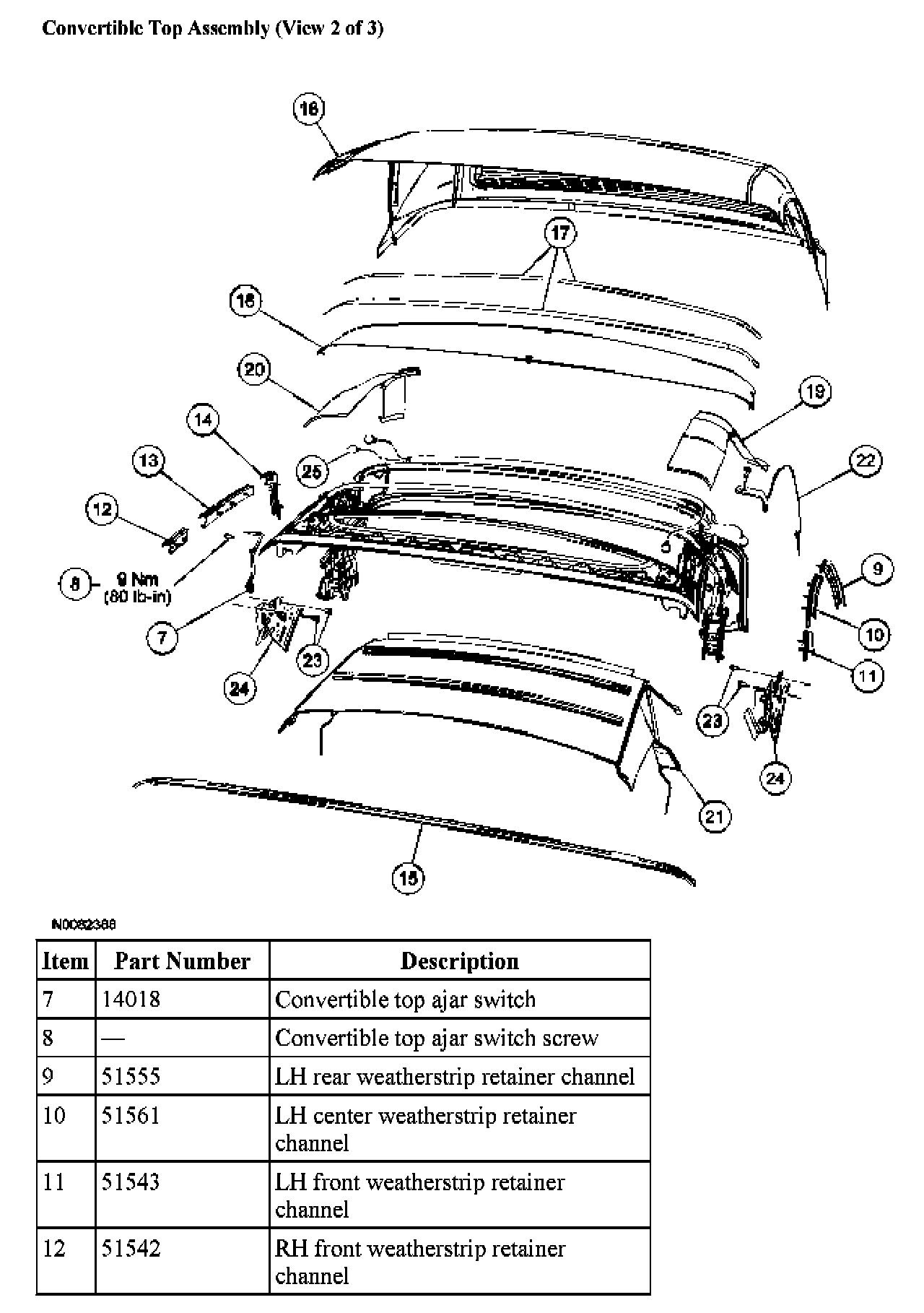

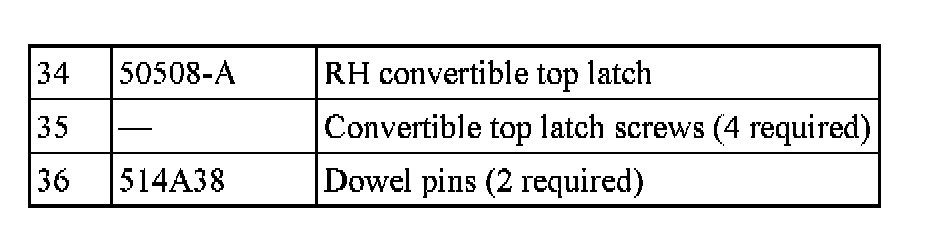

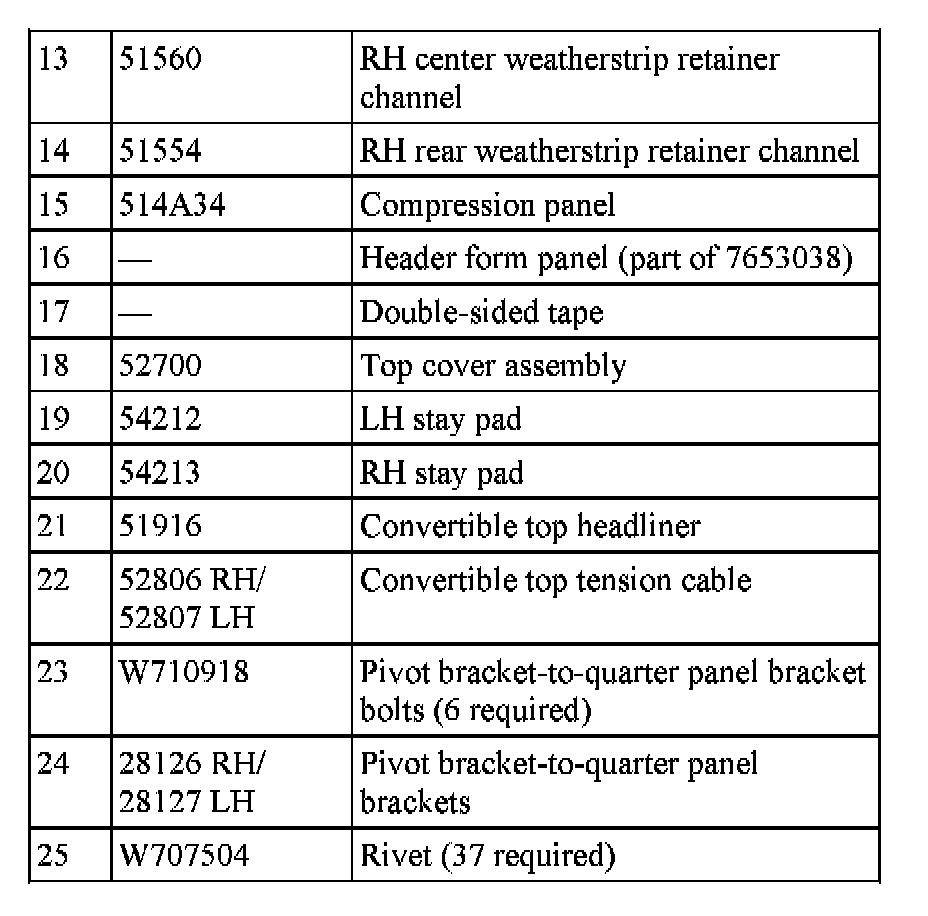

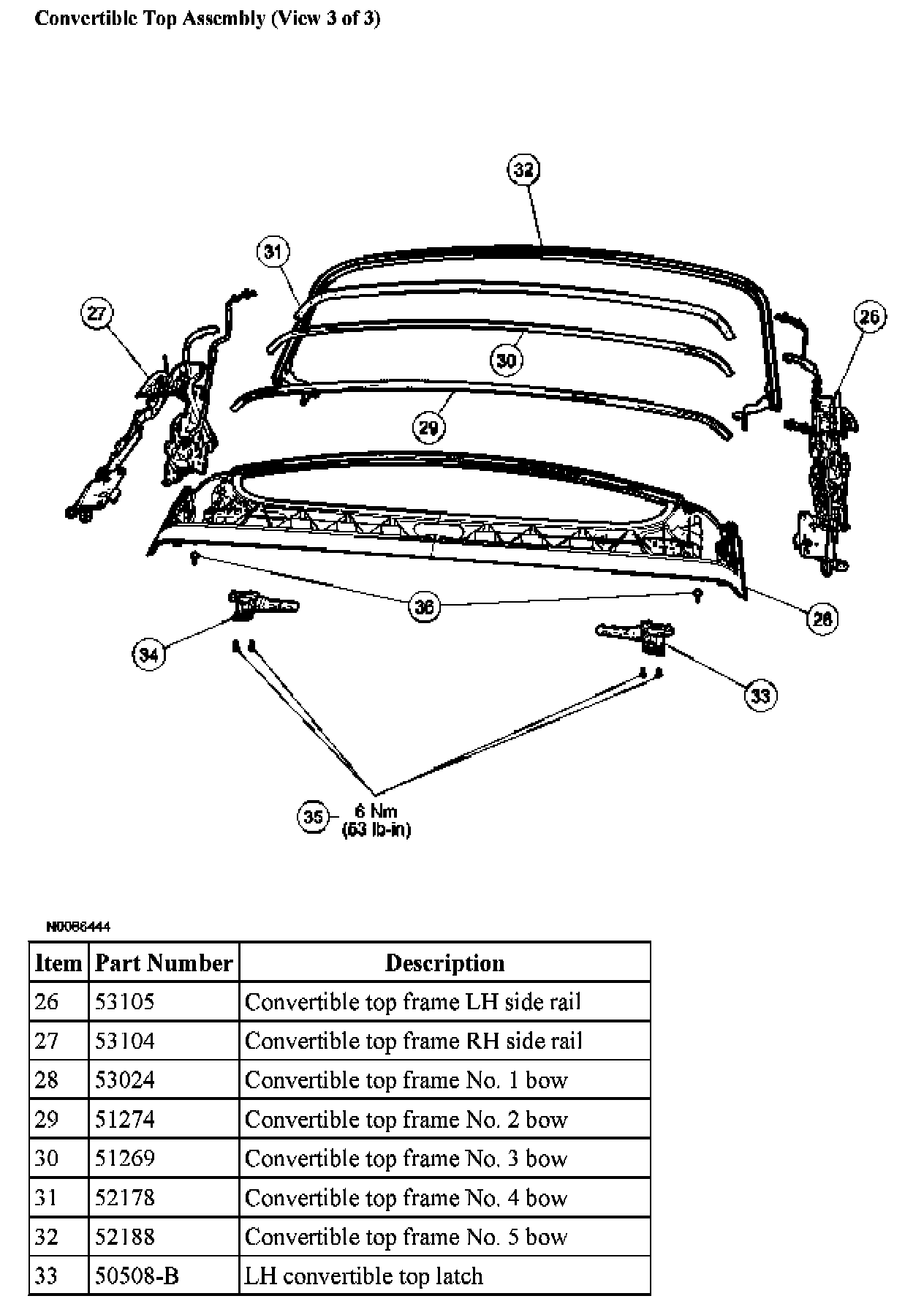

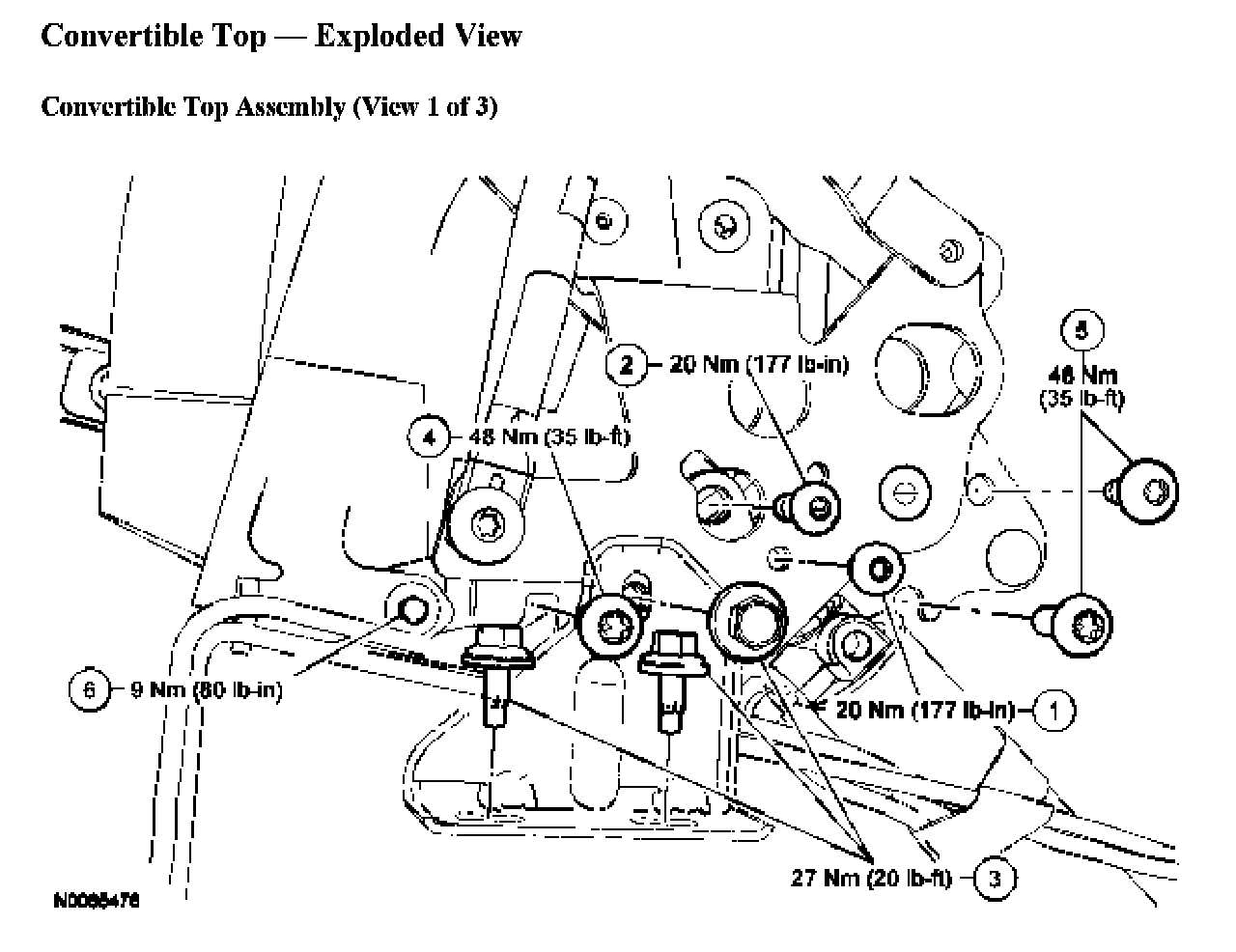

CONVERTIBLE TOP - EXPLODED VIEW


























Removal and Installation
1. For additional information, refer to the procedures.
