Exploded Views

CONVERTIBLE TOP - EXPLODED VIEW

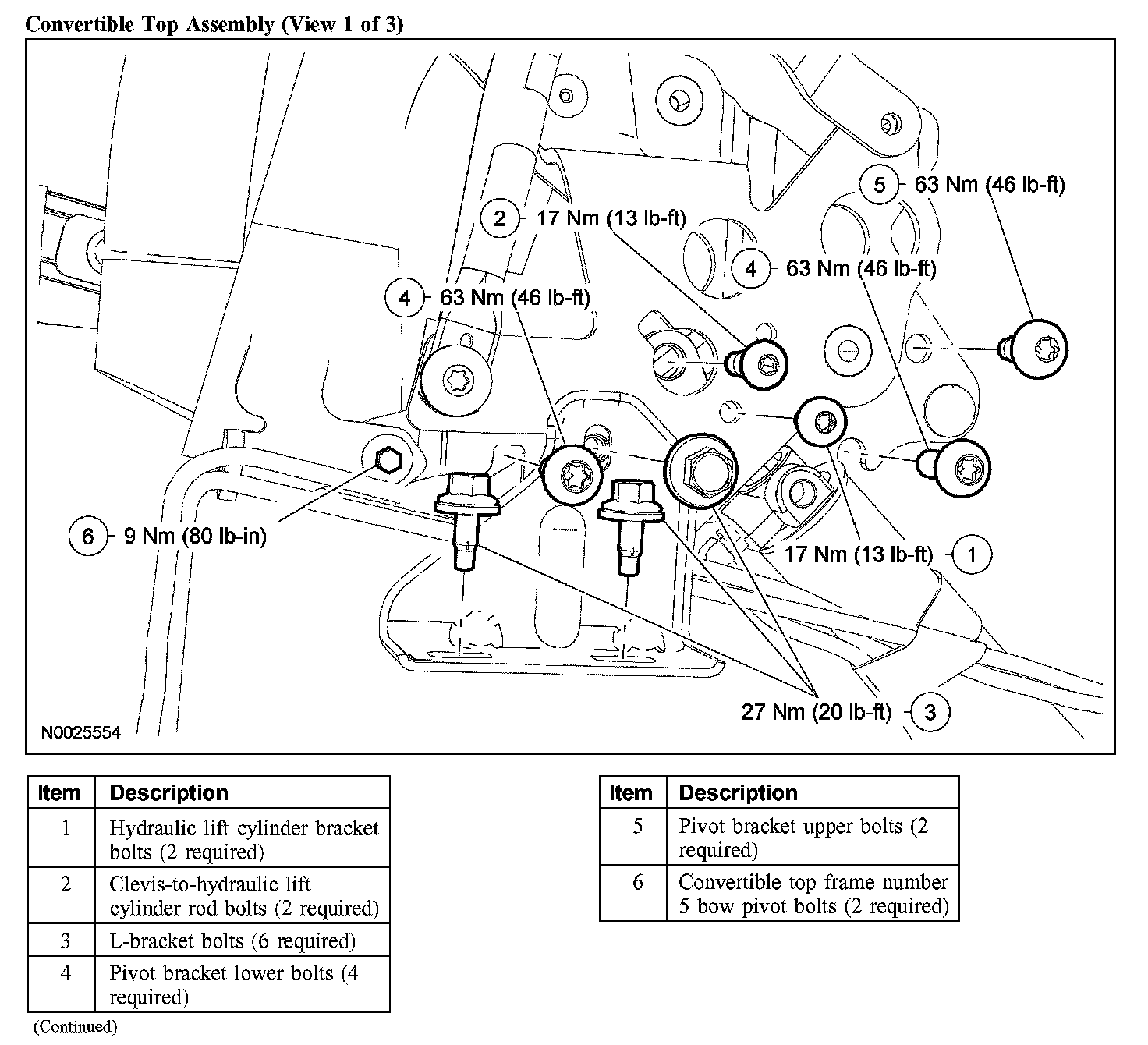

Convertible Top Assembly (View 1 Of 3):

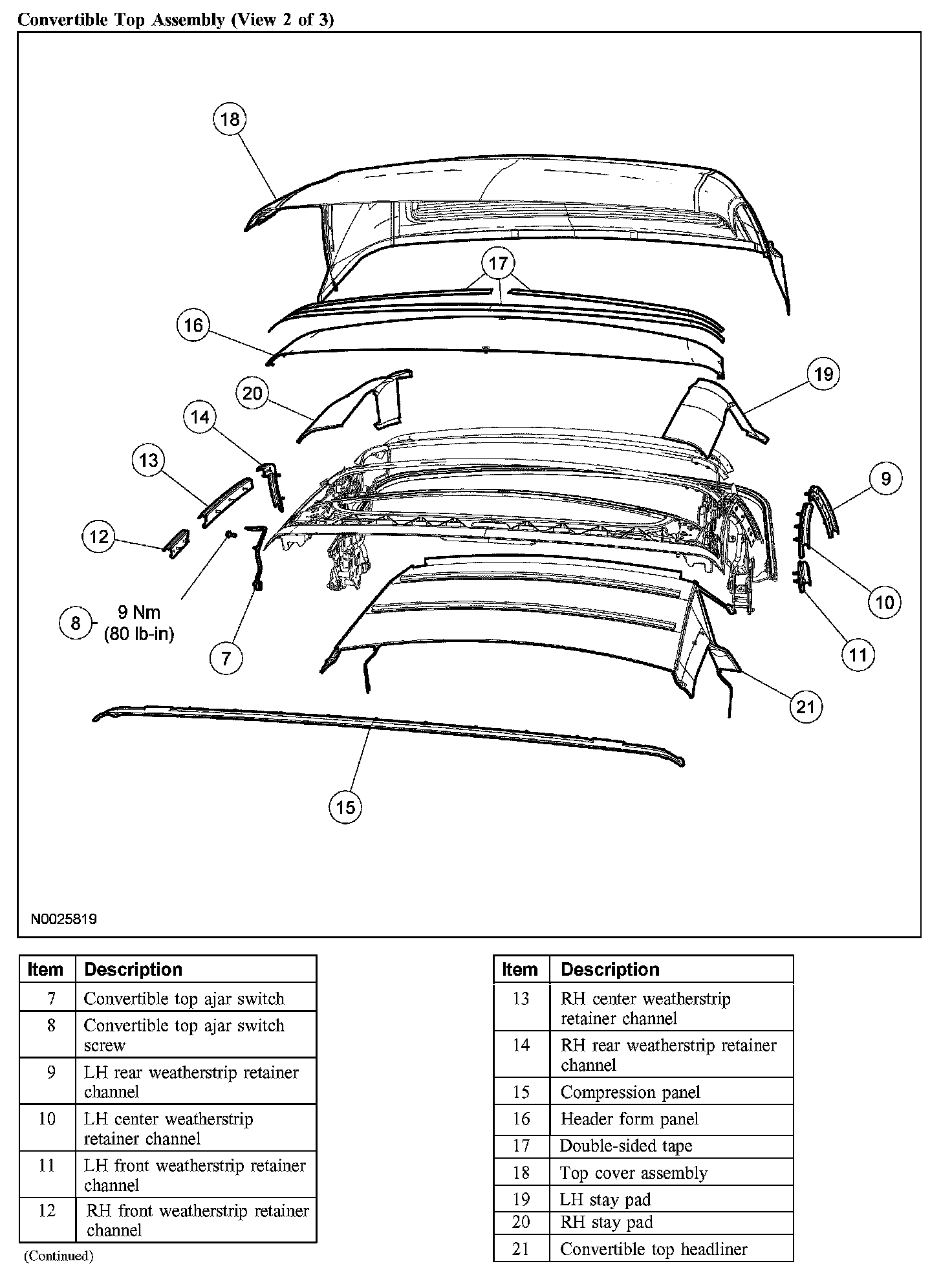

Convertible Top Assembly (View 2 Of 3):

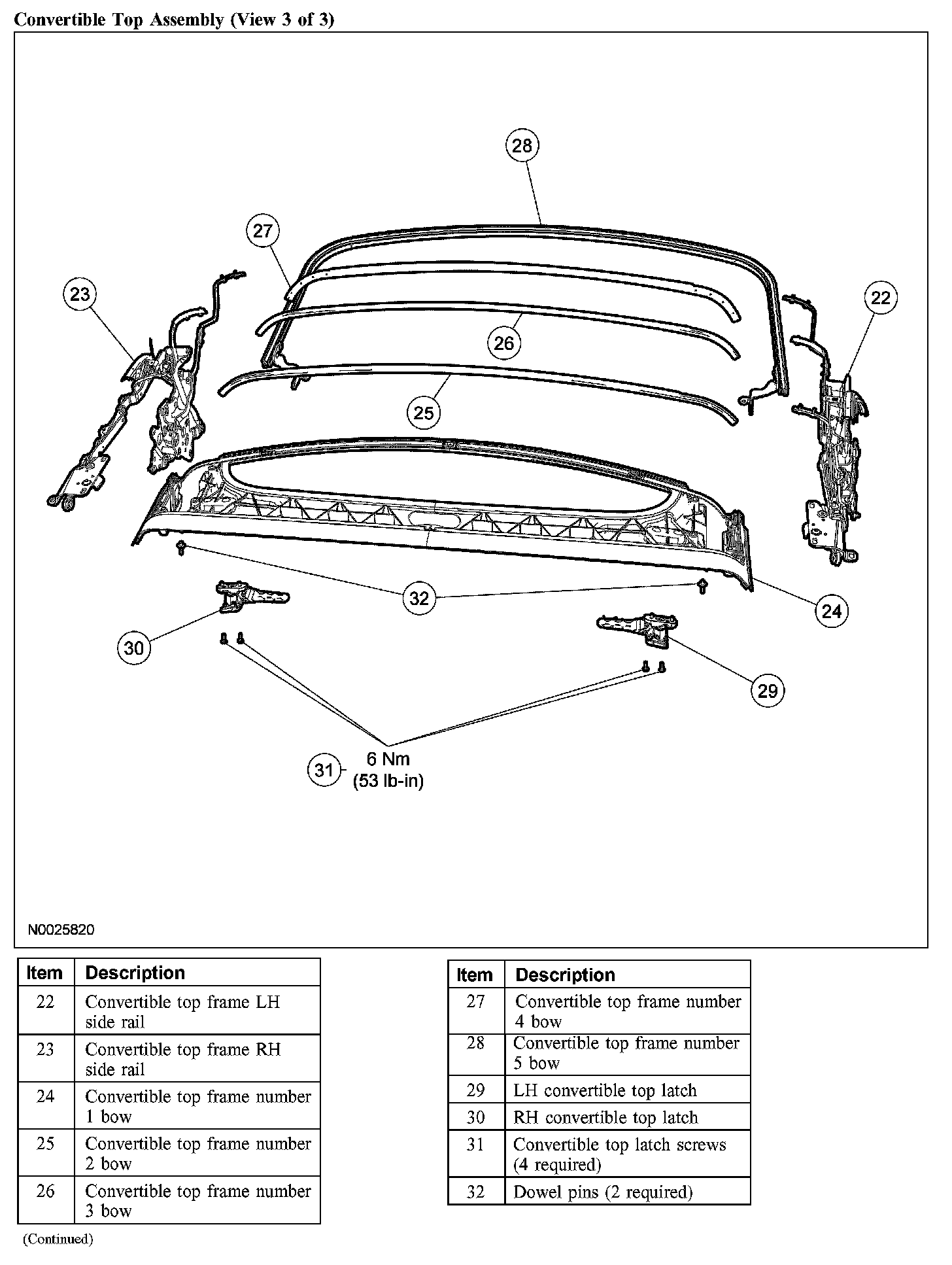

Convertible Top Assembly (View 3 Of 3):

Removal and Installation
1. For additional information, refer to the procedures.
