Convertible Top Motor: Service and Repair

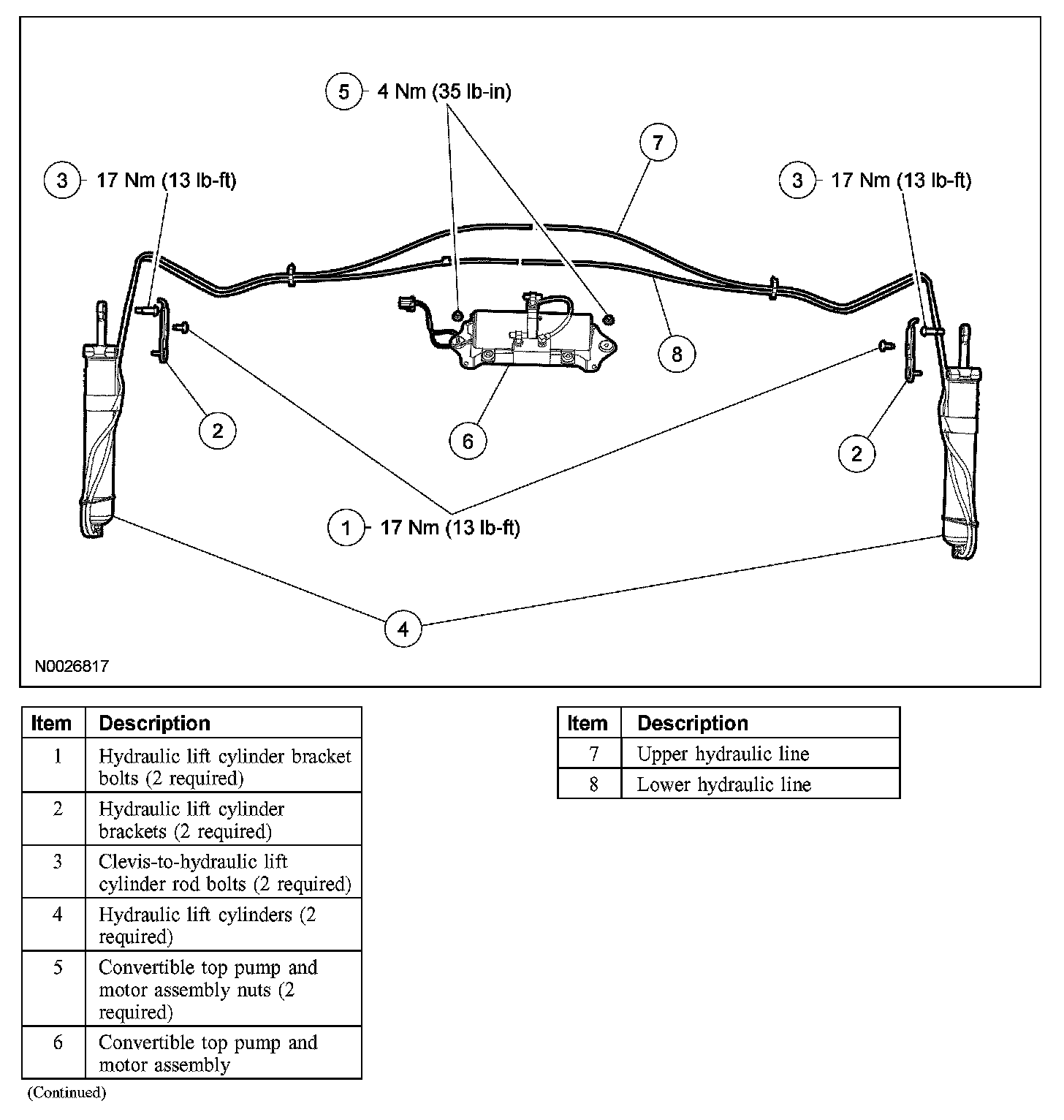

HYDRAULIC SYSTEM, LIFT CYLINDER AND MOTOR







Removal

NOTE: The convertible top hydraulic components are removed from the vehicle as an assembly. The hydraulic components are individually repaired and the system must be bled before being installed into the vehicle.

Hydraulic system
1. Lower the convertible top.
2. Remove the rear seat backrests.
3. Remove the 2 rear quarter trim panels.
4. Momentarily place the convertible top switch in the raise position to release the tension on the convertible top system.
5. Remove the 2 bolts (1 each side) and the 2 hydraulic lift cylinder brackets (1 each side).
6. Remove the 2 clevis-to-hydraulic lift cylinder rod bolts.
7. Fully lower the hydraulic lift cylinders.
8. Release the hydraulic line locators on each side.
9. Disconnect the convertible top pump motor electrical connector.

10. NOTE: Remove the convertible top motor and hydraulic lift cylinders as an assembly.

Remove the 2 nuts and the convertible top pump and motor assembly.

Hydraulic lift cylinder

11. NOTE: Prior to removal, mark the upper and lower hydraulic lines to make sure the hydraulic lift cylinders are positioned correctly.

Remove the hydraulic lines from the lift cylinder.

Motor assembly

12. NOTE: Prior to removal, mark the hydraulic lines to make sure the motor is positioned correctly.

Remove the hydraulic lines from the convertible top motor assembly.

Installation

Motor assembly

1. NOTE:
- Make sure each fitting is installed in the correct position on the folding top hydraulic component.
- Make sure the tetra seal is installed in the bottom of each of the folding top hydraulic motor ports before attaching the hose fittings.
- Apply thread locker to the fitting threads.

Install the hydraulic lines onto the motor assembly fittings.
- Tighten to 4 Nm (35 lb-in).

Hydraulic lift cylinder

2. NOTE:
- Make sure each fitting is installed in the correct position on the folding top hydraulic component.
- Make sure the tetra seal is installed in the bottom of each of the folding top hydraulic lift cylinder ports before attaching the upper and lower hose fittings.
- Apply thread locker to the fitting threads.

Install the hydraulic lines onto the hydraulic lift cylinder fittings.
- Tighten to 4 Nm (35 lb-in).

Hydraulic system
3. Bleed the hydraulic system.

4. NOTE: Install the convertible top motor and hydraulic lift cylinders as an assembly.

Position the convertible top motor and hydraulic lift cylinders and install the convertible top motor nuts.
- Tighten to 4 Nm (35 lb-in).

5. Connect the convertible top motor electrical connector.
6. Engage the hydraulic line locators on each side.
7. Install the 2 clevis-to-hydraulic lift cylinder rod bolts.
- Tighten to 17 Nm (13 lb-ft).

8. Position the hydraulic lift cylinders and install the 2 brackets and the 2 bolts.
- Tighten to 17 Nm (13 lb-ft).

9. Install the 2 rear quarter trim panels.
10. Install the rear seat backrest.
11. Raise the convertible top.
