Test G: Panic Feature Is Inoperative/Does Not Operate Correctly

PINPOINT TEST G: PANIC FEATURE IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

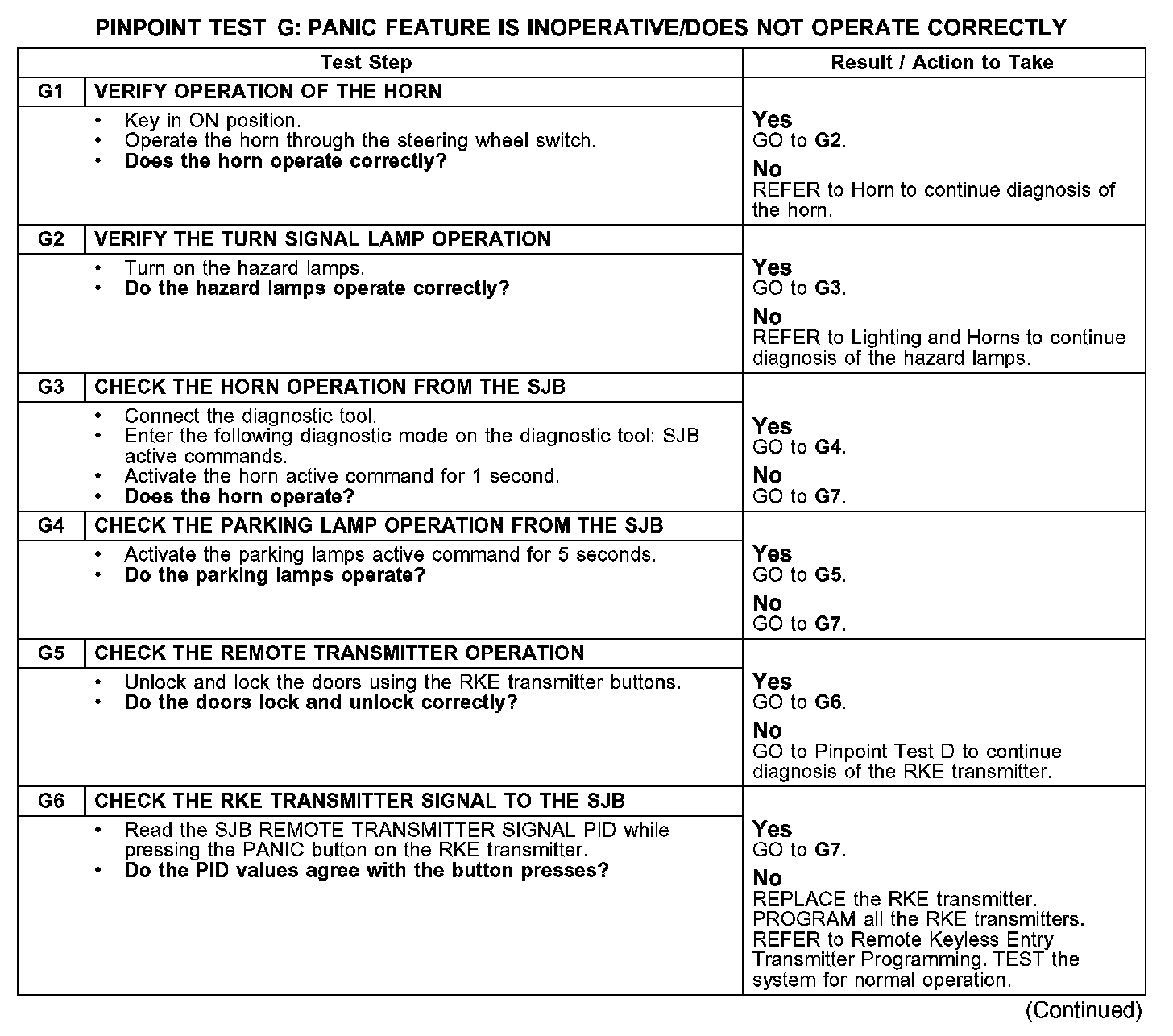

G1-G6:

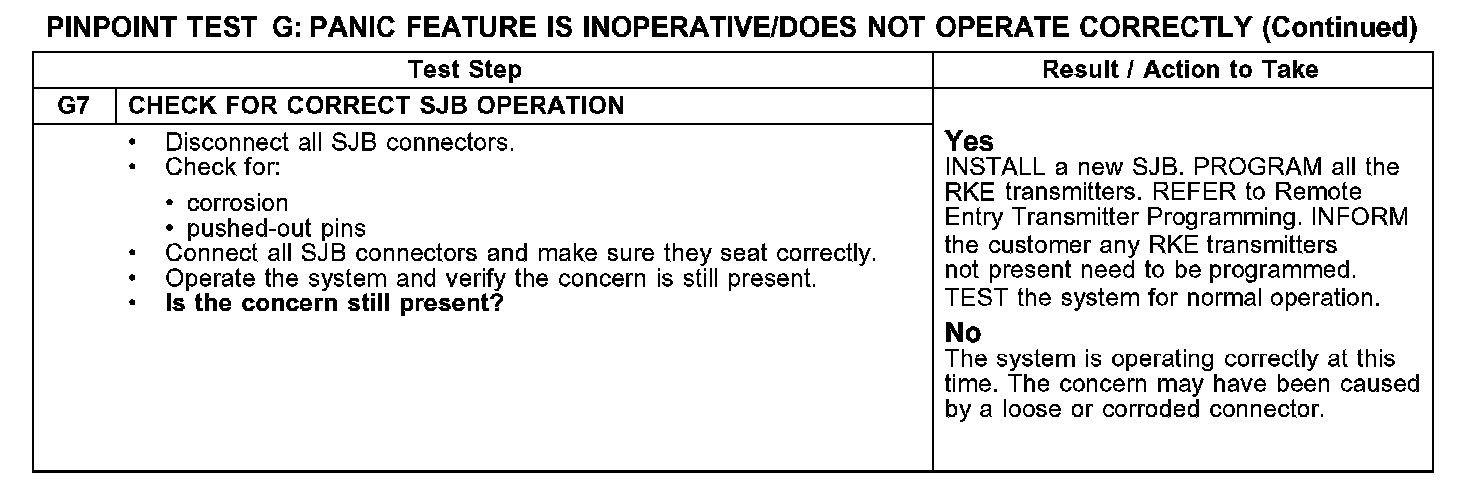

G7:

Normal Operation
When the remote keyless entry (RKE) transmitter PANIC button is pressed, the smart junction box (SJB) grounds the horn relay which supplies voltage to activate the horn. The SJB also grounds the turn signal lamp relay which supplies voltage to activate the turn signal lamps.

Possible Causes
- RKE transmitter
- SJB
