Test D: The Doors Do Not Lock/Unlock Using The Remote Keyless Entry (RKE) Transmitter

PINPOINT TEST D: THE DOORS DO NOT LOCK/UNLOCK USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER

D1-D5:

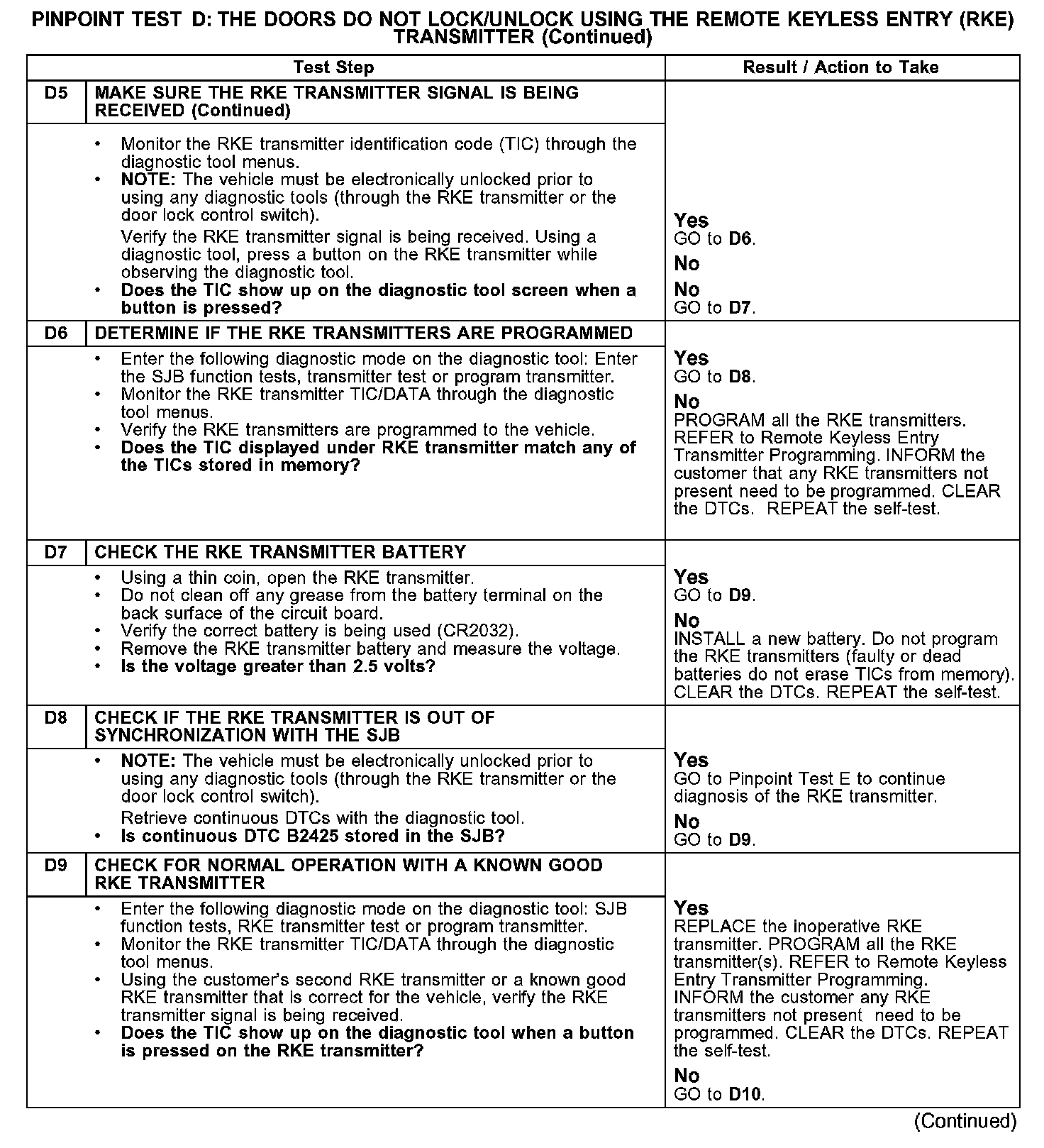

D5-D9:

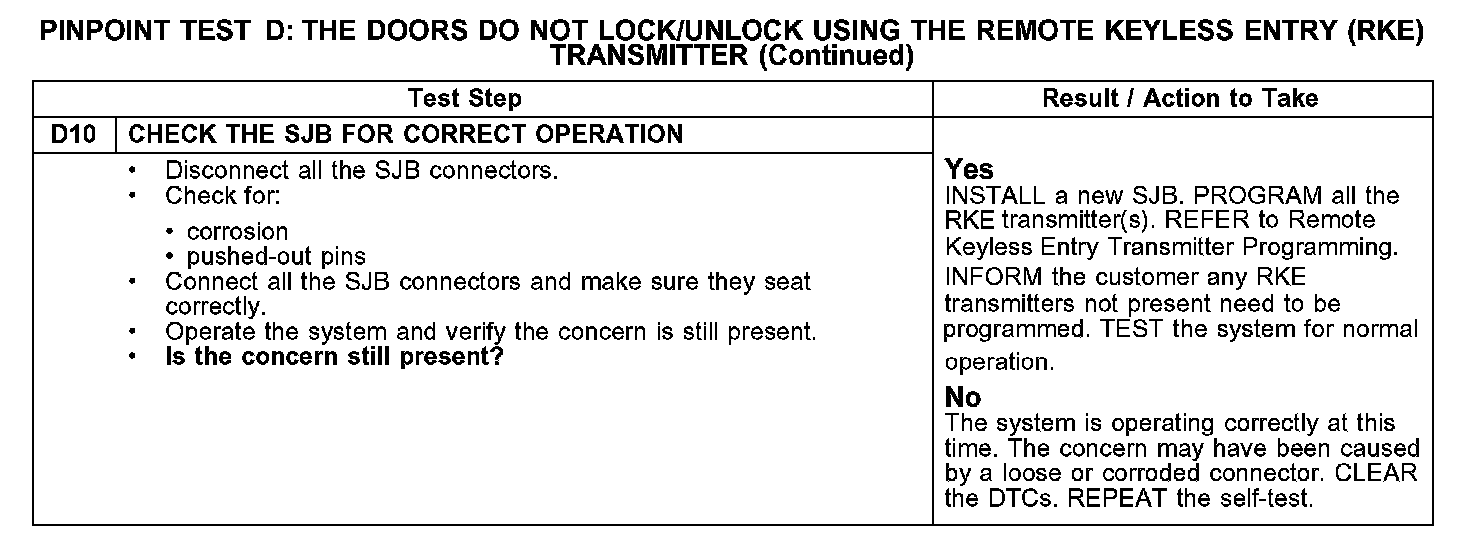

D10:

Normal Operation
Remote locking and unlocking of the doors is accomplished by the smart junction box (SJB) receiving a command message from the RKE transmitter. The SJB processes the command provides voltage and ground to the door lock actuators.

All RKE transmitters must be present to begin diagnosis of the RKE system.

Aftermarket or dealer-installed systems may adversely effect the RKE system operation. These systems should be disconnected before diagnosing any RKE concerns.

Possible Causes
- RKE transmitter battery
- RKE transmitter programming
- RKE transmitter
- aftermarket systems
- high power devices
- TV/radio transmission towers
- SJB
