Rear Quarter Trim Panel - Convertible

REAR QUARTER TRIM PANEL - CONVERTIBLE

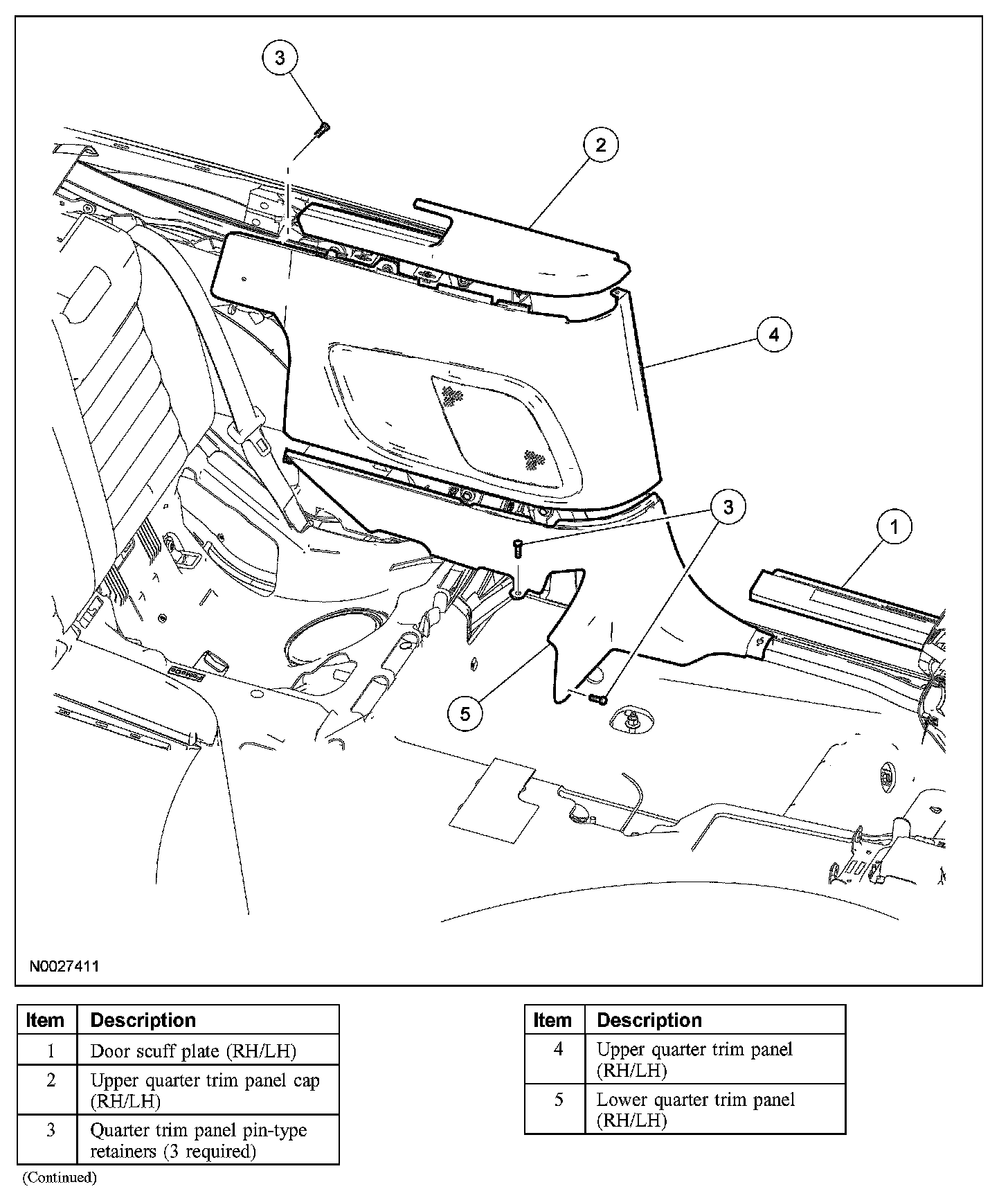

Removal and Installation
1. Remove the door scuff plate.
2. Remove the upper quarter trim panel cap.
3. Remove the rear seat cushion.
4. Remove the pin-type retainer and the upper quarter trim panel.
5. Remove the 2 pin-type retainers and the lower quarter trim panel.
6. To install, reverse the removal procedure.
