Subwoofer Speaker

SUBWOOFER SPEAKER

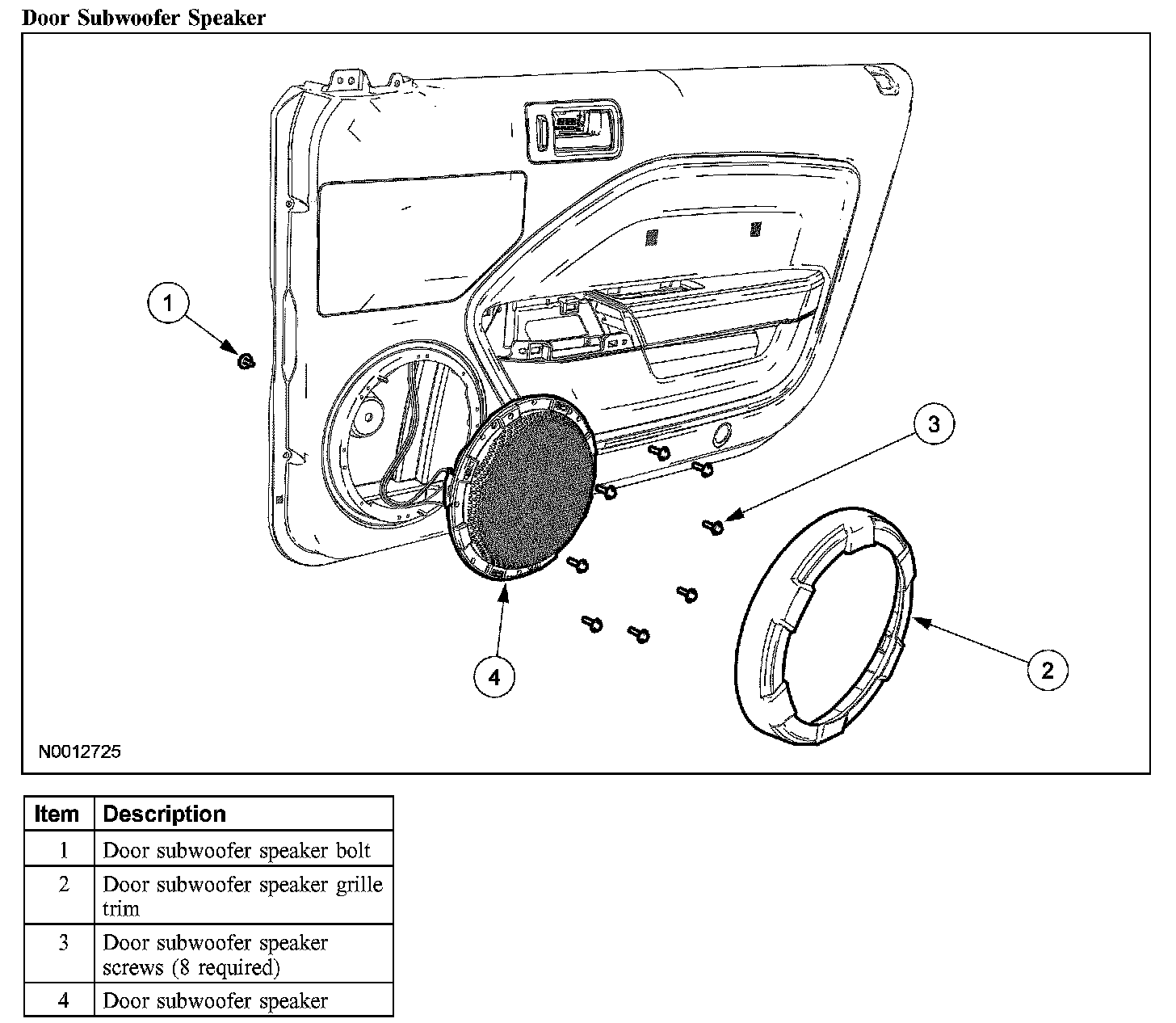

Door Subwoofer Speaker:

Removal and Installation
1. Remove the door trim panel.
2. Remove the door subwoofer speaker grille trim.
3. Remove the door subwoofer speaker bolt.
4. Remove the 8 screws and the subwoofer speaker.
- Push the wiring harness grommet through the door trim panel.

5. To install, reverse the removal procedure.
