Test B: The Anti-Theft System Does Not Arm/Disarm - Using The Remote Keyless Entry (RKE) Transmitter

PINPOINT TEST B: THE ANTI-THEFT SYSTEM DOES NOT ARM/DISARM - USING THE REMOTE KEYLESS ENTRY (RKE) TRANSMITTER

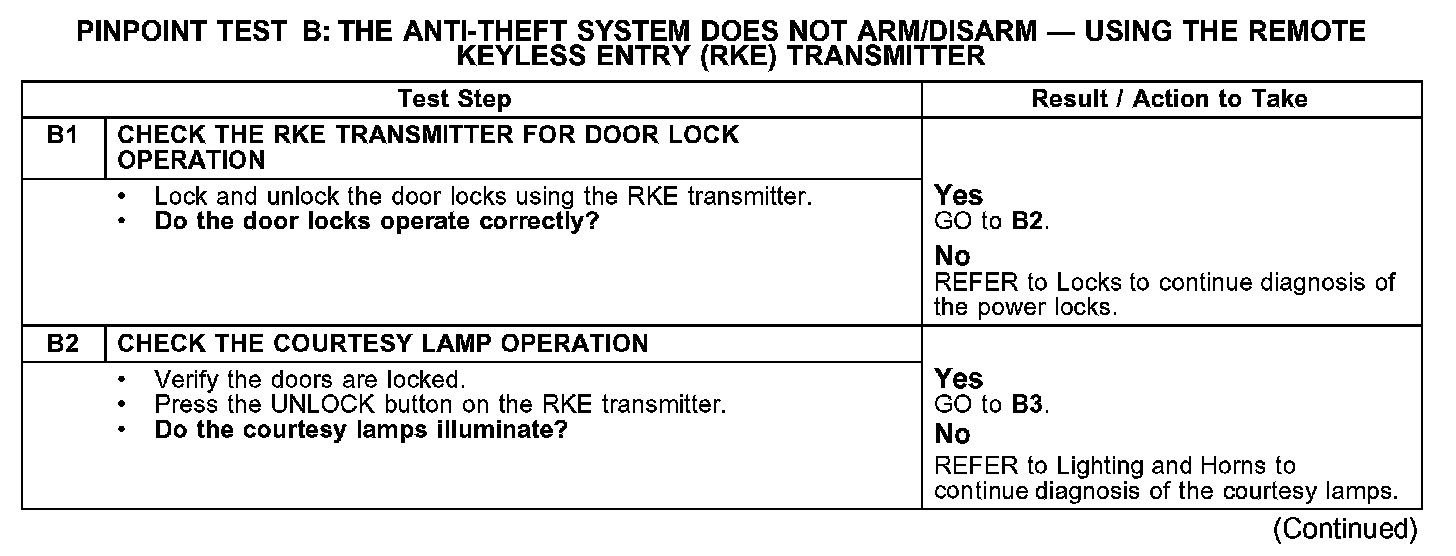

B1-B2:

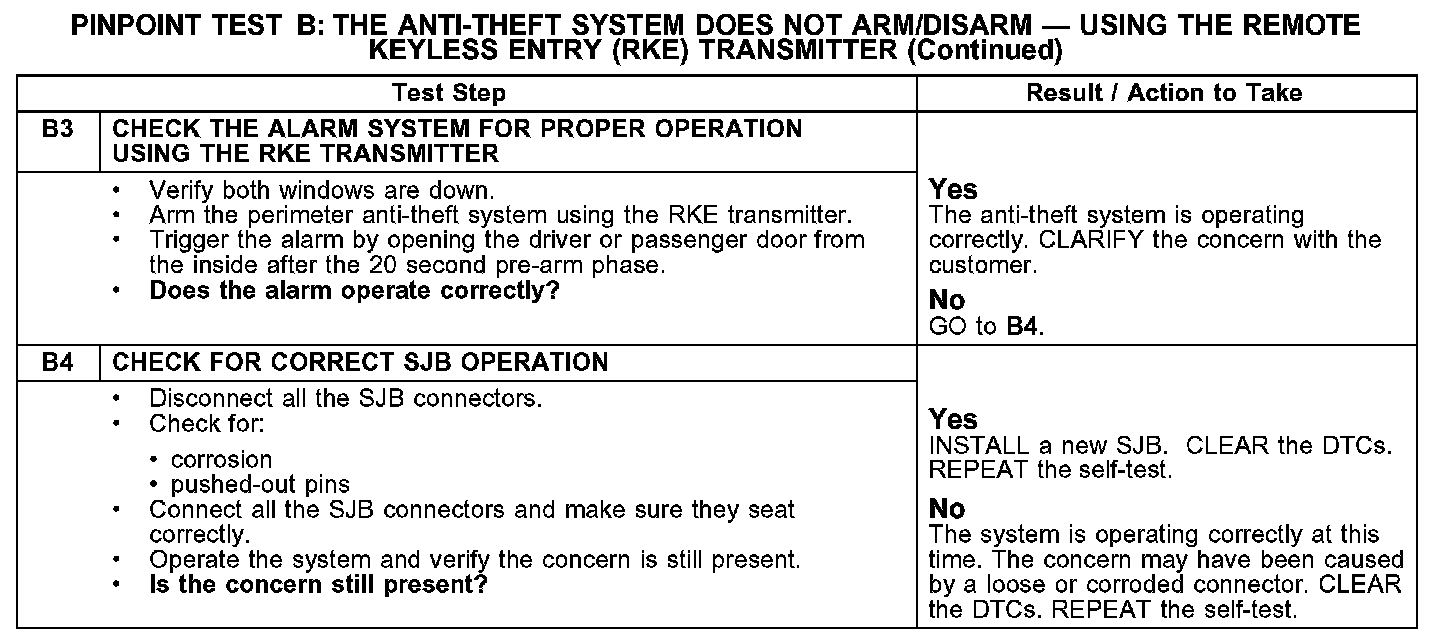

B3-B4:

Normal Operation
The smart junction box (SJB) receives lock/unlock commands from the RKE transmitter. The SJB then arms/disarms the perimeter alarm system.

Possible Causes
- RKE transmitter
- SJB
