Air Register: Service and Repair

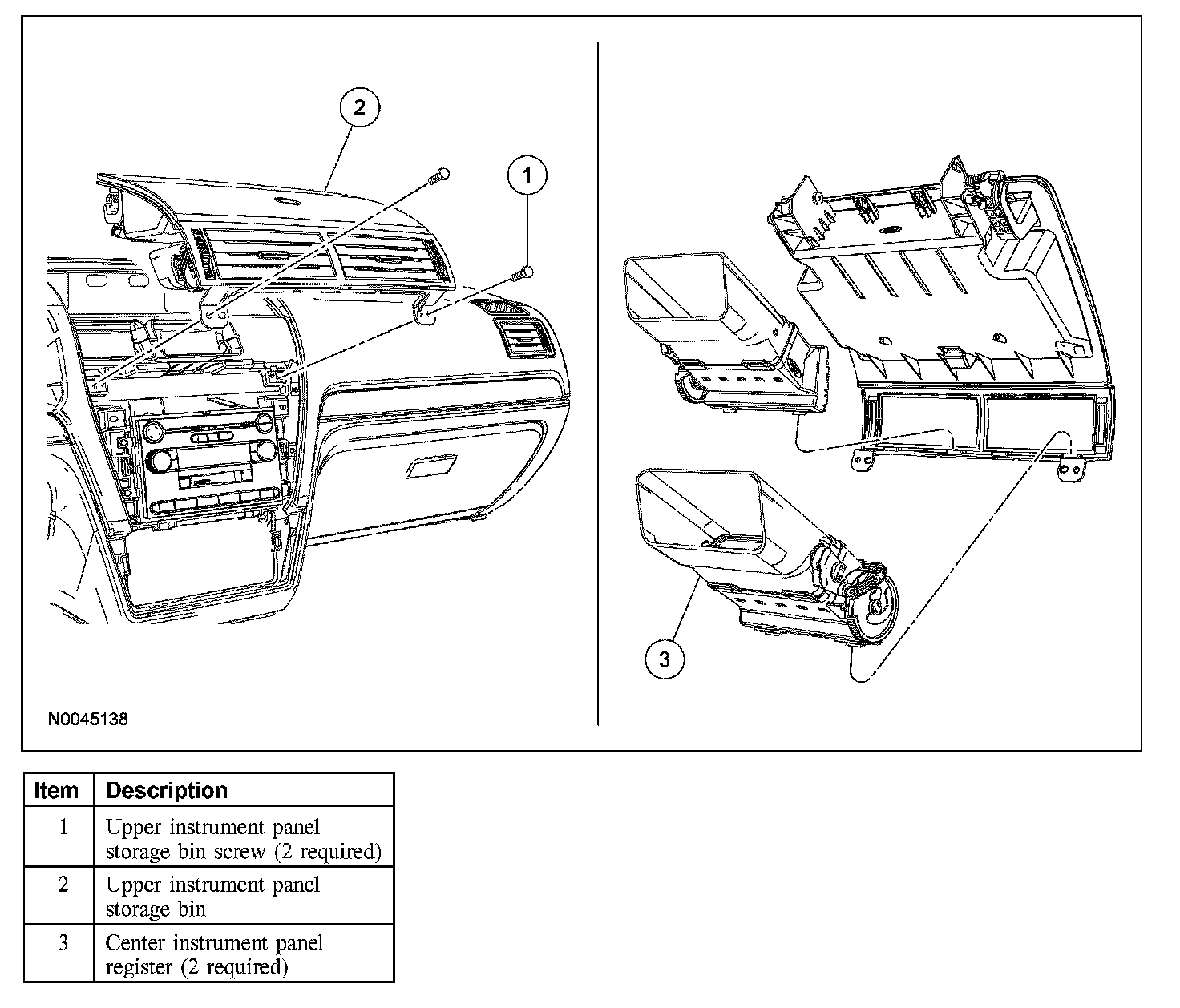

REGISTER - CENTER







Removal and Installation
1. Remove the audio unit bezel.
2. Remove the 2 upper instrument panel storage bin screws.
3. Remove the upper instrument panel storage bin.
4. Release the 3 upper clips on each register and remove the 2 center instrument panel registers.
5. To install, reverse the removal procedure.

REGISTER - DRIVER AND PASSENGER SIDE







Removal and Installation

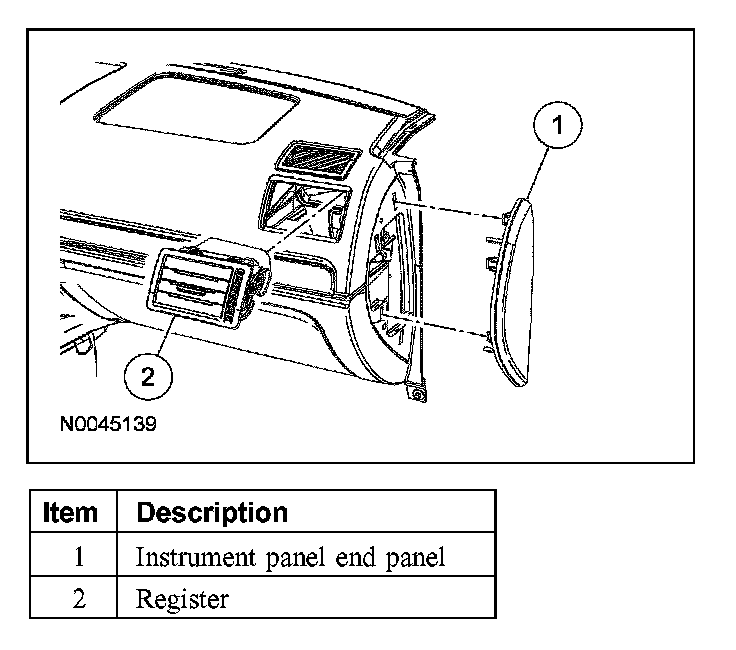

NOTE: Passenger side register shown, driver side similar.

1. Remove the instrument panel end panel.
2. Working through the instrument panel end panel opening, release the 2 lower register clips and remove the driver or passenger side instrument panel register.
3. To install, reverse the removal procedure.
