Air Duct: Service and Repair

AIR INLET DUCT







Removal and Installation
1. Remove the heater core and evaporator core housing.

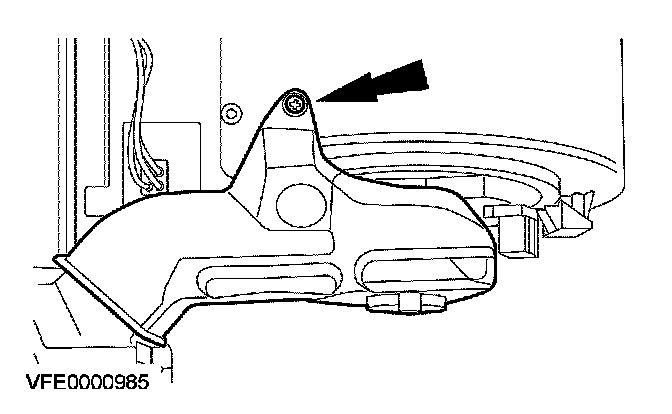

2. Remove the screw and the floor duct.







3. Remove the air inlet duct.

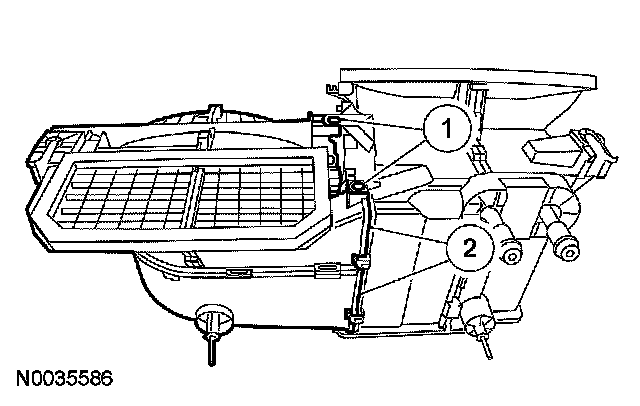

1 Remove the 2 screws.

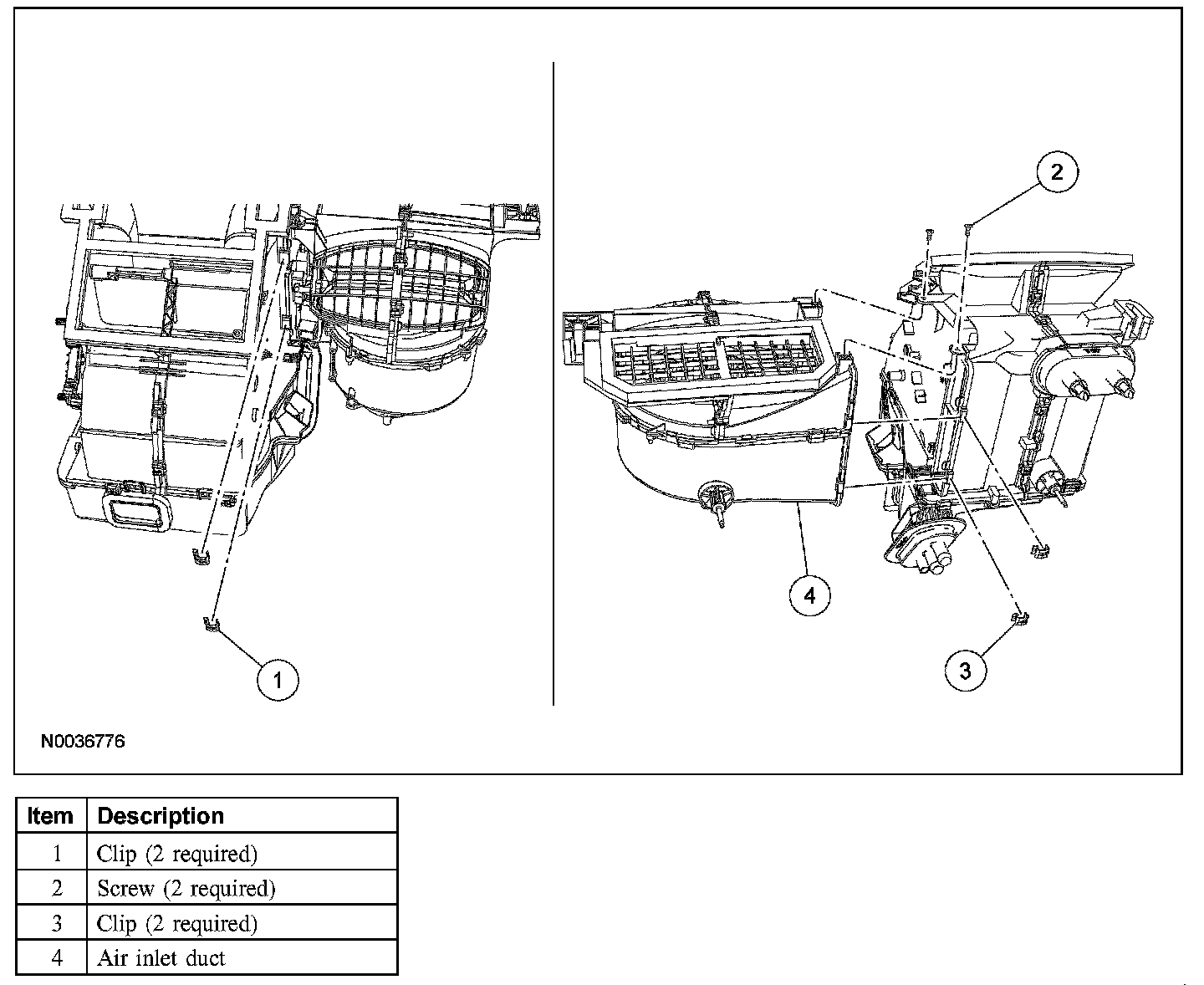

2 Remove the 4 retaining clips and the air inlet duct.

4. To install, reverse the removal procedure.
