Air Injection Pump: Service and Repair

SECONDARY AIR INJECTION (AIR) PUMP

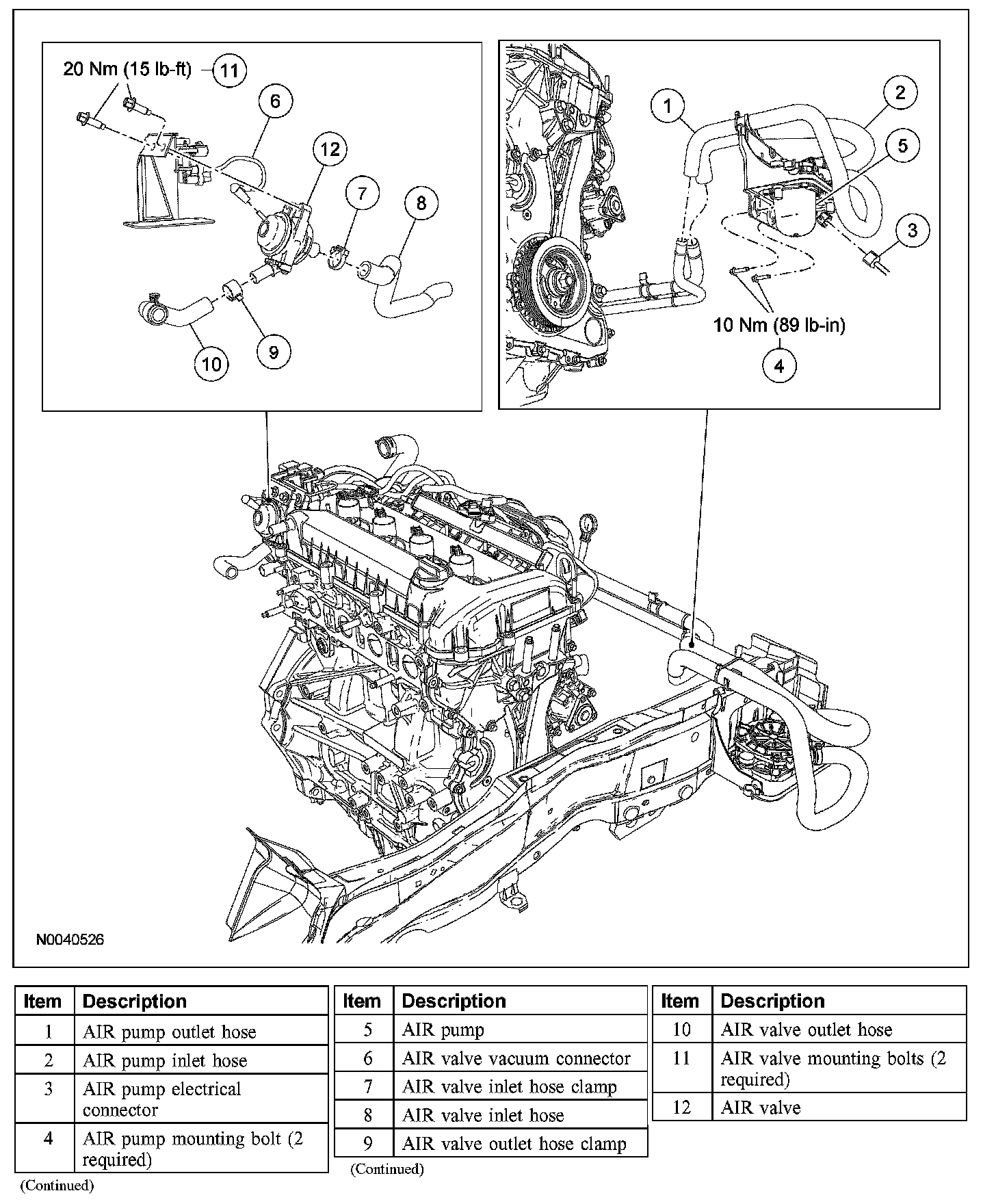

Exploded View

Removal and Installation
1. Remove the RH headlamp assembly.

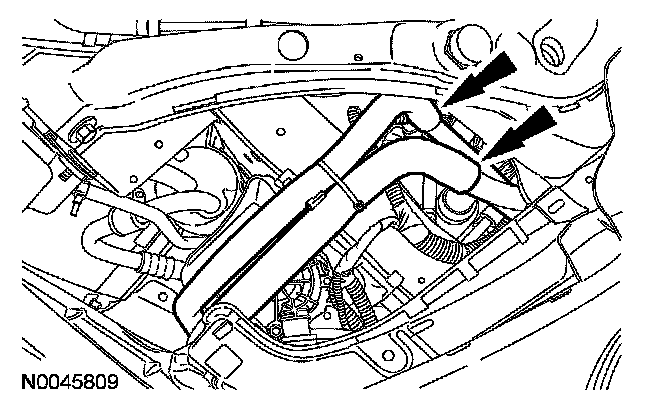

2. Disconnect the secondary air injection (AIR) pump outlet and inlet hoses from the AIR tubes.
3. Disconnect the AIR pump electrical connector.
4. Remove the 2 AIR pump retaining bolts.
- To install, tighten to 10 Nm (89 lb-in).

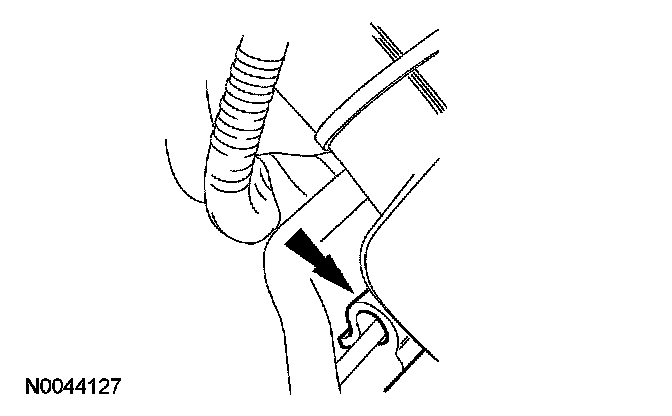

5. Lift up on the AIR pump assembly to release the pump from the RH front frame rail and remove the AIR pump assembly.
6. To install, reverse the removal procedure.
