Home >> Ford >> 2006 >> Focus L4-2.0L VIN N >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module

Body Control Module

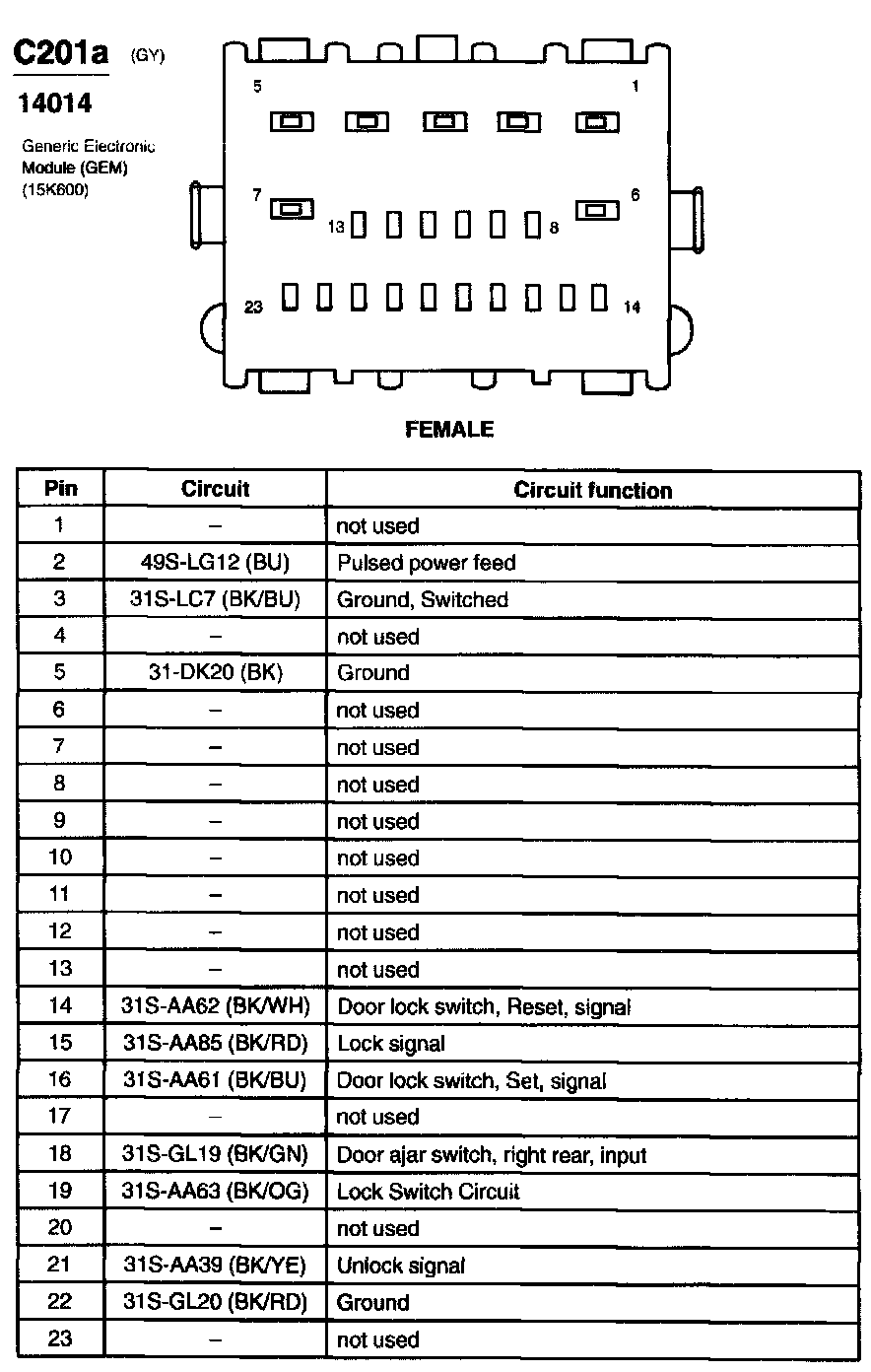

C201a:

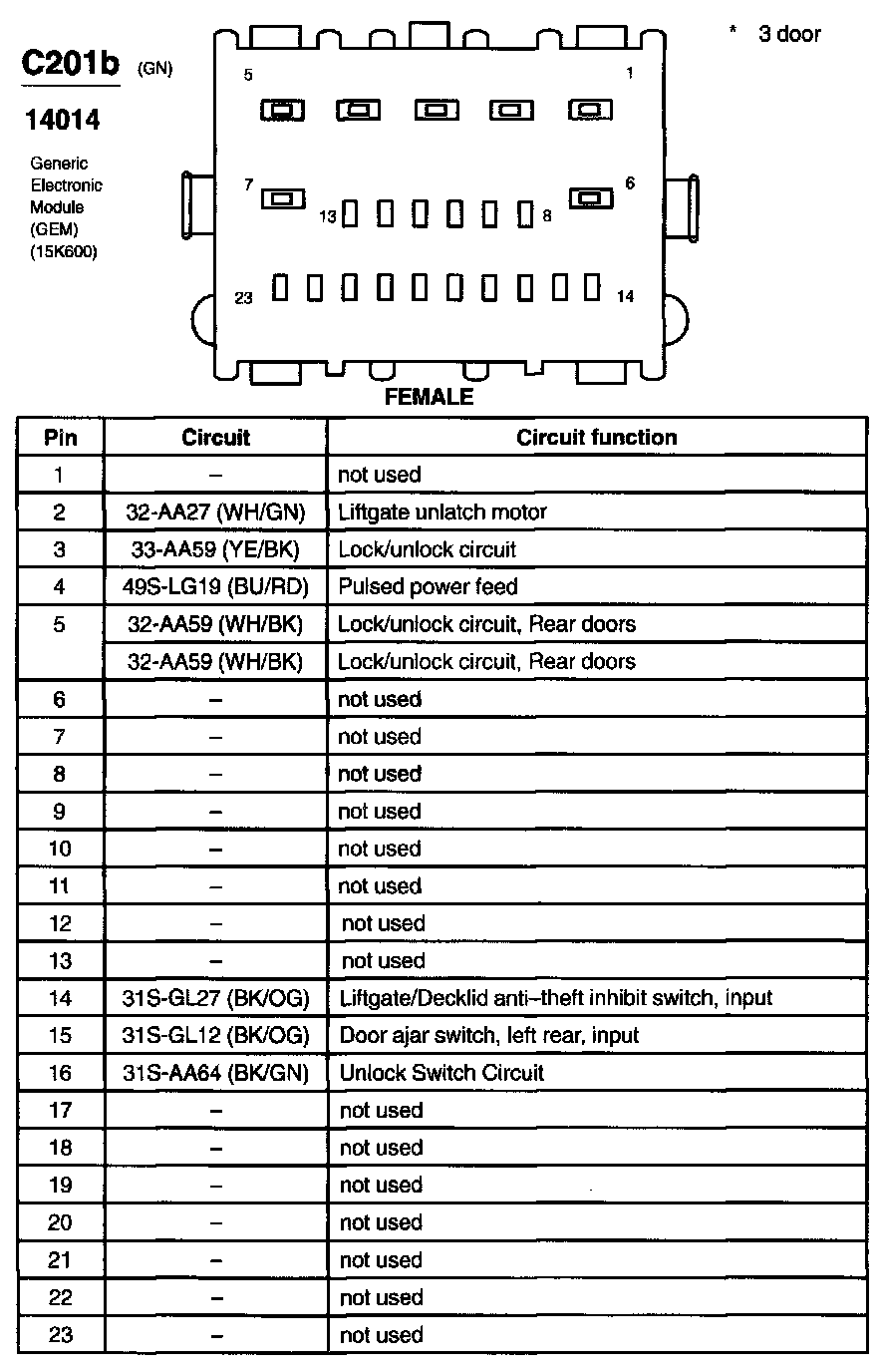

C201b:

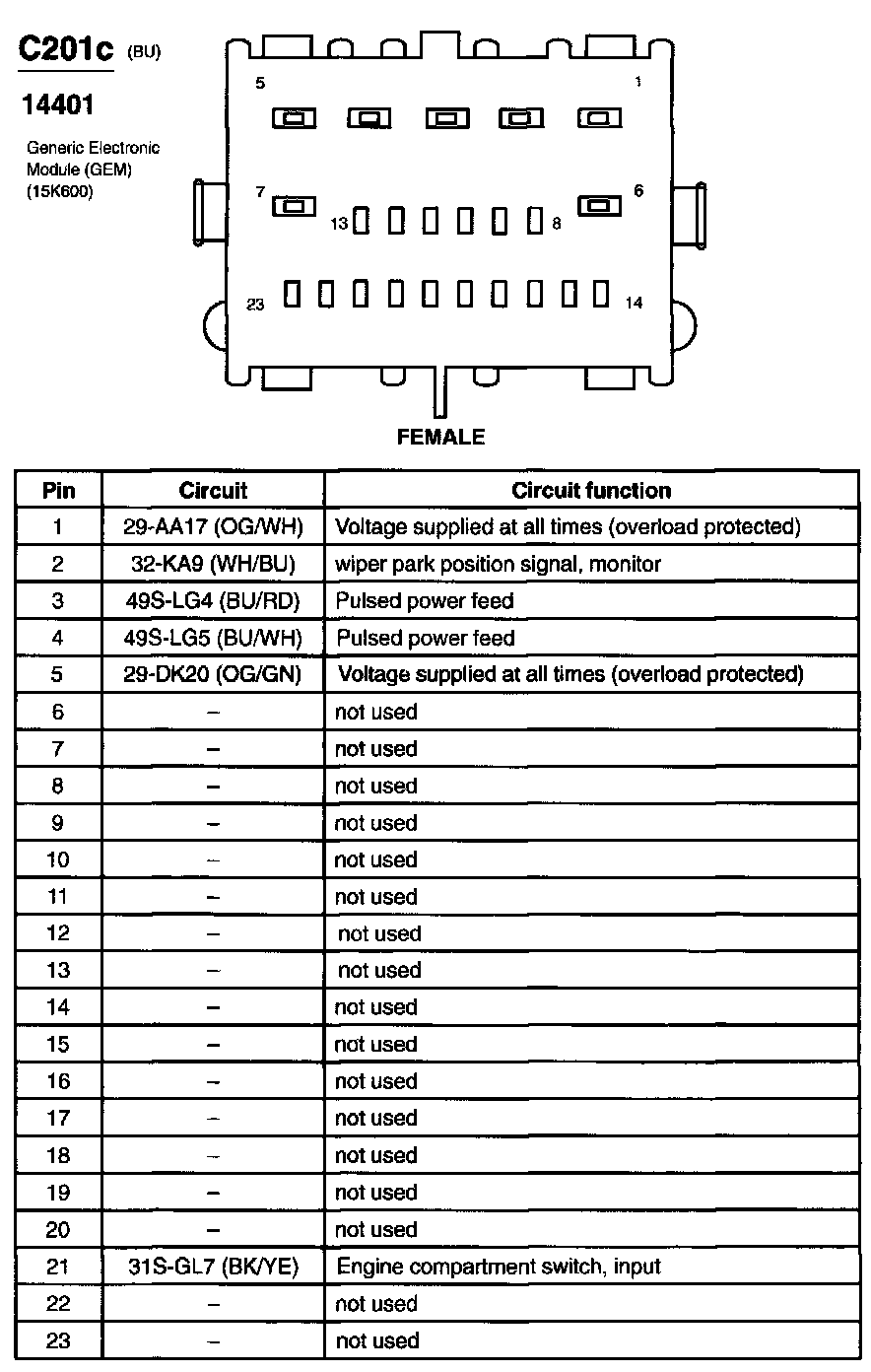

C201c:

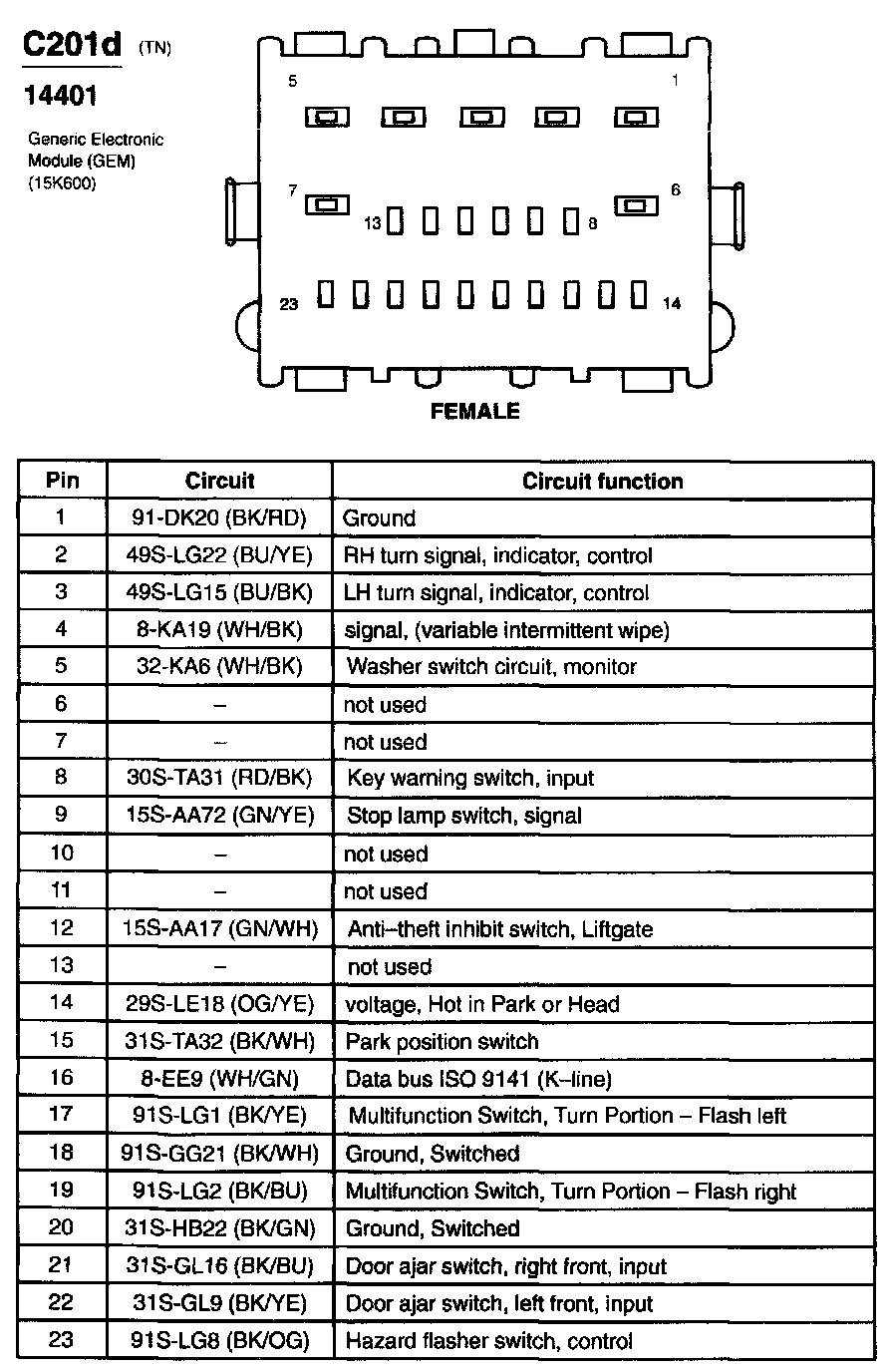

C201d:

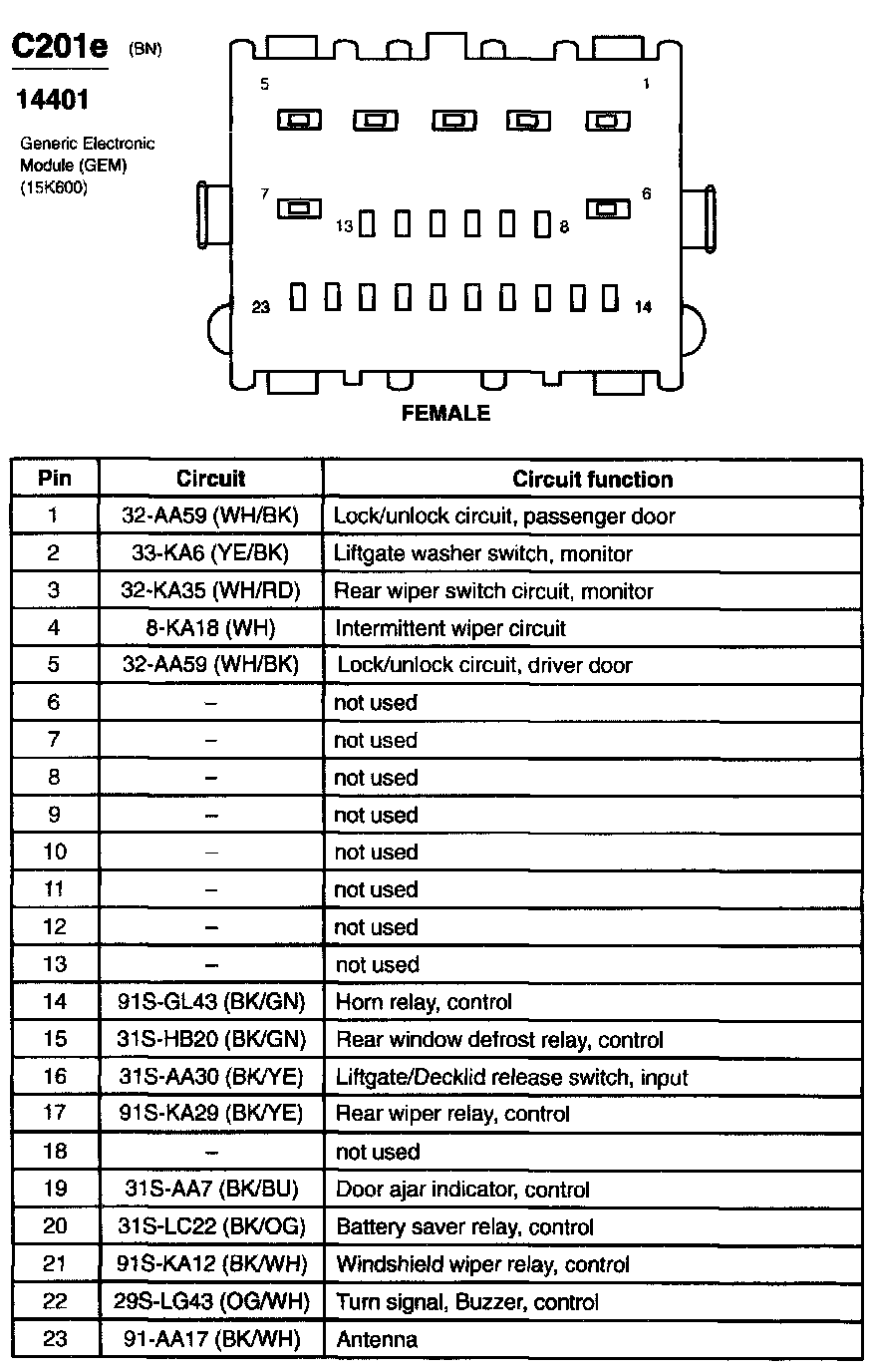

C201e:
