Air Inlet Duct

AIR INLET DUCT

REMOVAL
1. Remove the heater core and evaporator core housing.

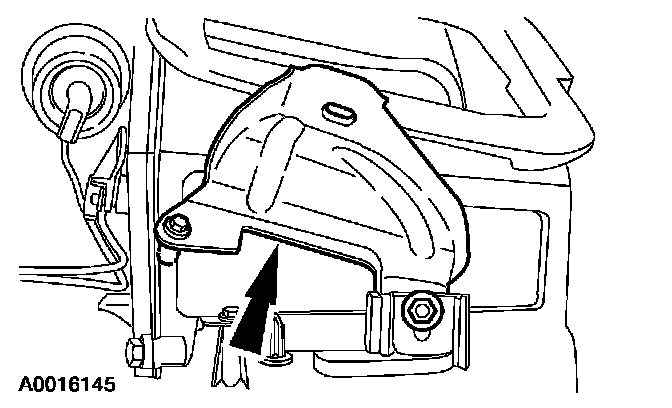

2. Remove the bracket.

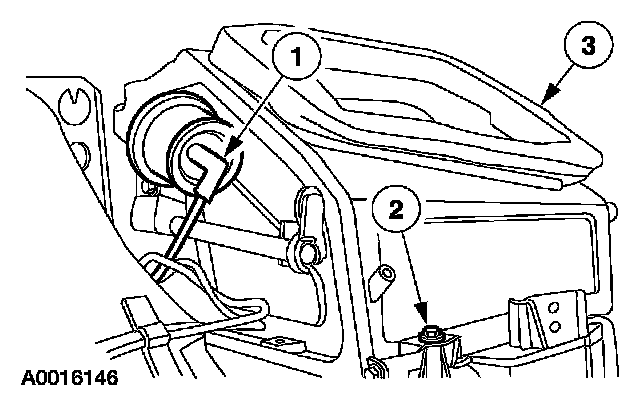

3. Remove the air inlet duct.
1 Disconnect the vacuum hose.
2 Remove the three screws.
3 Remove the recirculation air duct

INSTALLATION
1. To install, reverse the removal procedure.
