Rear Bumper Cover - Wagon

REAR BUMPER COVER - WAGON

Removal and Installation
1. Remove the load space trim panel.
2. Remove the spare tire.

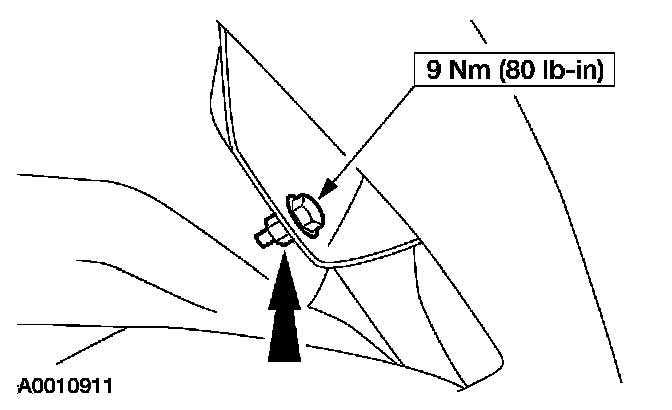

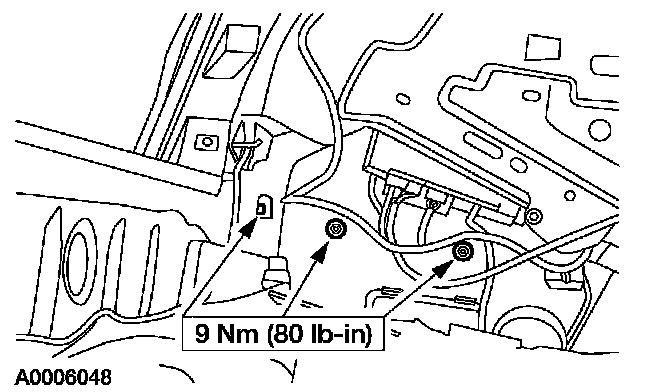

3. Remove the LH rear bumper cover to rear quarter panel nuts.

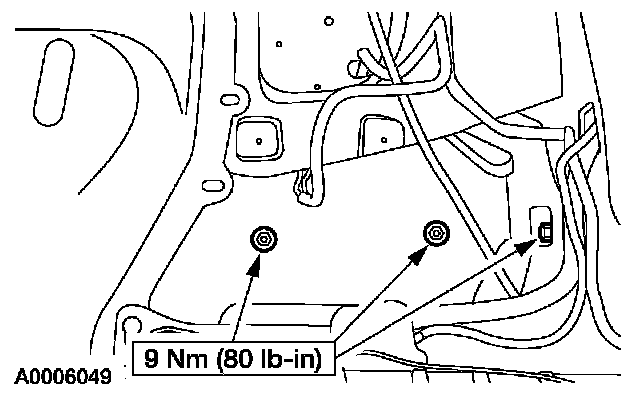

4. Remove the RH rear bumper cover panel nuts.

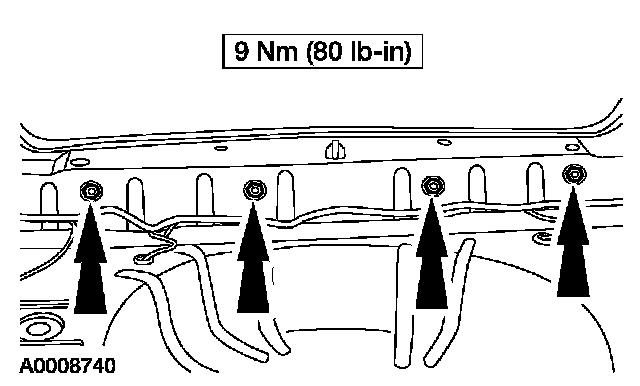

5. Remove the rear bumper cover nuts.
6. Raise and support the vehicle.

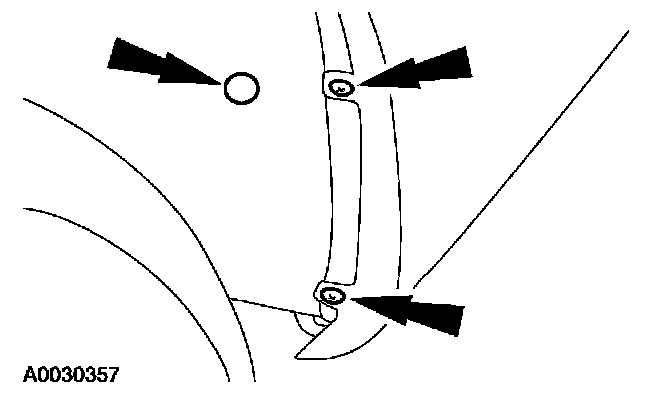

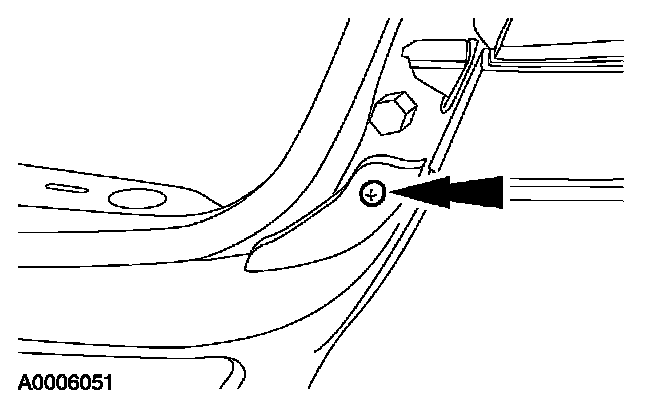

7. Remove the four splash shield screws, two pin-type retainers and position the LH and RH splash shields aside to access the rear bumper cover attachment bolts.







8. Remove the two rear bumper cover to rear quarter panel nuts.







9. Remove the pin-type retainers.

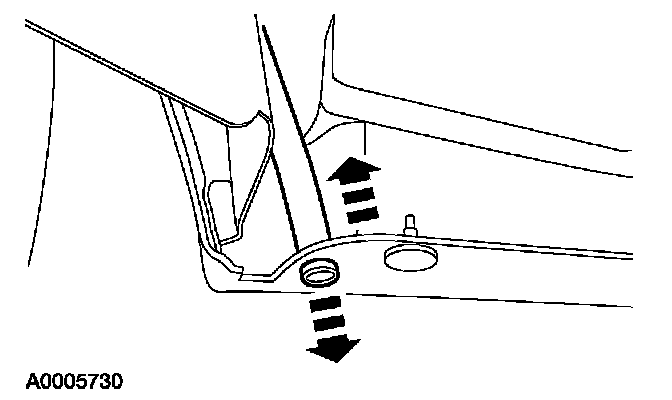

10. Disconnect the drain tube.

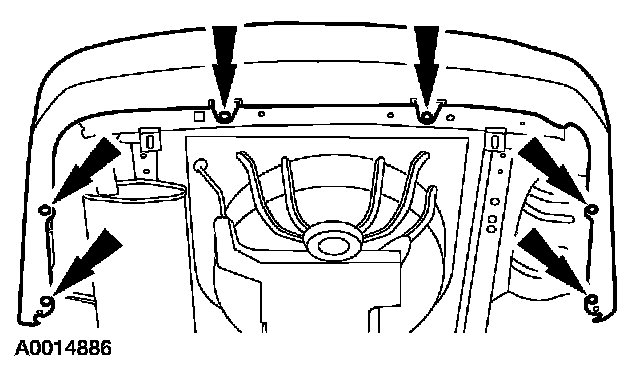

11. Remove the rear bumper cover screws.

12. NOTE: The rear side marker light connector is between the cover and the body and must be disconnected when removing the bumper cover.

Remove the rear bumper cover.

13. To install, reverse the removal procedure.
