Power Antenna

POWER ANTENNA

REMOVAL
1. Remove the audio unit.

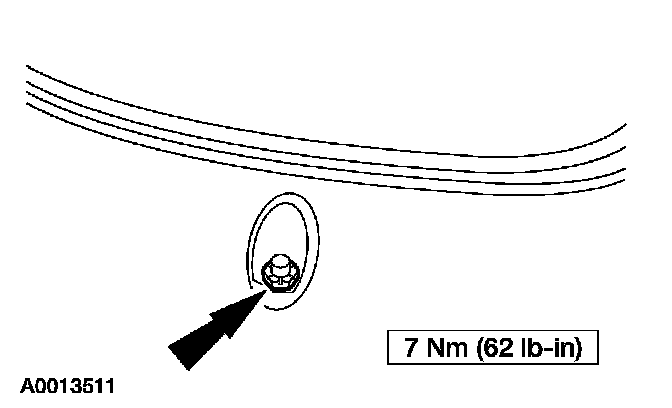

2. Remove the antenna mast nut and stanchion.

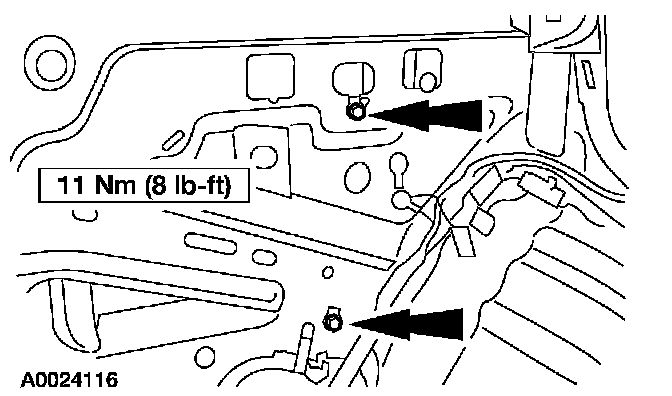

3. Remove the nut and the bolt from inside the vehicle.
4. Lower the power antenna out from behind the quarter panel.

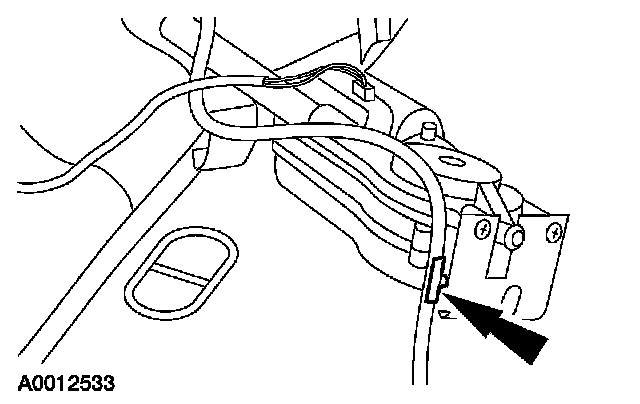

5. Disconnect the pin-type retainer for the lead-in cable.
6. Disconnect the electrical connector and lead-in cable and remove the antenna assembly.

INSTALLATION
1. To install, reverse the removal procedure.
