Home >> Ford >> 2005 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Bussed Electrical Center (BEC) C1035d

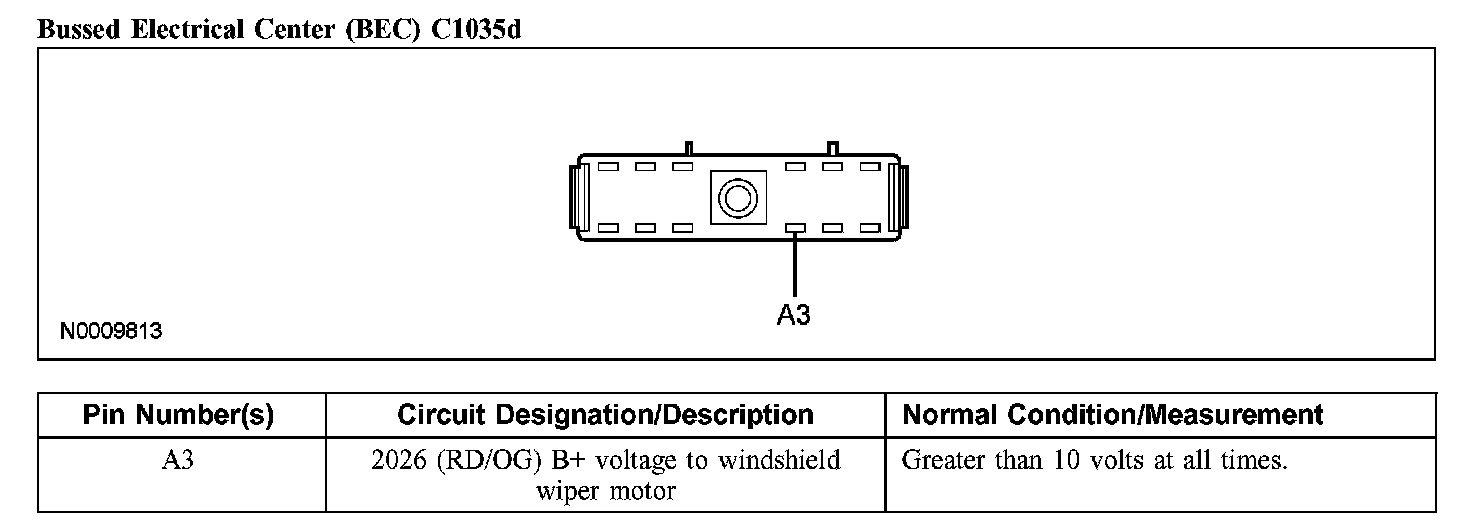

Bussed Electrical Center (BEC) C1035d

Bussed Electrical Center (BEC) C1035d:
