Heated Rear Window Relay C1099

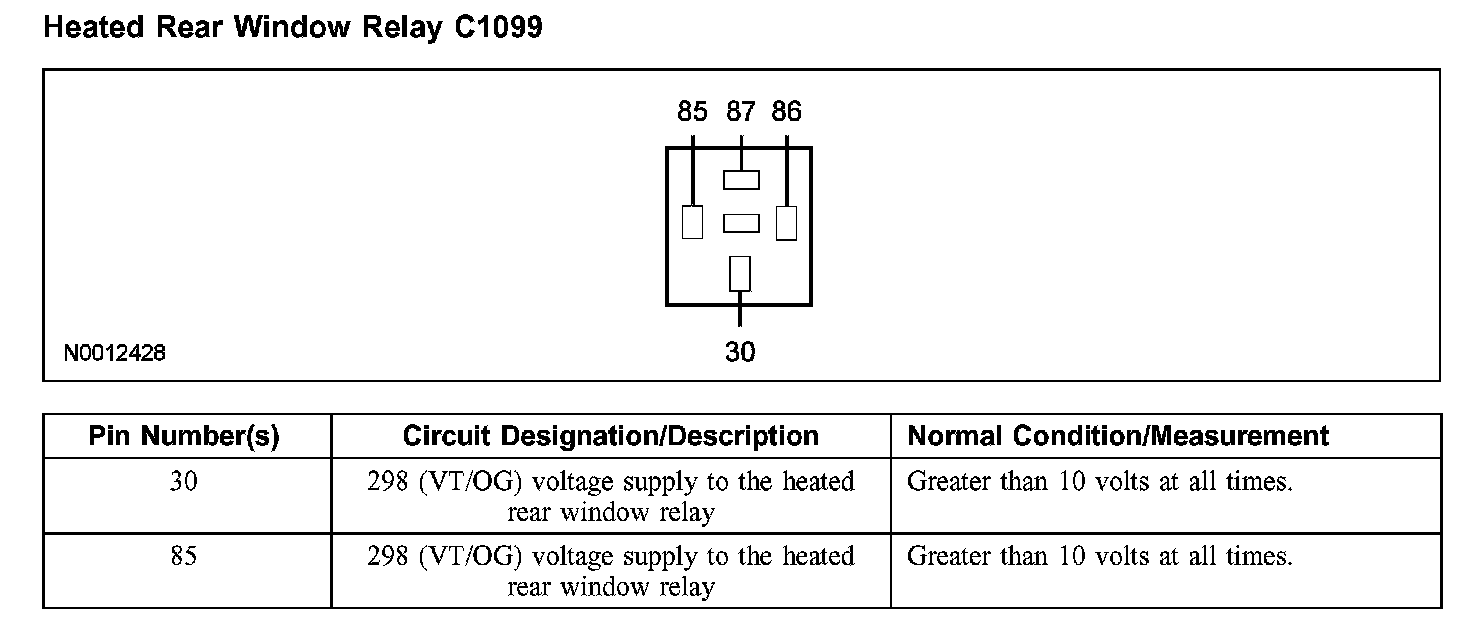

Heated Rear Window Relay C1099 (Part 1):

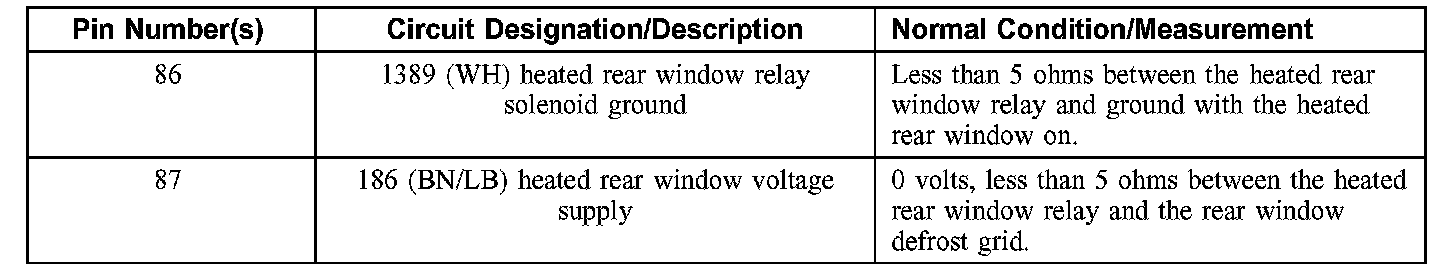

Heated Rear Window Relay C1099 (Part 2):
