Axle Housing Bushing

Axle Housing Bushing

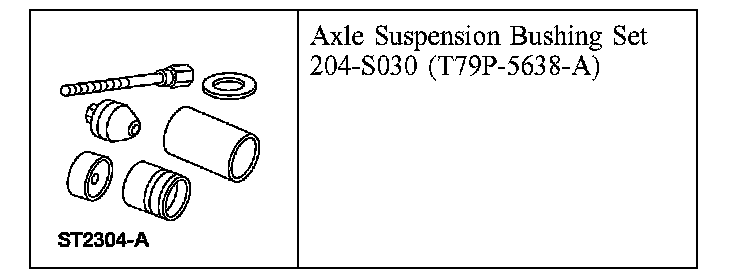

Special Tool(s)

Removal

CAUTION: Suspension fasteners are critical components because they affect performance of vital components and systems and their failure can result in major service expense. A new component with the same component number must be installed if installation becomes necessary. If substitution is necessary, the component must be of the same finish and property class. Torque values must be used as specified during reassembly to make sure of correct retention of these components.

1. Remove the upper suspension arm.

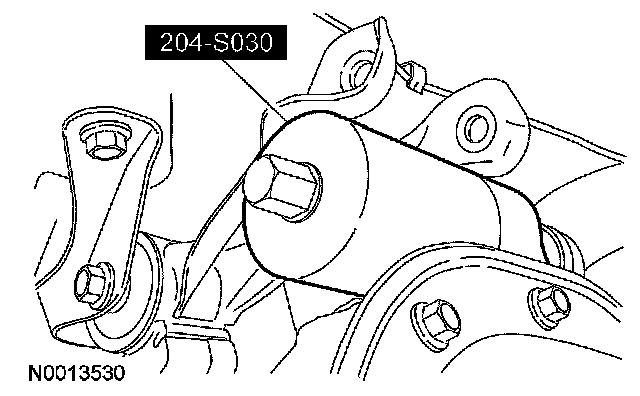

2. Using the special tools remove the bushing.

Installation

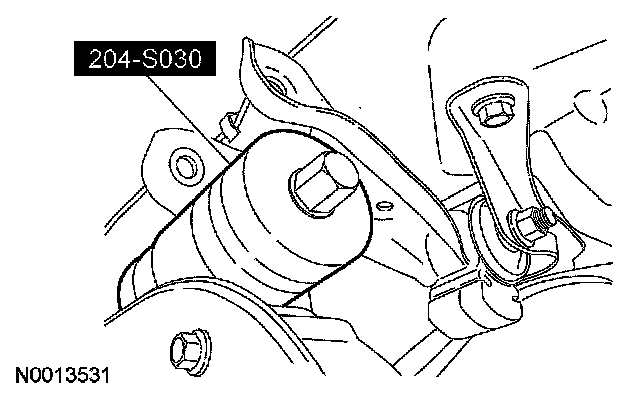

1. Using the special tools install the bushing.

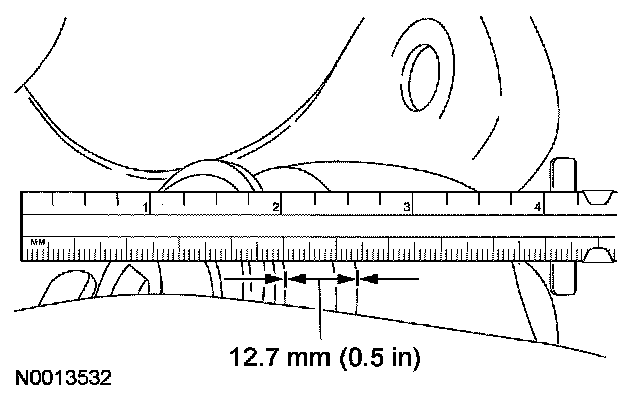

2. Using a ruler measure the bushing as shown. If not within specifications adjust as necessary.
3. Install the upper suspension arm.
