Transmission Fluid Cooler

Transmission Fluid Cooler

Removal





1. Remove the transmission fluid cooler from the vehicle.

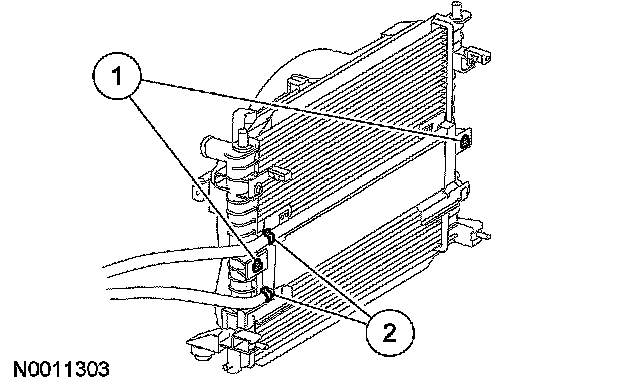

1. Remove the 2 transmission fluid cooler hose clamps and disconnect the hoses.
^ Discard the clamps.
2. Remove the 2 screws and lift the transmission fluid cooler from the lower retaining pockets.

Installation





1. Install the transmission fluid cooler.

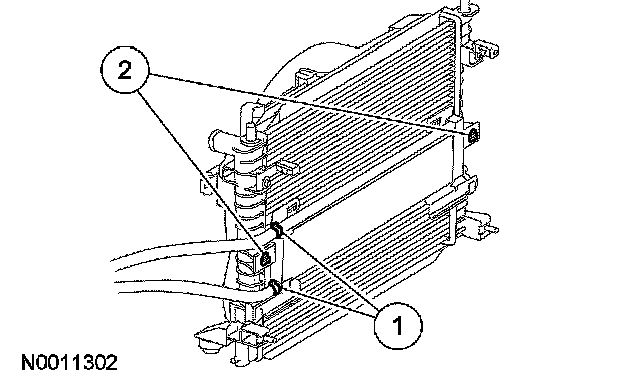

1. Position the transmission fluid cooler in the retaining pockets and install the 2 screws.
^ Tighten to 10 Nm (89 inch lbs.).
2. Connect the transmission fluid cooler hoses to the transmission fluid cooler using new clamps.

2. Fill the transmission with fluid and verify correct operation.
