Home >> Ford >> 2005 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - External Controls >> Test A: The Shift Interlock System Does Not Release/Lock Correctly

Test A: The Shift Interlock System Does Not Release/Lock Correctly

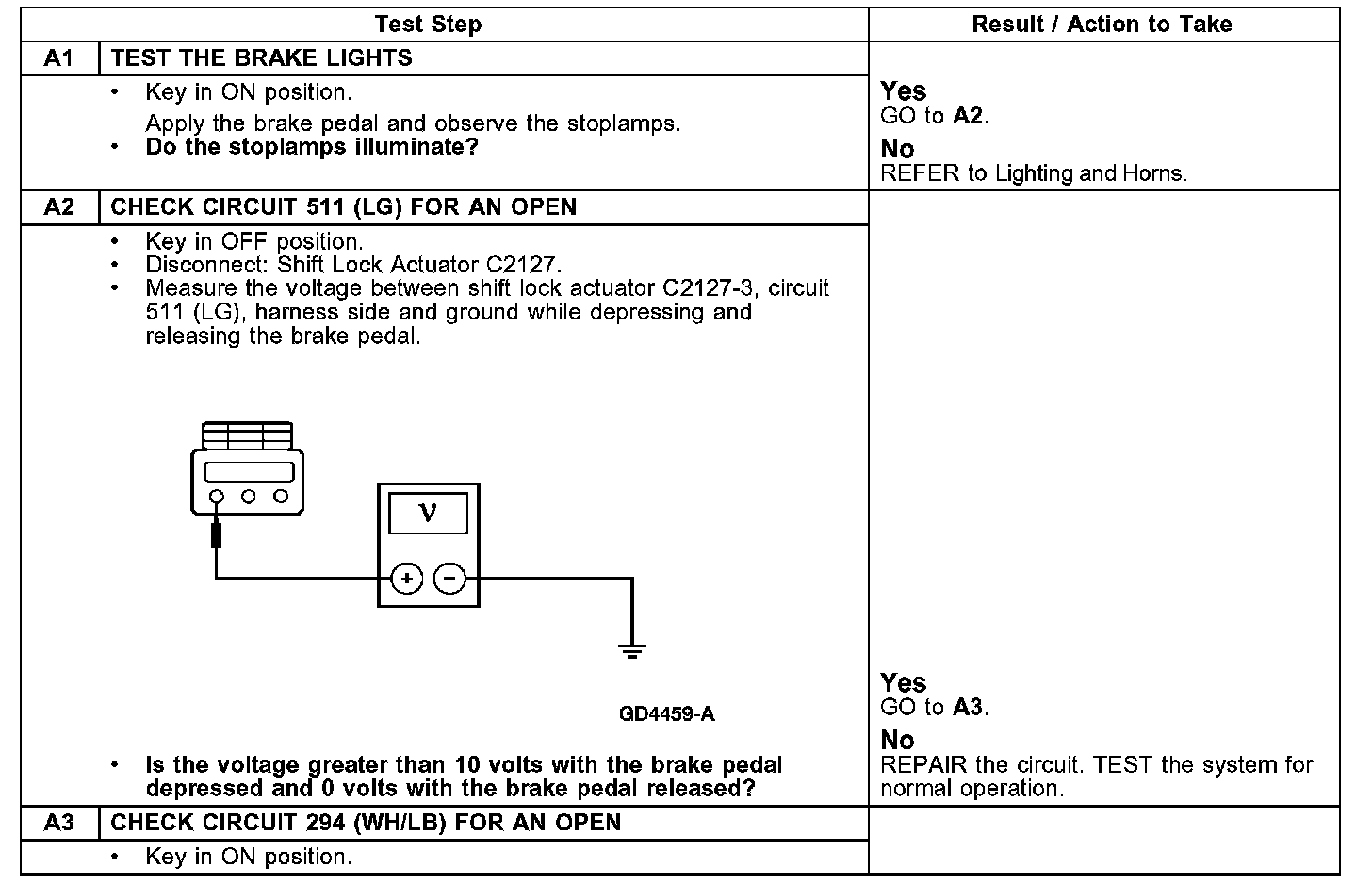

Tests A1 - A3:

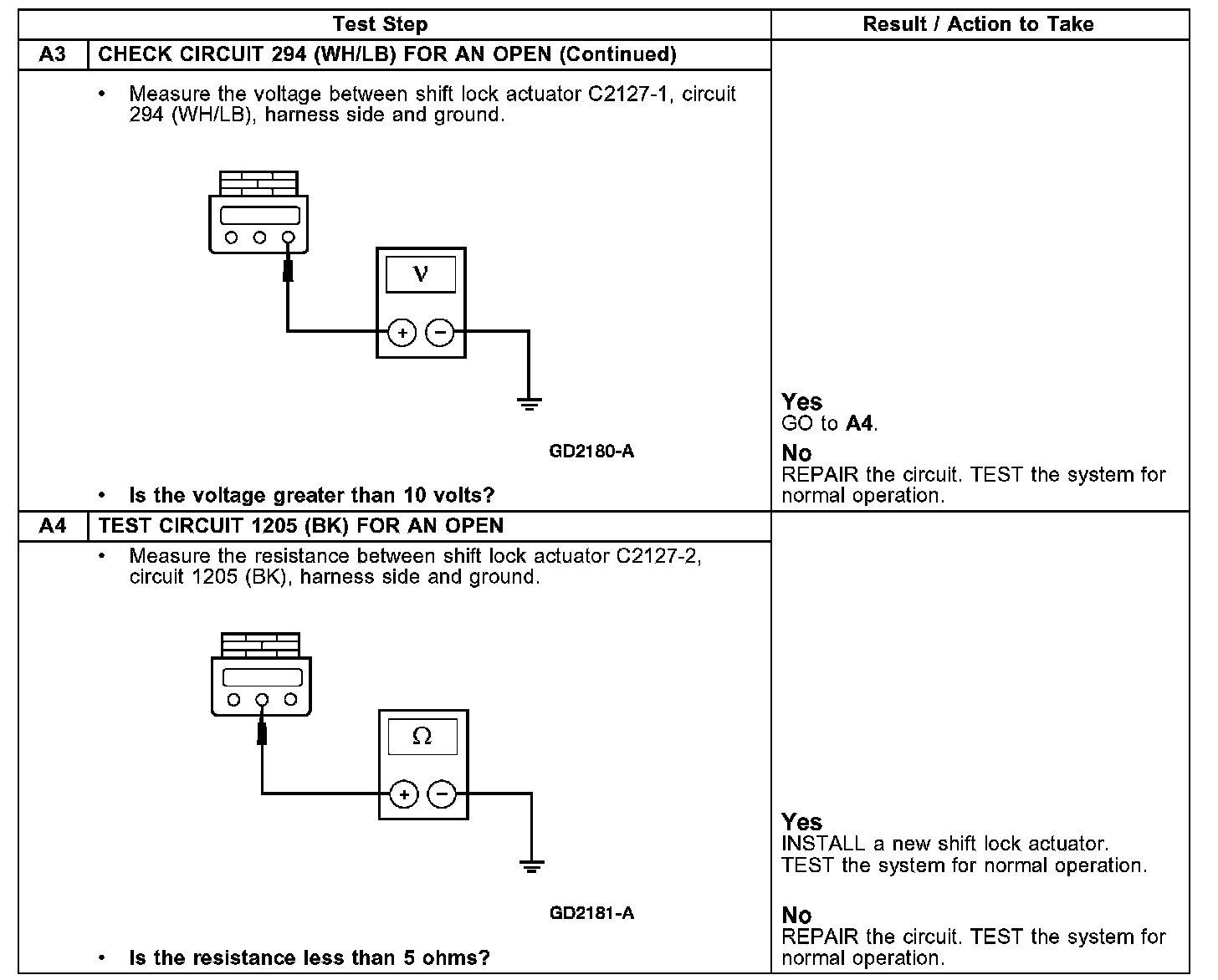

Tests A3 (continued) - A4:
