Stabilizer Bushing: Service and Repair

Stabilizer Bar Bushing

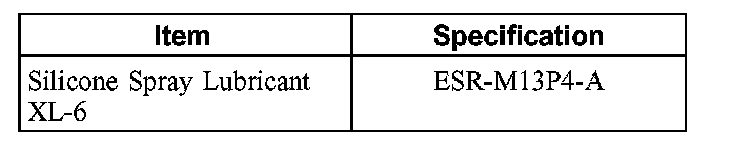

Material

Removal and Installation

CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in major service expense. A new part with the same part number or an equivalent part must be installed, if installation is necessary. Do not use a part of lesser quality or substitute design. Torque values must be used as specified during reassembly to ensure correct retention of these parts.

1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the stabilizer bar.






3. NOTE: To aid removal, coat the necessary parts of the front stabilizer bar with Silicone Spray Lubricant.

Remove the stabilizer bar bushing by sliding if off the stabilizer bar.






4. NOTE: To aid installation, coat the necessary parts of the front stabilizer bar and the inside diameter of the stabilizer bar bushing with Silicone Spray Lubricant.

To install, reverse the removal procedure.
