Test D: No Power in START

PINPOINT TEST D: NO POWER IN START

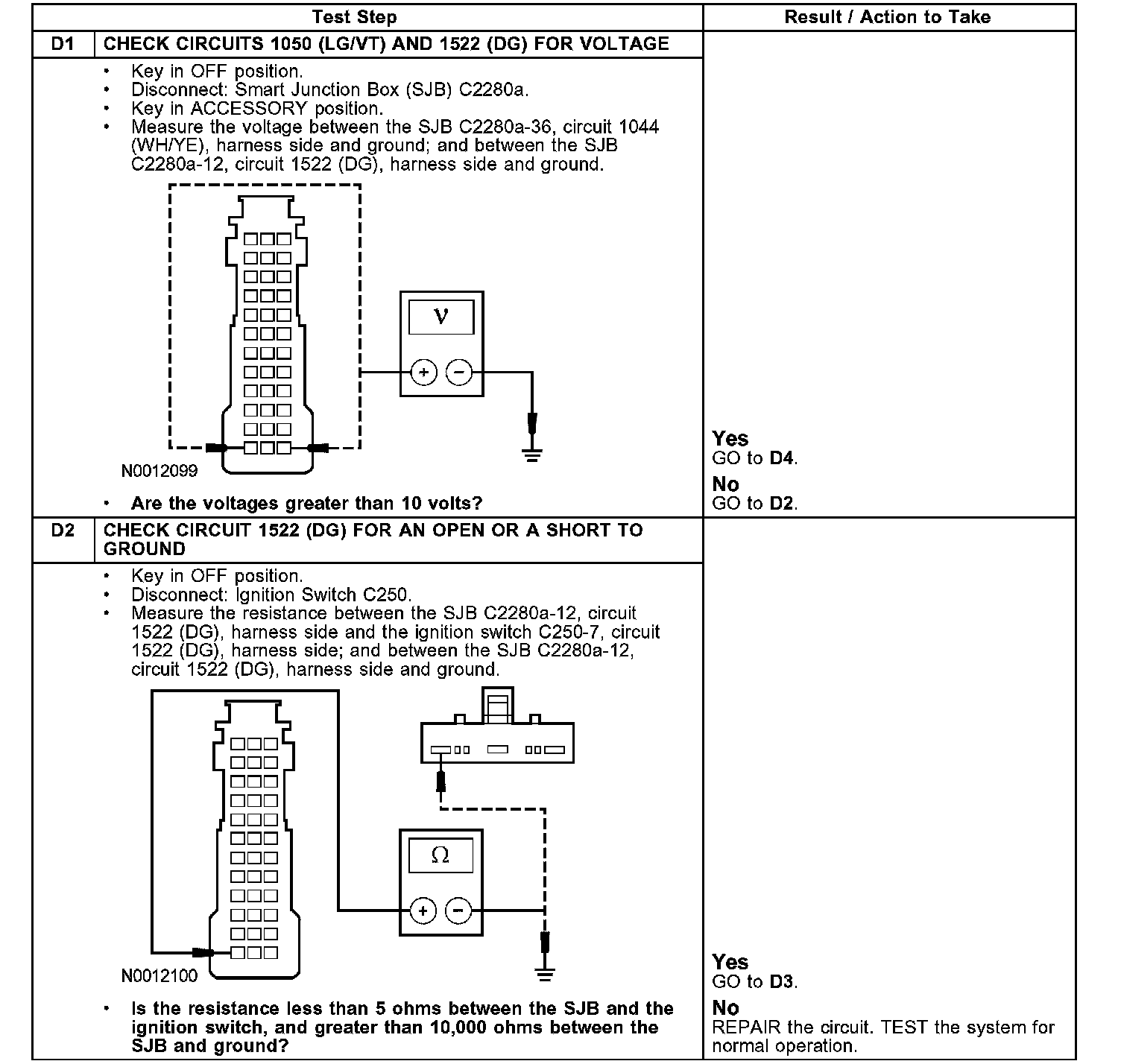

Tests D1 - D2:

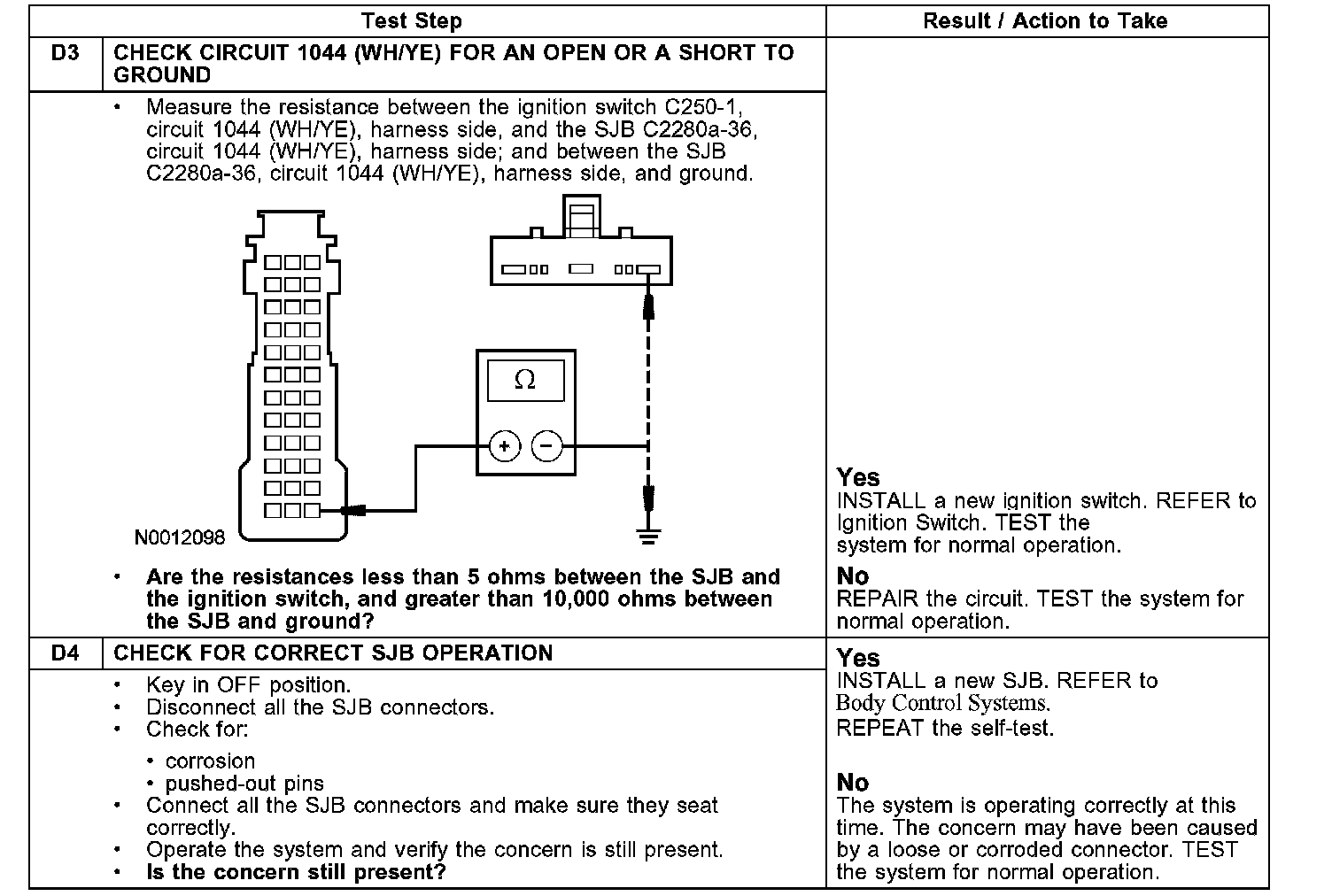

Tests D3 - D4:

Normal Operation
The ignition switch START circuit provides greater than 10 volts through circuits 1522 (DG) and 1044 (WH/YE) to the smart junction box (SJB) when the key is in the START position.

Possible Causes
^ circuit 1044 (WH/YE) open or short to ground
^ circuit 1522 (DG) open or short to ground
^ ignition switch
^ SJB
