Multifunction Switch

Multifunction Switch

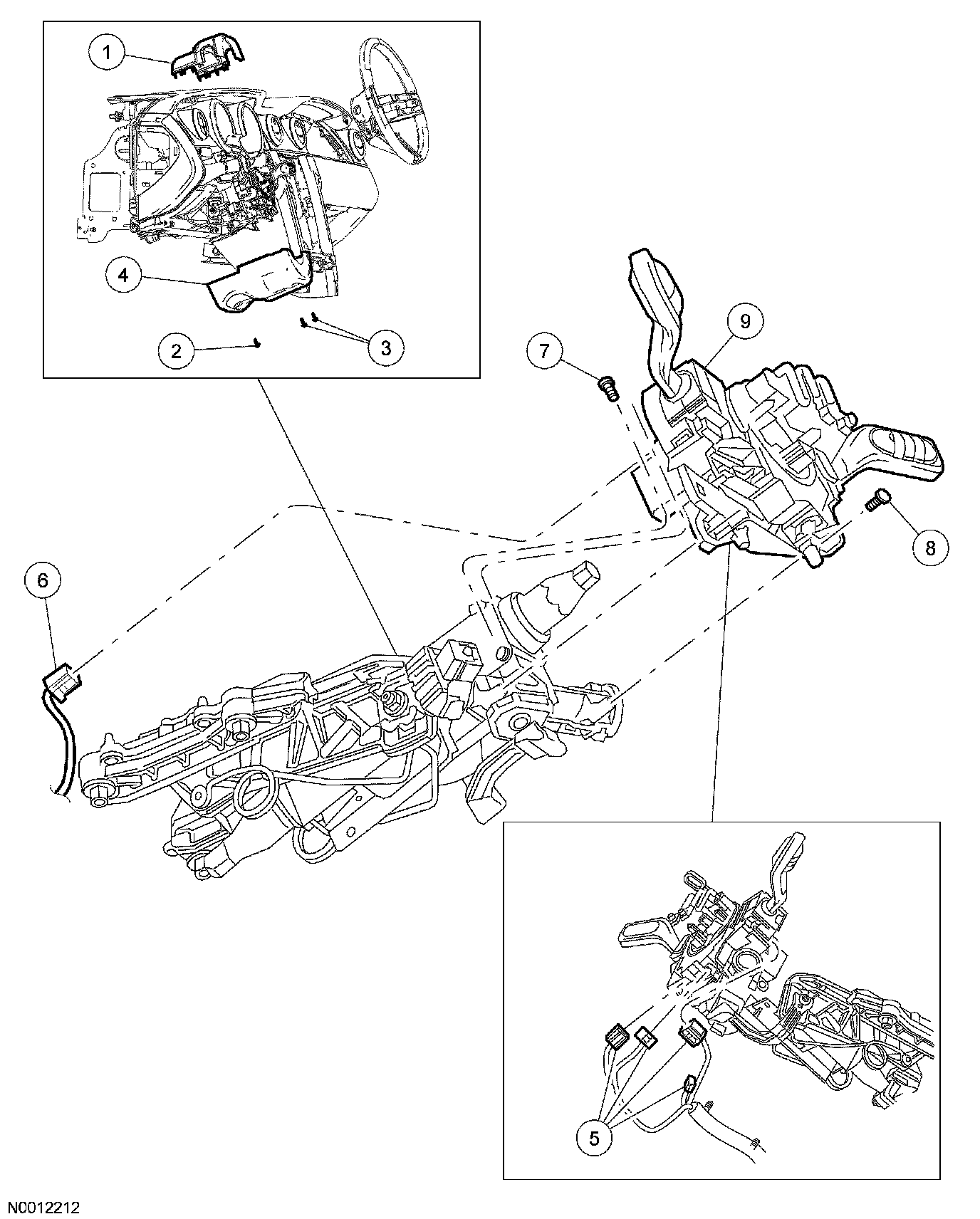

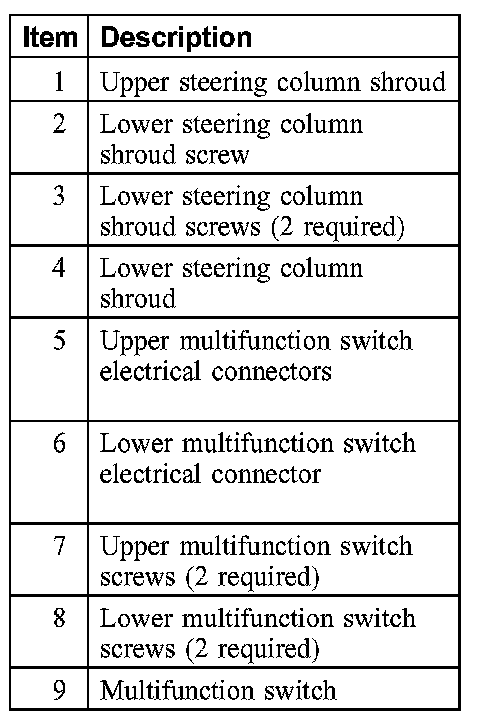

Removal and Installation
1. Remove the steering wheel.
2. Remove the upper steering column shroud by carefully pressing the sides inward.
3. Remove the 3 lower steering column shroud screws and the shroud.
4. Disconnect the 4 lower multifunction switch electrical connectors.
5. Disconnect the upper multifunction switch electrical connector.
6. Remove the 4 screws and the multifunction switch.
7. To install, reverse the removal procedure.
