Power Steering Pump Pulley

Power Steering Pump Pulley

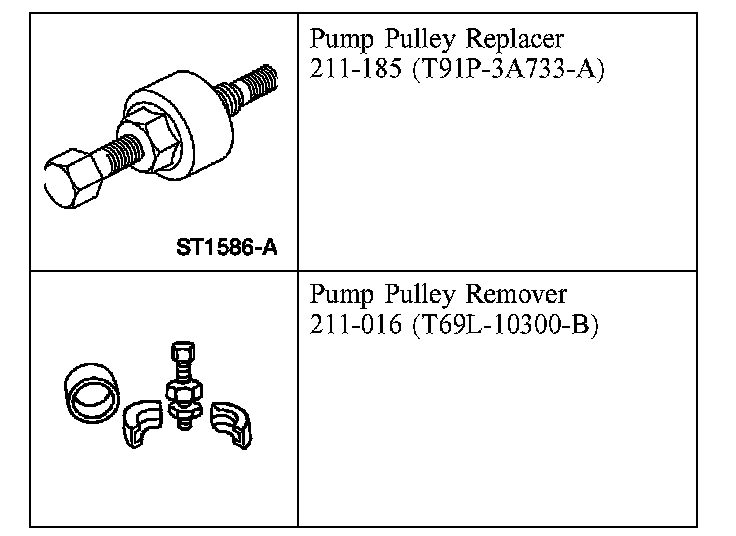

Special Tool(s)

Removal
1. Rotate the tensioner counterclockwise and remove the accessory drive belt from the power steering pump pulley.
2. With the vehicle in NEUTRAL, position it on a hoist.





3. Using the special tool, remove the pulley.

Installation





1. Using the special tool, install the pulley.
^ Inspect the pulley for paint marks in the web area near the hub. If there are 2 paint marks, install a new pulley. If there is no paint or 1 paint mark, use a paint pencil to mark the web area of the pulley near the hub.

2. Rotate the tensioner counterclockwise and install the accessory drive belt to the power steering pump pulley.
