Alternator: Service and Repair

GENERATOR







Removal and Installation

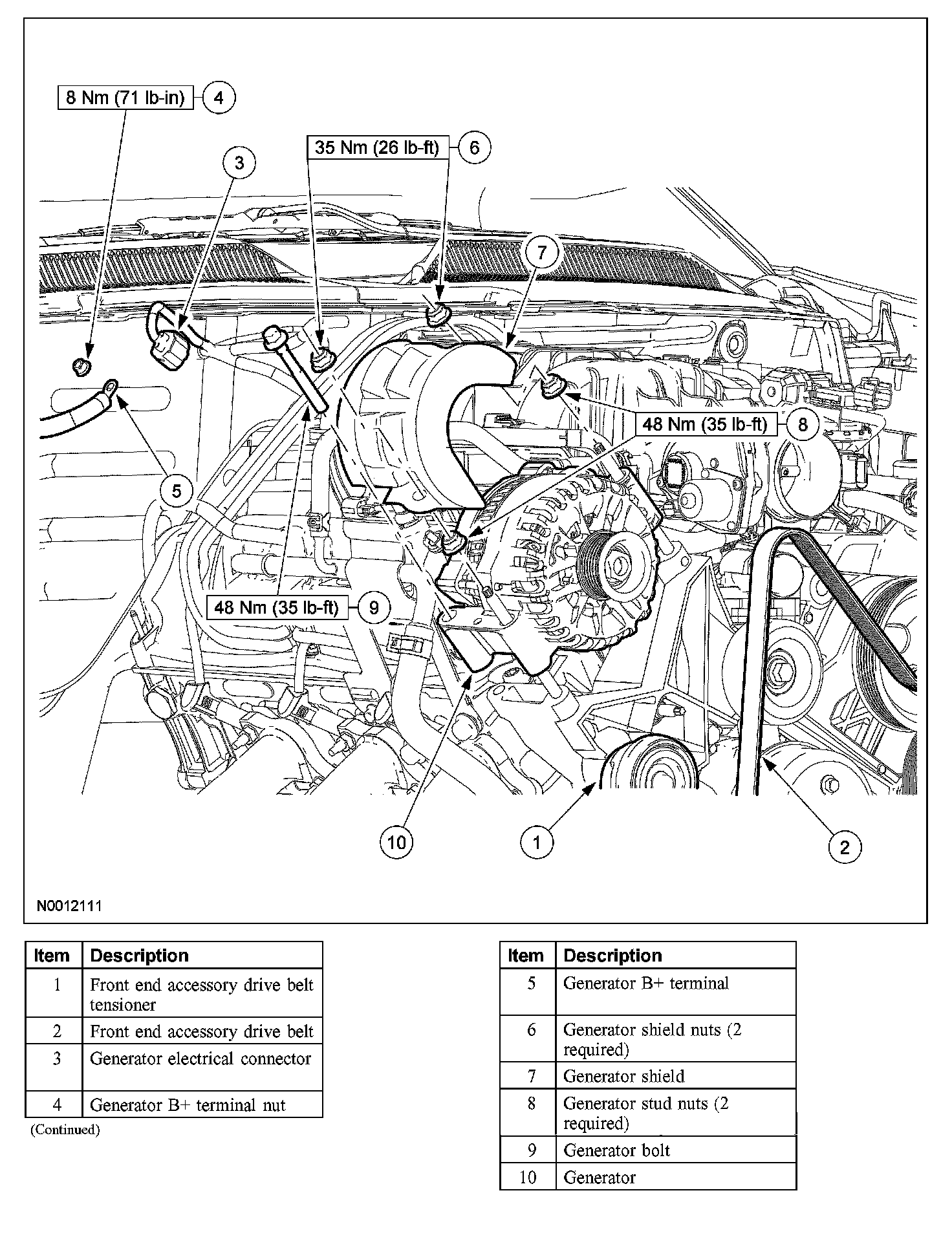

1. Disconnect the battery.
2. Rotate the front end accessory drive belt tensioner counterclockwise and position the front end accessory drive belt aside.
3. Disconnect the generator electrical connector.
4. Position the generator B+ protective boot aside, remove the nut and position the generator B+ terminal aside.
- To install, tighten to 8 Nm (71 lb-in).

5. Remove the 2 nuts and position the generator shield aside.
- To install, tighten to 35 Nm (26 lb-ft).

6. Remove the 2 generator stud nuts.
- To install, tighten to 48 Nm (35 lb-ft).

7. Remove the bolt and the generator.
- To install, tighten to 48 Nm (35 lb-ft).

8. To install, reverse the removal procedure.
