Engine Mount
Cylinder block cradle bolts (inside)

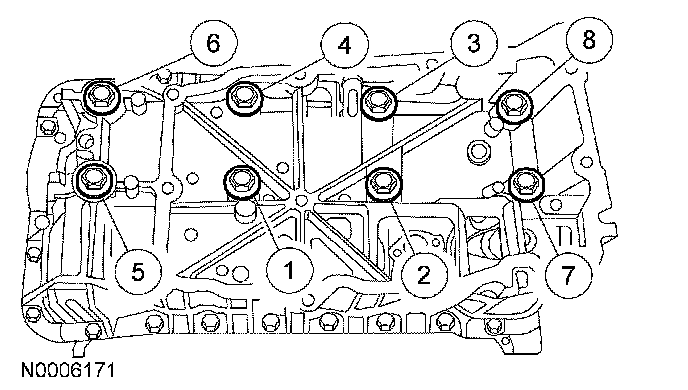

Tighten the 8 inner bolts in the sequence shown in 2 stages.
^
Stage 1: Tighten to 15 Nm (11 ft. lbs.)
^
Stage 2: Tighten to 34 Nm (25 ft. lbs.)
