Safety Belt Retractor - Rear, Convertible

SAFETY BELT RETRACTOR - REAR, CONVERTIBLE







Removal

WARNING: All safety belt assemblies (including retractors, buckles, belt tension sensor [BTS], if equipped, front seat belt buckle support assemblies [slide bar], if equipped, shoulder belt height adjusters, if equipped, child safety seat tether bracket assemblies, if equipped and attaching hardware) should be inspected after any collision. Ford recommends new safety belt assemblies be installed unless a qualified technician finds the assemblies show no damage and operate correctly. Safety belt assemblies not in use during a collision should also be inspected and new assemblies installed if either damage or incorrect operation is noted.

NOTE: Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.

1. Remove the rear seat cushion and backrest.

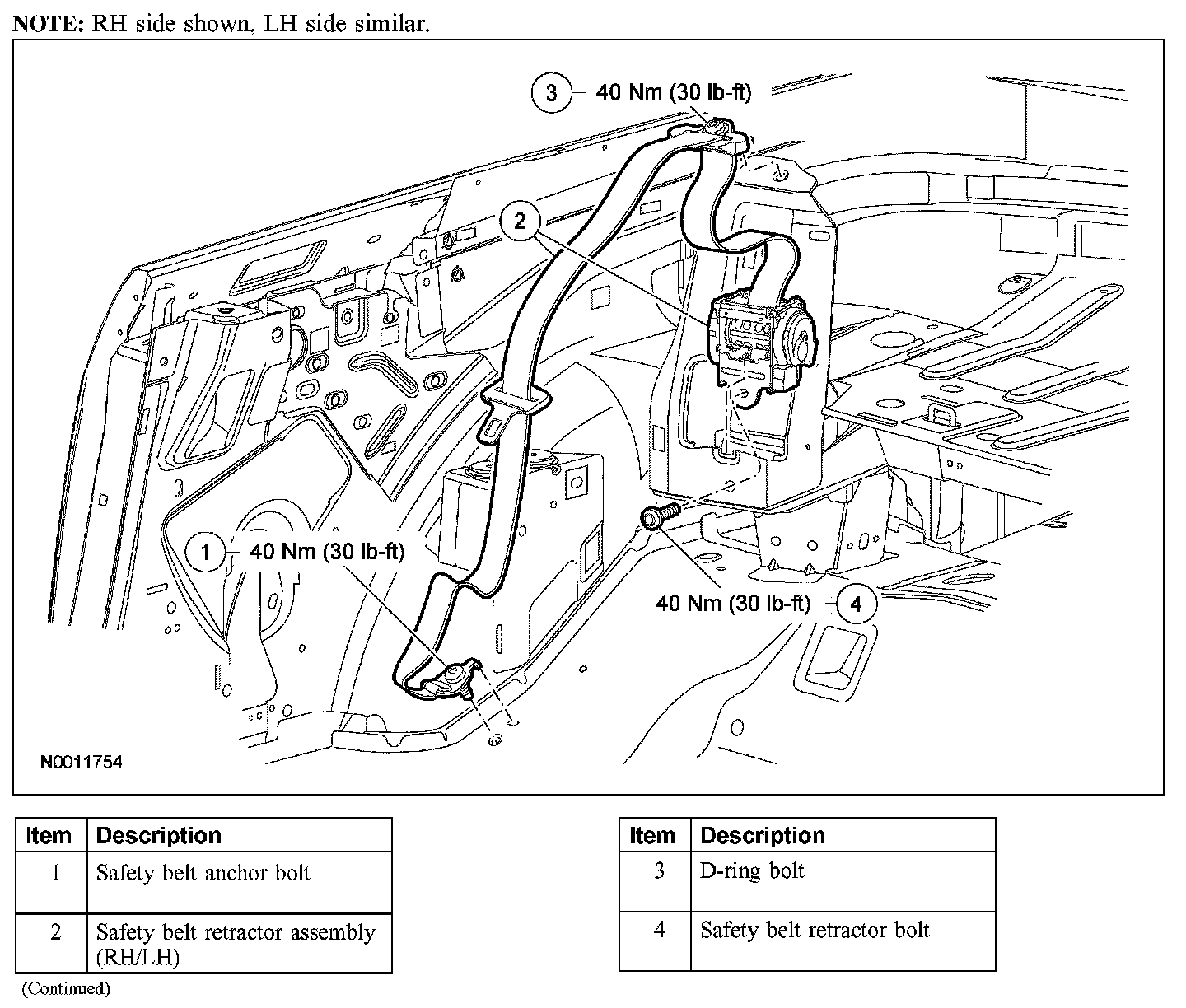

2. Remove the safety belt anchor bolt.
3. Remove the 2 D-ring cover screws and the cover.
4. Remove the D-ring bolt and the D-ring.
5. Remove the bolt and the safety belt retractor.

Installation

CAUTION: The shipping clip on a new retractor must remain attached prior to the installation of the retractor into the vehicle. The clip must be removed after the retractor is installed.

1. Position the safety belt retractor and install the bolt.
- Tighten to 40 Nm (30 lb-ft).

2. NOTE: Make sure the D-ring and belt move freely after installing.

Position the D-ring and install the bolt.
- Tighten to 40 Nm (30 lb-ft).

3. Position the D-ring cover and install the 2 screws.

4. NOTE: The anti-rotation tab must be correctly aligned for correct installation.

Install the safety belt anchor and bolt.
- Tighten to 40 Nm (30 lb-ft).

5. Install the rear seat backrest and cushion.
6. Check the active restraint system for correct operation.
