Canister Purge Control Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER PURGE VALVE







Removal and Installation

WARNING:
- The evaporative emission system contains fuel vapor and condensed fuel vapor. Although not in large quantities, it still presents the danger of explosion or fire. Disconnect the battery ground cable from the battery to minimize the possibility of an electrical spark occurring, possibly causing a fire or explosion if fuel vapor or liquid fuel is present in the area. Failure to follow these instructions may result in personal injury.
- Do not smoke or carry lighted tobacco or open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions can result in personal injury.
- Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions can result in personal injury.

1. Disconnect the battery ground cable.

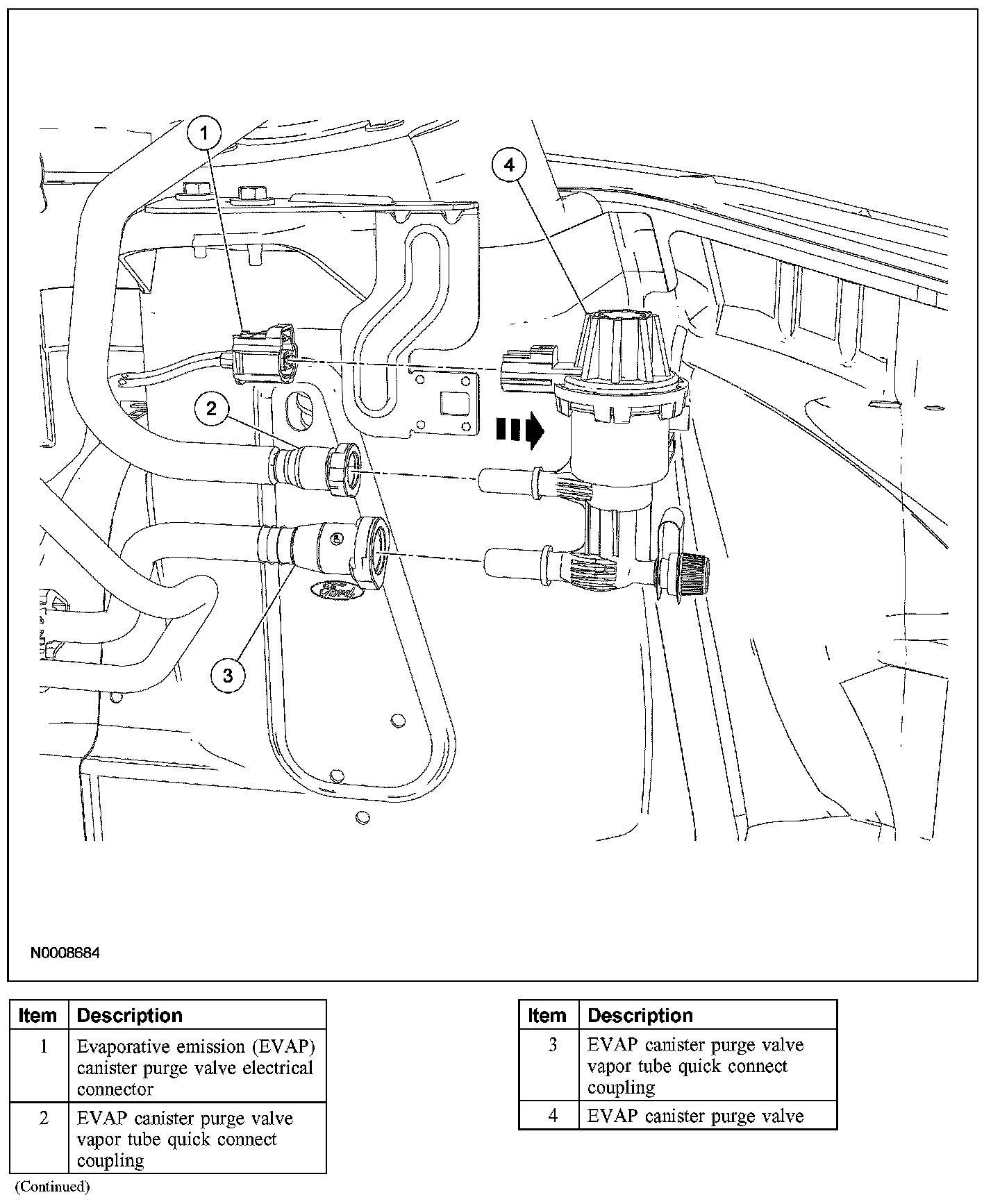

2. Disconnect the evaporative emission (EVAP) canister purge valve electrical connector.
3. Disconnect the 2 EVAP canister purge valve vapor tube quick connect couplings.

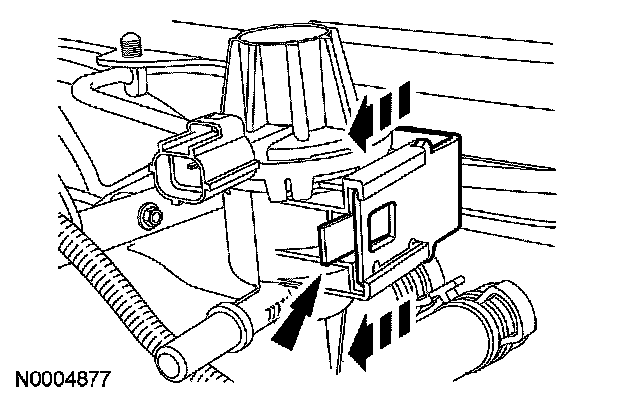

4. Depress the release tab and remove the EVAP canister purge valve from the mounting bracket.
5. To install, reverse the removal procedure.
6. Carry out the evaporative emission system leak test. Evaporative Emission System Leak Test
7. Carry out the evaporative emission repair verification drive cycle. Evaporative Emission Repair Verification Drive Cycle
