Home >> Ford >> 2005 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Park / Turn / Stop Lamps >> LH Front Parking/Turn Lamp C1023

LH Front Parking/Turn Lamp C1023

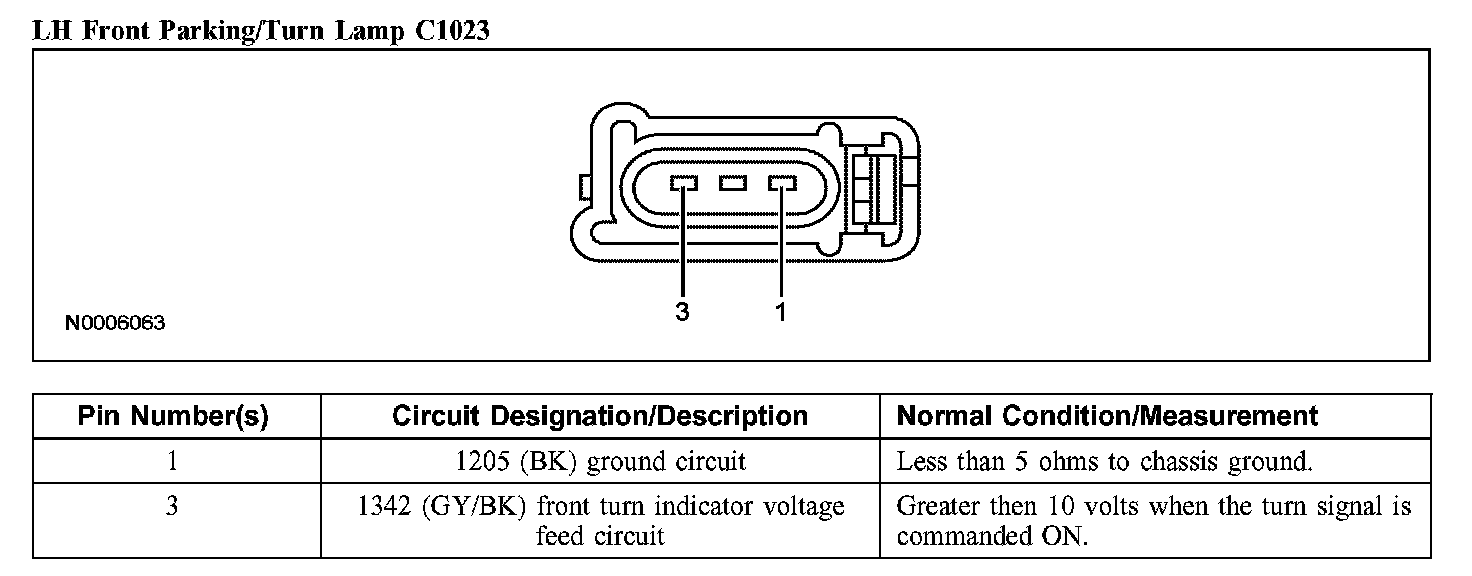

LH Front Parking/Turn Lamp C1023:
