FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM: Car repair manuals for everyone.
Home >> Ford >> 2005 >> Mustang V6-4.0L VIN N >> Repair and Diagnosis >> Lighting and Horns >> Parking Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> RH Rear Lamp 3 C415

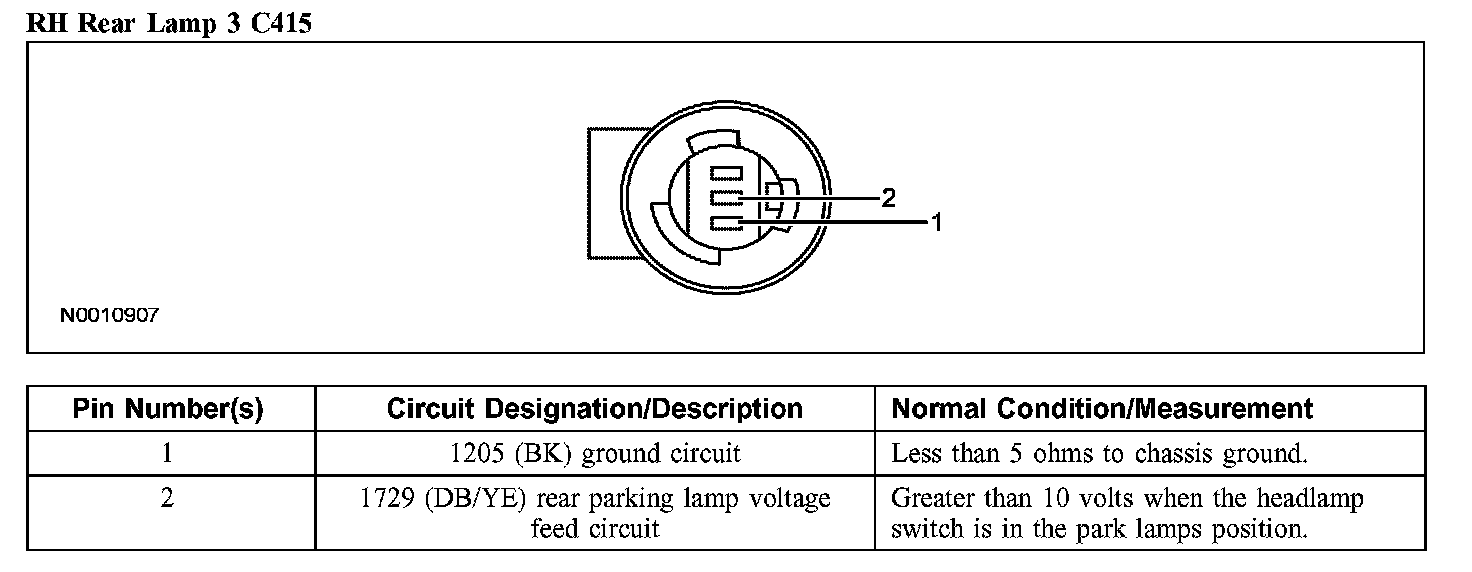

RH Rear Lamp 3 C415

RH Rear Lamp 3 C415:
