Home
>>
Ford
>>
2005
>>
Mustang V6-4.0L VIN N
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Brake Lamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Connector Circuit Reference
>>

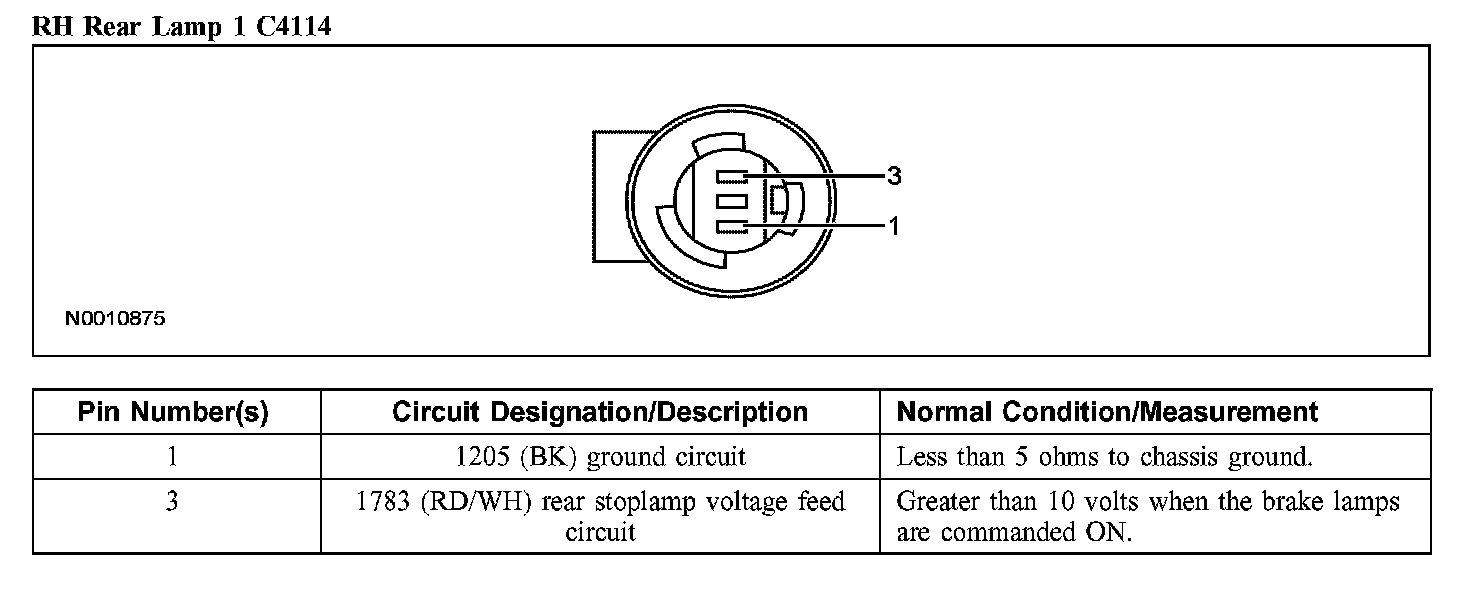

RH Rear Lamp 1 C4114
RH Rear Lamp 1 C4114
RH Rear Lamp 1 C4114:
