Test R: The Air Bag Warning Indicator Is Never/Always On

PINPOINT TEST R: THE AIR BAG WARNING INDICATOR IS NEVER/ALWAYS ON

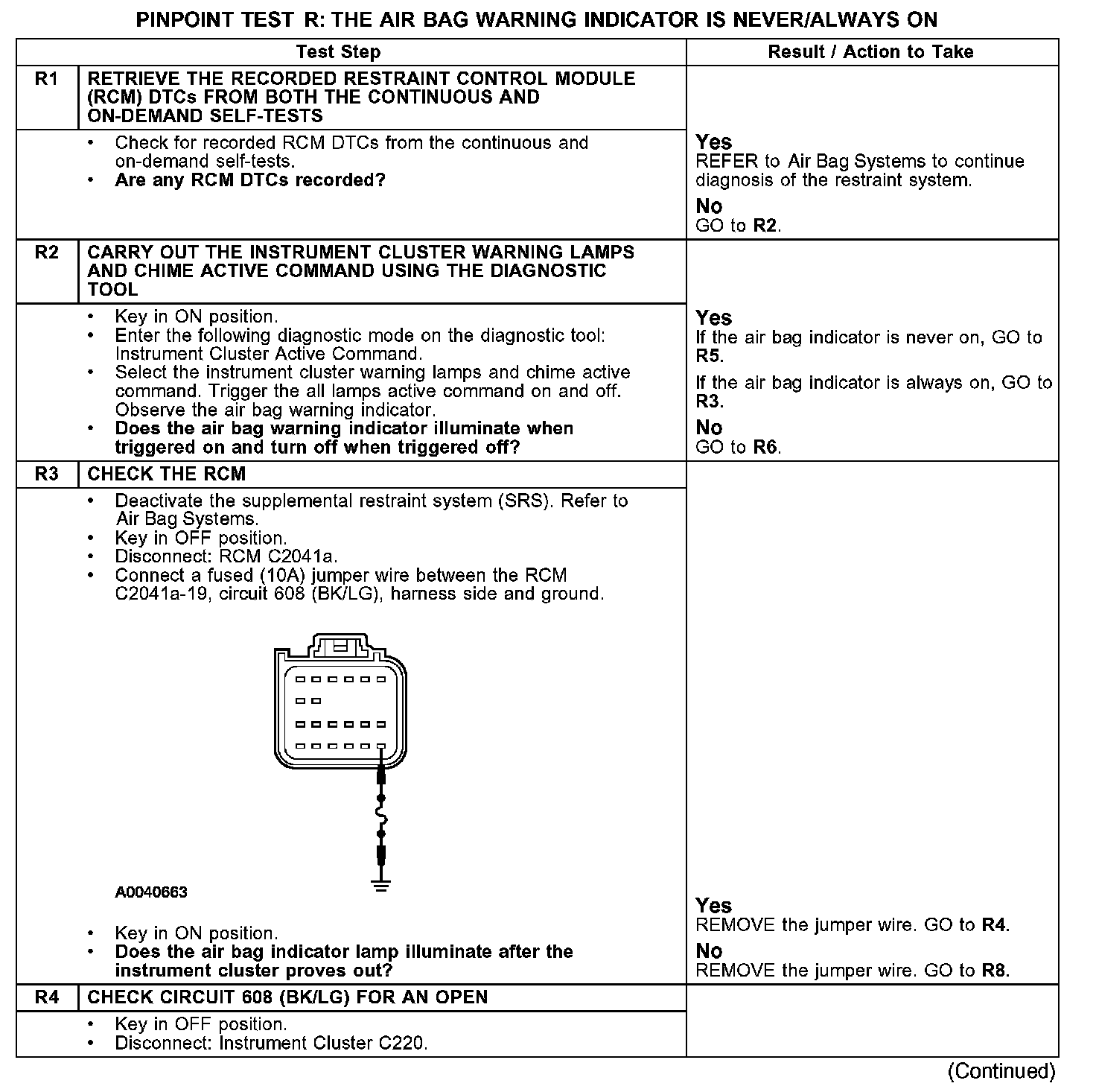

R1-R4:

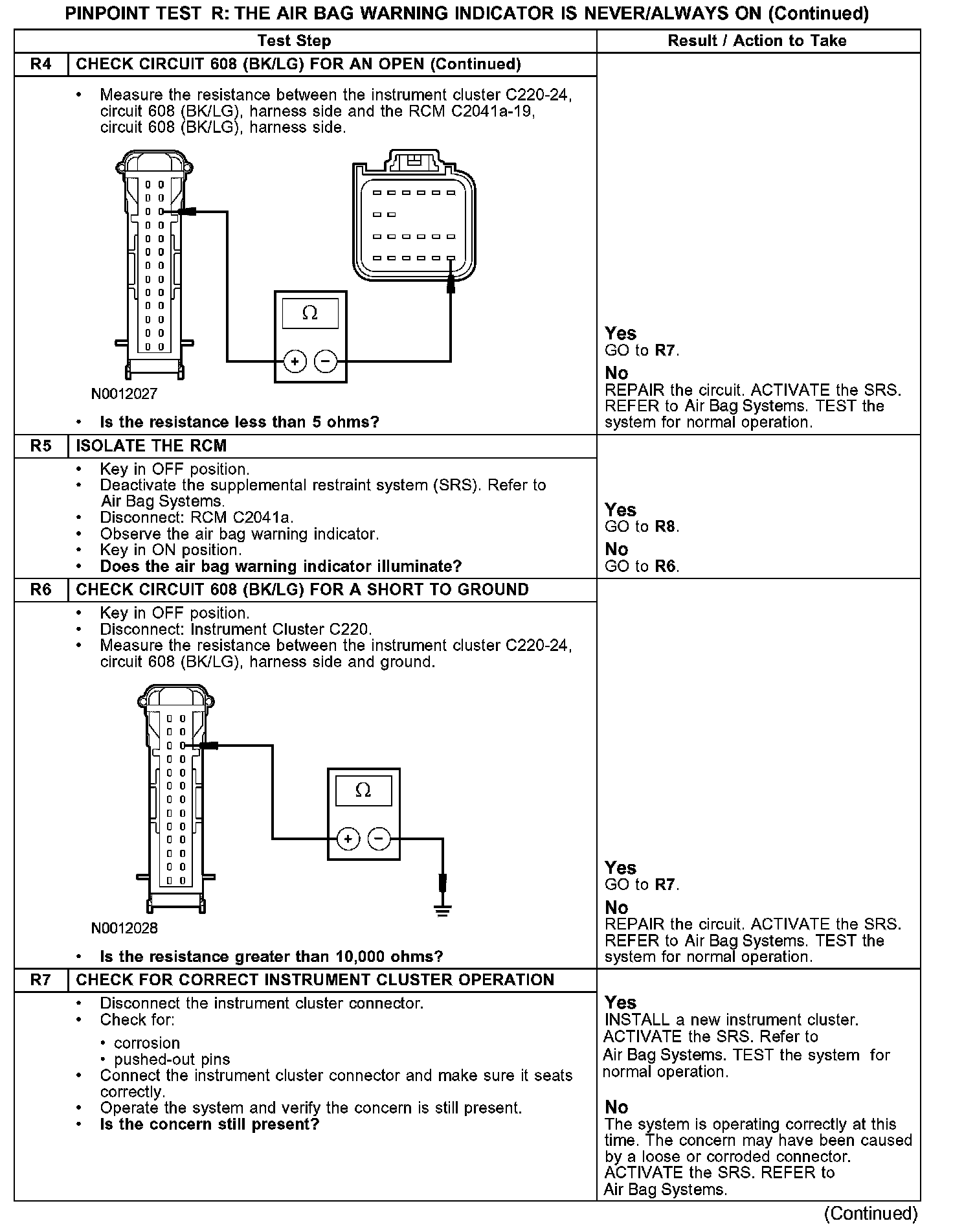

R4-R7:

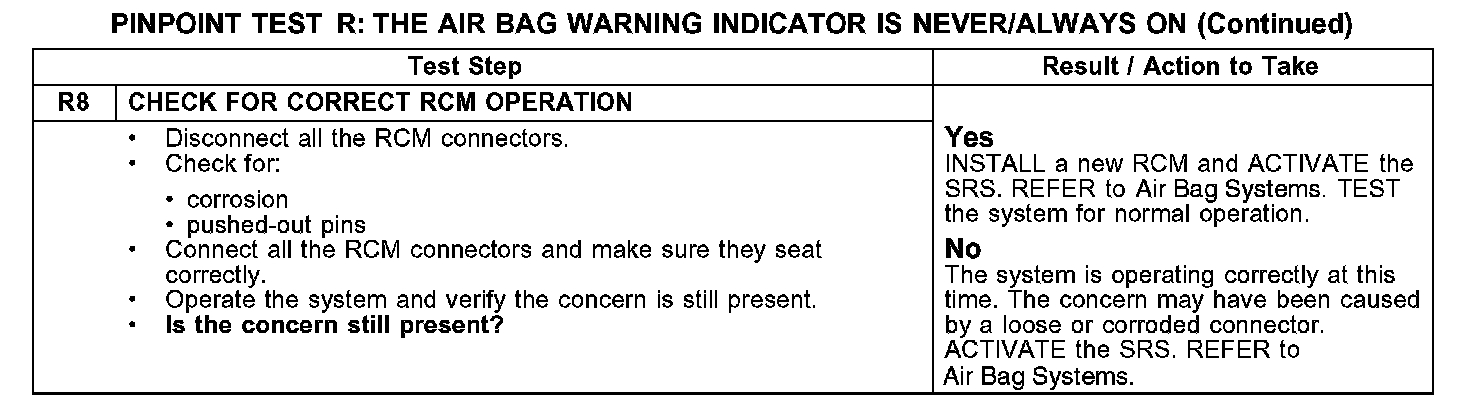

R8:

Normal Operation
The air bag warning indicator provides an indication that there is a restraints system problem and the air bag may be inoperable or have degraded performance. If the instrument cluster does not receive the restraint control command over circuit 608 (BK/YE), the instrument cluster illuminates the air bag warning indicator.

Possible Causes
- circuit 608 (BK/LG) open or short to ground
- restraint control module (RCM)
- instrument cluster
