Mustang V6-4.0L VIN N
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster and Panel Illumination
>>
Connector Circuit Reference
>>
Window Control Switch
>>

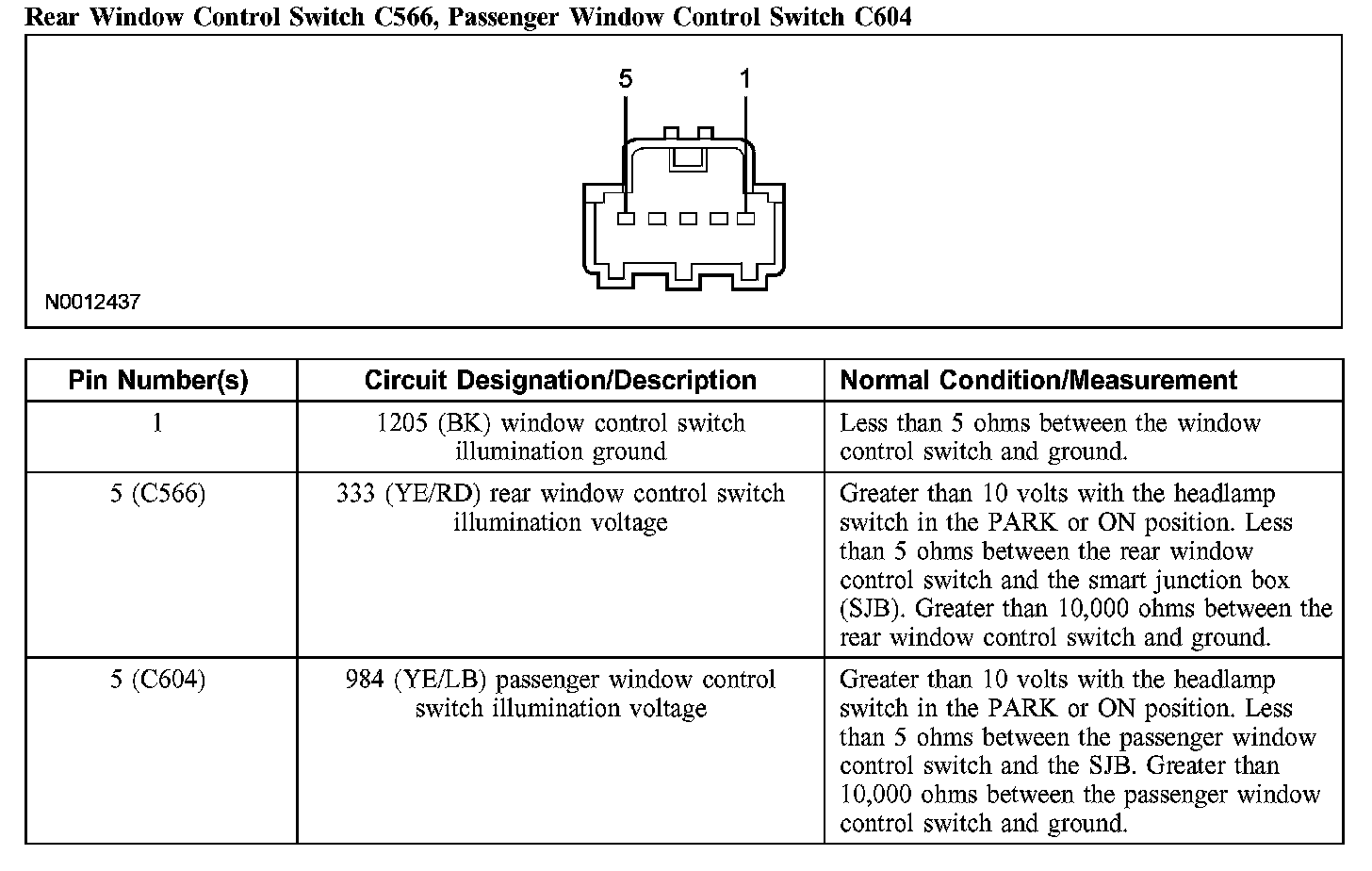

Rear Window Control Switch C566, Passenger Window Control Switch C604
Rear Window Control Switch C566, Passenger Window Control Switch C604
Rear Window Control Switch C566, Passenger Window Control Switch C604:
