PLENUM CHAMBER






Removal and Installation

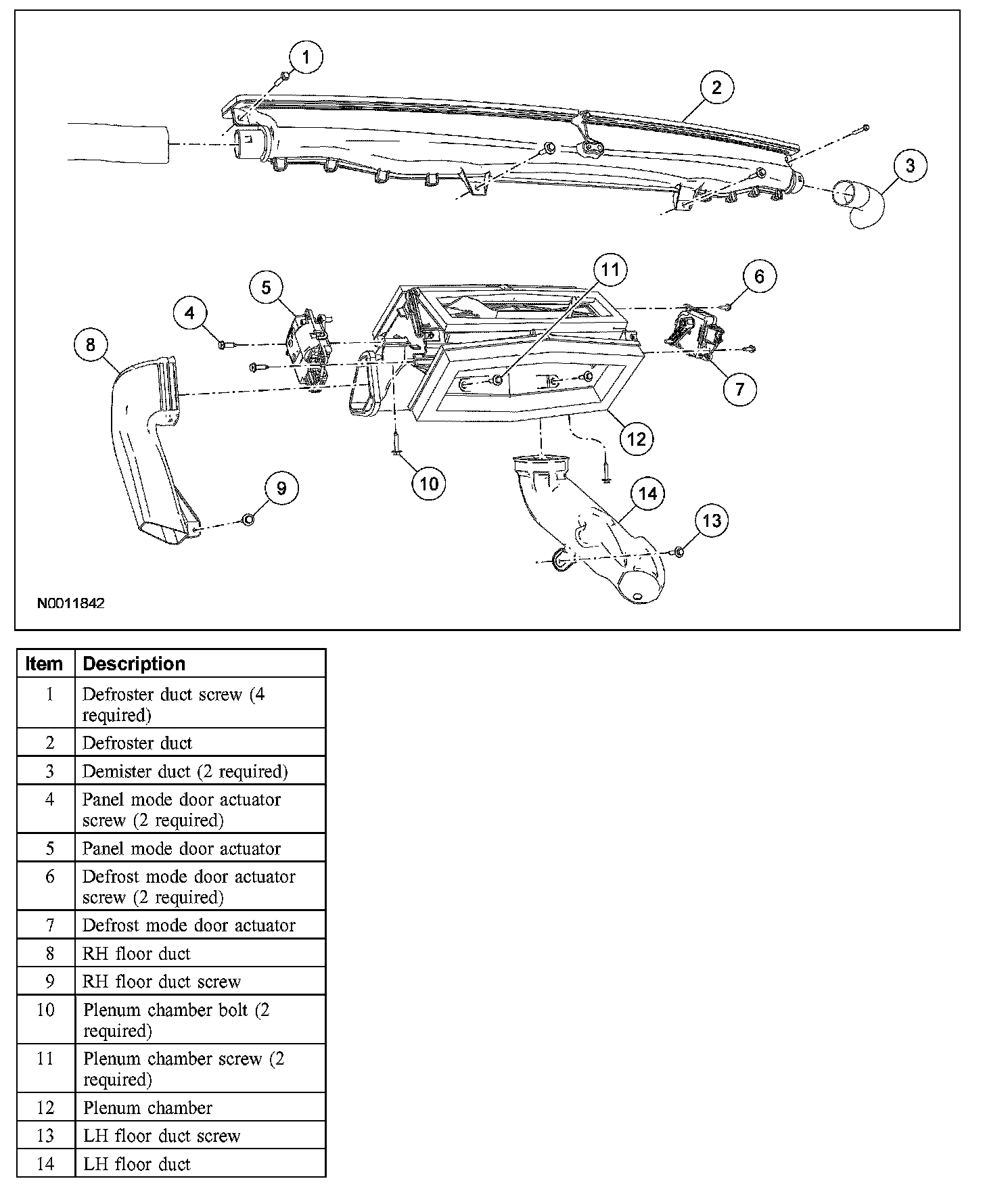

1. Remove the instrument panel. Refer to: Body and Frame, Interior Moulding/Trim, Dashboard/Instrument Panel, Service and Repair, Instrument Panel, Instrument Panel

2. Remove the RH floor duct screws and the RH floor ducts.
3. Remove the LH floor duct screws and the LH floor ducts.
4. Remove the 4 defroster duct screws.
5. Detach the 2 demister ducts from the defroster duct.
6. Remove the defroster duct.
7. Remove the 2 defrost mode door actuator screws and position the defrost mode door actuator aside.
8. Remove the 2 panel mode door actuator screws and position the panel mode door actuator aside.
9. Remove the 2 plenum chamber bolts.
10. Remove the 2 plenum chamber screws.
11. Remove the plenum chamber.
12. To install, reverse the removal procedure.
