Exhaust Manifold RH

Exhaust Manifold RH








Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.

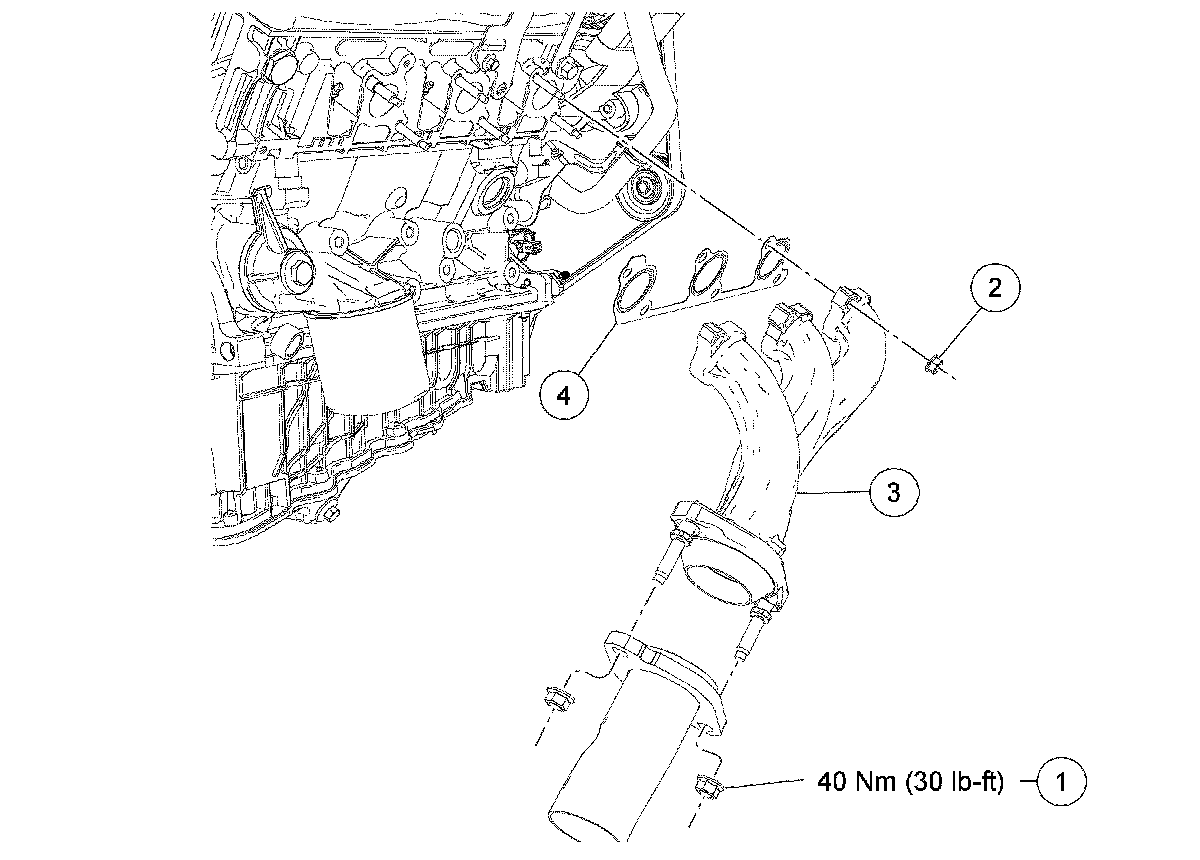

2. Remove the 2 catalytic converter to exhaust manifold nuts.
^ To install, tighten to 40 Nm (30 ft. lbs.).
3. Remove the nuts, the RH exhaust manifold and the gasket.
^ To install, tighten to 23 Nm (17 ft. lbs.).
^ Discard the gasket.

4. NOTE: Install a new RH exhaust manifold gasket. To install, reverse the removal procedure.
