Hydraulic Chain Tensioner, RH

Timing Drive Components Hydraulic Chain Tensioner, RH

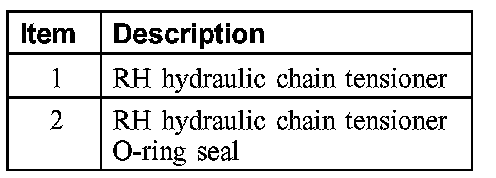

Material








Removal and Installation
1. Remove the RH hydraulic chain tensioner
^ To install, tighten to 44 Nm (32 ft. lbs.).

2. NOTE: Lubricate the new O-ring seal with clean engine oil.

Remove and discard the O-ring seal.
3. To install, reverse the removal procedure.
