Mustang V6-4.0L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Exhaust System
Exhaust System
Exhaust System
Exploded View
Exhaust System
- 4.0L

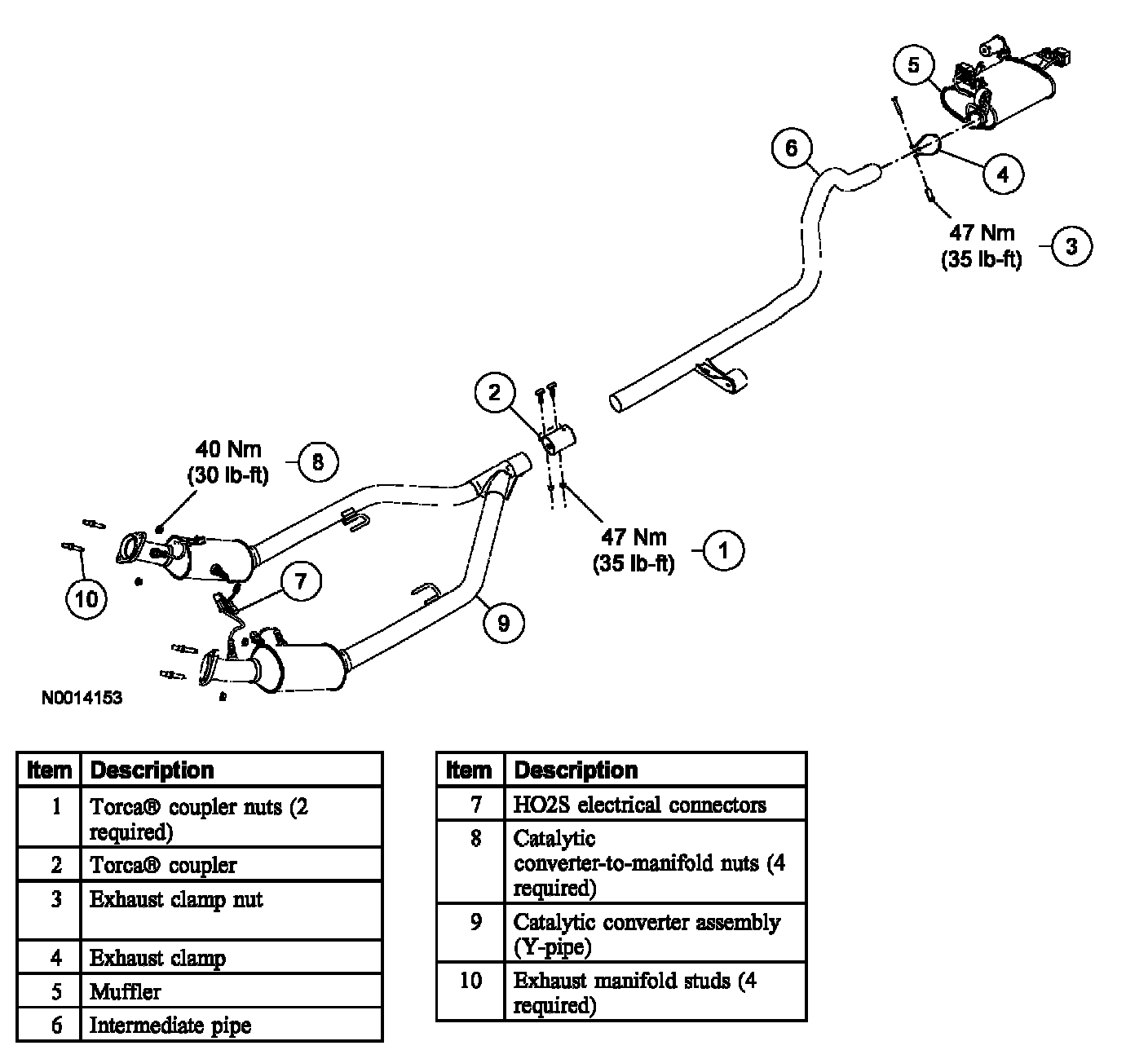

Exhaust System
4.6L
