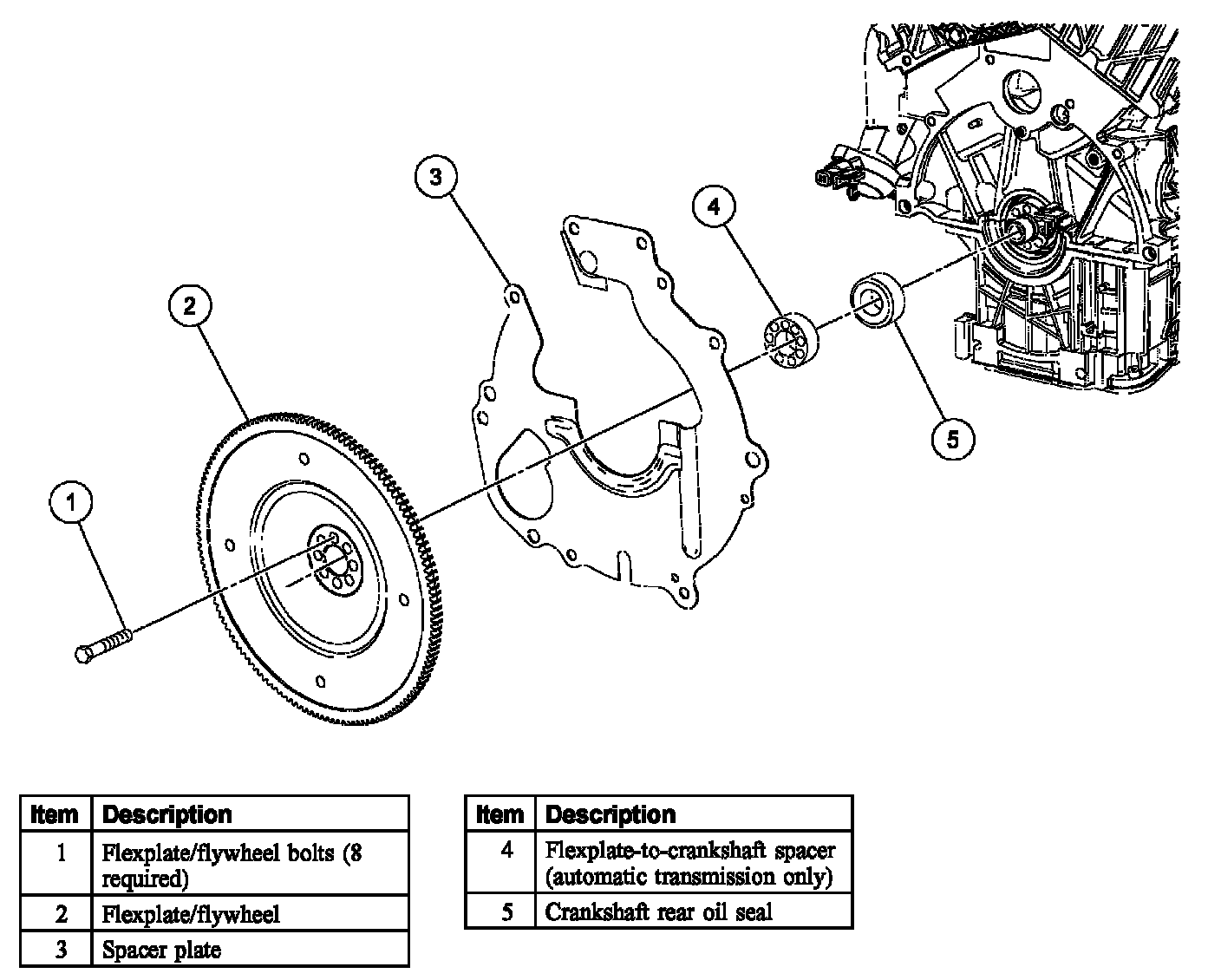

Lower End Components Exploded View, Flexplate, Flywheel and Crankshaft Rear Oil seal

Lower End Components Exploded View, Flexplate, Flywheel and Crankshaft Rear Oil Seal





NOTE: Flexplate shown flywheel similar.
